DPA 4066-OP-A-C34-LH

MPN #4066-OP-A-C34-LH

$1176.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

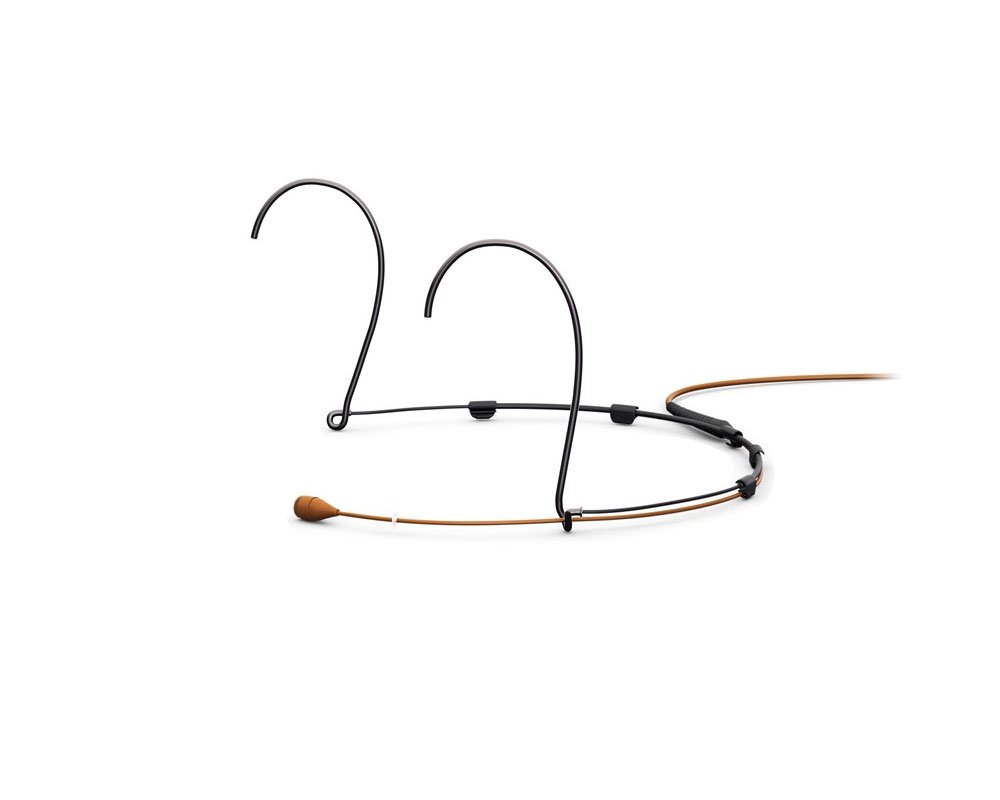

d:fine CORE 4066 omnidirectional headset mic, brown, mini-jack connector included

The 4066-OP-A-C34-LH is a brown CORE+ omnidirectional headset microphone equipped with a standard mini-jack connector, designed to deliver premium audio performance for wireless systems with 1/8" (3.5mm) inputs. Its discreet brown finish makes it ideal for stage actors, speakers, or on-camera talent who need a visually subtle yet sonically exceptional microphone.

With DPA's CORE+ technology at its core, this microphone offers superior clarity and an expansive dynamic range, capturing every nuance of speech and vocals with minimal distortion-even at high sound pressure levels. The dual-ear headset provides a secure, comfortable fit, while the flexible boom arm allows positioning on either side. Built for demanding environments, the 4066-OP-A-C34-LH features a double-vent protection system and water-resistant construction, making it a reliable choice for live performances, presentations, and productions.

Features

High-Quality Omnidirectional Sound: Captures voice naturally and clearly, ideal for presentations, performances, and live events.

CORE+ Technology Built-In: Delivers low-distortion audio with excellent headroom and dynamic range.

Mini-Jack Connector: Compatible with wireless systems that use a standard 1/8" (3.5mm) input.

Sweat-Resistant and Durable: Double-vent protection and moisture-resistant materials ensure reliable performance.

Flexible Mic Boom Placement: Detachable boom arm can be worn on either side for user comfort.

Discreet Brown Appearance: Blends easily into skin tones for low-visibility use on stage or on camera.

Specifications

Model

4066-OP-A-C34-LH

Microphone Type

Omnidirectional headset microphone

Pressure operation principle

Pre polarized condenser capsule

Frequency Response

20Hz to 20kHz

Soft boost grid 40Hz to 20kHz with 3dB boost at 8 to 20kHz

High boost grid 40Hz to 20kHz with 10dB boost at 12kHz

Sensitivity and Noise

Sensitivity 6mV per Pa minus 44dB re 1V per Pa

Equivalent noise level A weighted typically 26dB A max 28dB A

Equivalent noise level ITU R BS.468 4 typically 38dB max 40dB

Distortion and SPL Handling

THD less than 0.5 percent up to 133dB SPL RMS 136dB SPL peak

THD less than 1 percent up to 136dB SPL RMS 139dB SPL peak

Max SPL at 10 percent THD 144dB SPL peak

Dynamic range typically 111dB

Impedance and Connectivity

Rated output impedance 30 to 40 ohms

Cable drive capability up to 300 meters with DAD6001 BC XLR adapter

Connector type Mini Jack

Power Requirements

Wireless systems 5V to 10V through DPA adapter

With DAD6001 BC P48 phantom power or will work from 12V

Current consumption typically 1.5mA microphone 3.5mA with DAD6001 BC

Physical Specifications

Weight 14 grams including cable and connector

Microphone diameter: 5.4mm

Cable length: 1.2 meters

Cable diameter: 1.6mm

Color: brown

Environmental

Temperature range minus 40 to 45 degrees Celsius

Relative humidity up to 90 percent

Design Features

Detachable mic boom for left or right side configuration

Double vent protection system with drop stopper

Water resistant internal construction

CORE plus technology for distortion neutralization across dynamic range

Microphone polarity positive pressure gives positive voltage on Mini Jack pin
