DPA 4066-OP-A-C10-LH
MPN #4066-OP-A-C10-LH

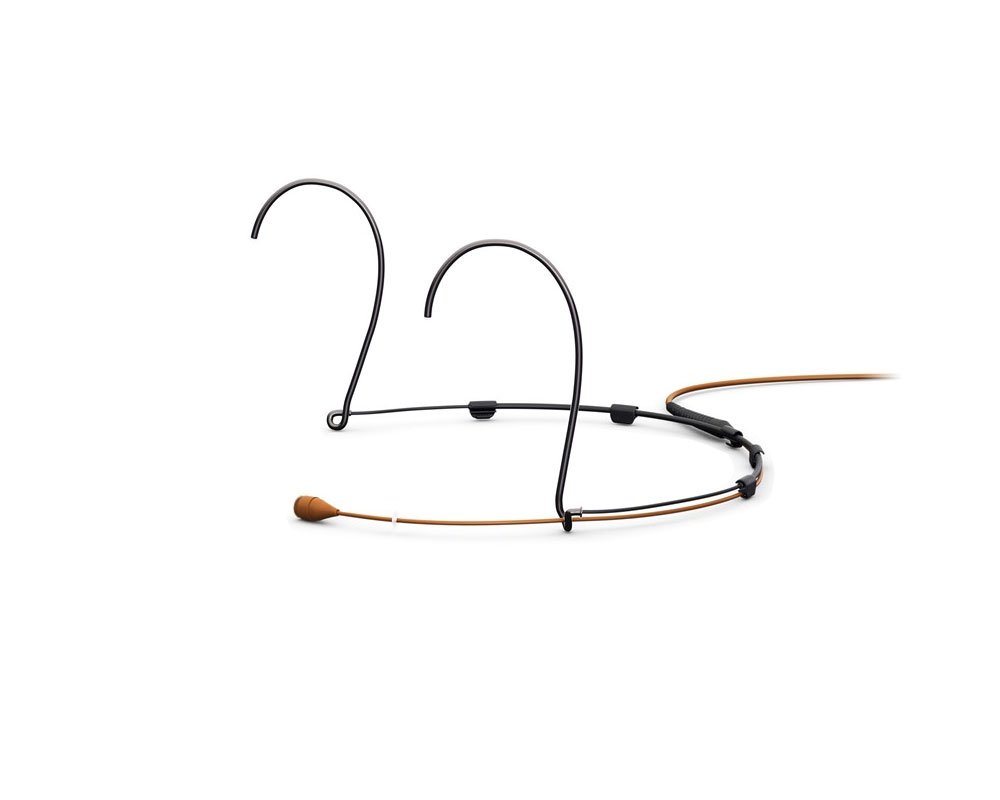

d:fine CORE 4066 omnidirectional headset mic, brown, TA4F Mini-XLR connector included
The 4066-OP-A-C10-LH is a brown CORE+ omnidirectional headset microphone with a TA4F Mini-XLR connector, expertly crafted for use with wireless systems in theater, broadcast, and live event applications. Its subtle color and low-profile design make it ideal for performers or presenters needing a discreet, high-performance microphone solution that blends naturally on stage or on camera.
Featuring DPA's CORE+ technology, this mic delivers exceptional audio clarity and preserves vocal detail across a wide dynamic range, handling up to 144 dB SPL without distortion. The flexible headset fits securely and comfortably, while the mic boom can be adjusted for left or right placement. With its moisture-resistant construction and double-vent protection system, the 4066-OP-A-C10-LH offers long-lasting reliability, even in challenging environments with high humidity or physical activity.
Features
Crystal-Clear Vocal Pickup: Delivers natural, detailed sound ideal for speech, performance, and broadcast.CORE+ Audio Technology: Ensures low distortion and a wide dynamic range for consistent professional quality.TA4F Mini-XLR Connector: Offers secure and compatible connection with wireless systems using TA4F input.Sweat and Moisture Protection: Built with a double-vent system and water-resistant components for high reliability.Reversible Boom Placement: Mic boom detaches and reattaches on either side for customizable fit and positioning.Low-Visibility Brown Finish: Designed to blend subtly for use in theater, live events, and on-camera settings.
Specifications
Model
4066-OP-A-C10-LH
Microphone Type
Omnidirectional headset microphonePressure operation principlePre polarized condenser capsule
Frequency Response
20Hz to 20kHzSoft boost grid 40Hz to 20kHz with 3dB boost at 8 to 20kHzHigh boost grid 40Hz to 20kHz with 10dB boost at 12kHz
Sensitivity and Noise
Sensitivity 6mV per Pa minus 44dB re 1V per PaEquivalent noise level A weighted typically 26dB A max 28dB AEquivalent noise level ITU R BS.468 4 typically 38dB max 40dBDistortion and SPL HandlingTHD less than 0.5 percent up to 133dB SPL RMS 136dB SPL peakTHD less than 1 percent up to 136dB SPL RMS 139dB SPL peakMax SPL at 10 percent THD 144dB SPL peakDynamic range typically 111dB
Impedance and Connectivity
Rated output impedance 30 to 40 ohmsCable drive capability up to 300 meters with DAD6001 BC XLR adapterConnector type TA4F Mini XLR
Power Requirements
Wireless systems 5V to 10V through DPA adapterWith DAD6001 BC P48 phantom power or will work from 12VCurrent consumption typically 1.5mA microphone 3.5mA with DAD6001 BC
Physical Specifications
Weight 14 grams including cable and connectorMicrophone diameter: 5.4mmCable length: 1.2 metersCable diameter: 1.6mmColor: brown
Environmental
Temperature range minus 40 to 45 degrees CelsiusRelative humidity up to 90 percent
Design Features
Detachable mic boom for left or right side configurationDouble vent protection system with drop stopperWater resistant internal constructionCORE plus technology for distortion neutralization across dynamic rangeMicrophone polarity positive pressure gives positive voltage on TA4F pin
