DPA 4066-OP-A-C03-LH
MPN #4066-OP-A-C03-LH

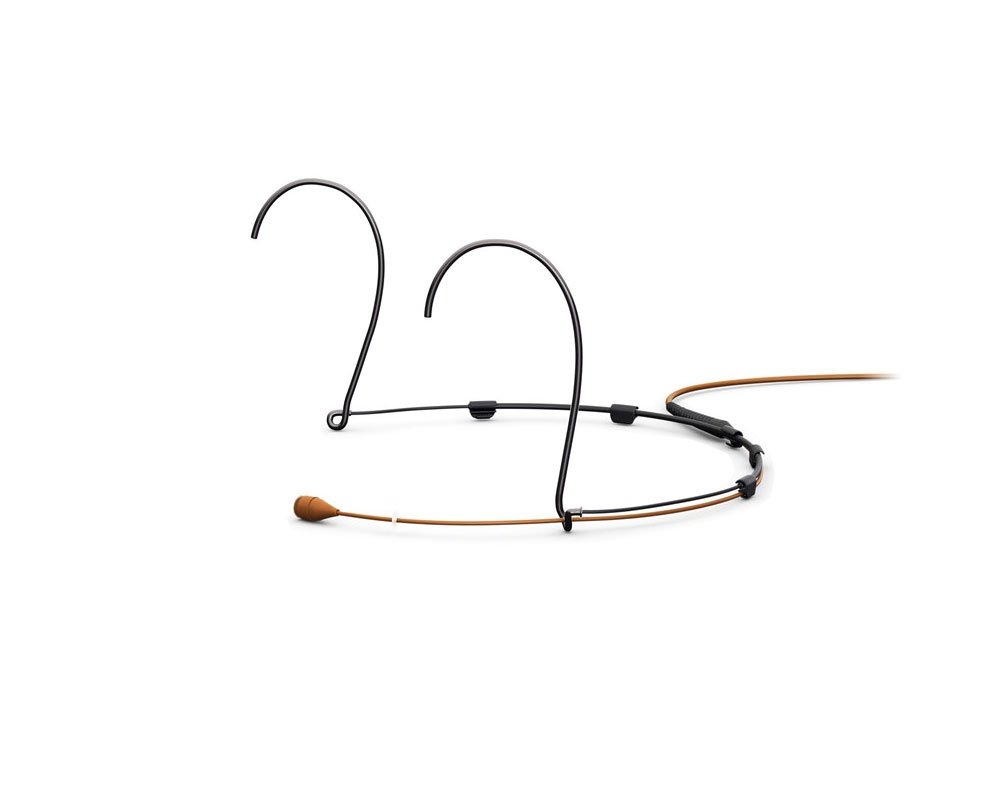

d:fine CORE 4066 omnidirectional headset mic, brown, 3-pin LEMO connector included
The 4066-OP-A-C03-LH is a brown CORE+ omnidirectional headset microphone featuring a 3-pin LEMO connector, tailored for use with high-end wireless systems in theatrical, broadcast, and live presentation environments. Its discreet brown finish blends naturally with a range of skin tones, making it ideal for on-stage talent or presenters seeking a near-invisible audio solution.
Built with DPA's advanced CORE+ technology, this microphone captures vocals with outstanding clarity and dynamic precision, significantly reducing distortion across the entire frequency range. The adjustable, dual-ear headset ensures a stable and comfortable fit, with the mic boom easily switchable to either side for optimal positioning. Engineered for resilience, the 4066-OP-A-C03-LH features a double-vent protection system and water-resistant internal materials-ensuring consistent performance even in humid or high-energy scenarios.
Features
Accurate, Natural Sound: Captures voice with clarity and balance, ideal for live and spoken-word applications.CORE+ Technology Included: Enhances dynamic range and reduces distortion for clean, professional audio.3-Pin LEMO Connector: Provides a secure connection with compatibility for professional wireless systems.Moisture-Resistant Design: Double-vent protection and water-resistant materials ensure reliable performance under humidity and sweat.Adjustable and Reversible Boom Arm: Mic boom can be placed on either side to suit personal comfort and placement needs.Discreet Brown Finish: Blends subtly into skin tones for on-stage or on-camera use in theatrical and presentation environments.
Specifications
Model
4066-OP-A-C03-LH
Microphone Type
Omnidirectional headset microphonePressure operation principlePre polarized condenser capsule
Frequency Response
20Hz to 20kHzSoft boost grid 40Hz to 20kHz with 3dB boost at 8 to 20kHzHigh boost grid 40Hz to 20kHz with 10dB boost at 12kHz
Sensitivity and Noise
Sensitivity 6mV per Pa minus 44dB re 1V per PaEquivalent noise level A weighted typically 26dB A max 28dB AEquivalent noise level ITU R BS.468 4 typically 38dB max 40dB
Distortion and SPL Handling
THD less than 0.5 percent up to 133dB SPL RMS 136dB SPL peakTHD less than 1 percent up to 136dB SPL RMS 139dB SPL peakMax SPL at 10 percent THD 144dB SPL peakDynamic range typically 111dB
Impedance and Connectivity
Rated output impedance 30 to 40 ohmsCable drive capability up to 300 meters with DAD6001 BC XLR adapterConnector type 3 pin LEMO
Power Requirements
Wireless systems 5V to 10V through DPA adapterWith DAD6001 BC P48 phantom power or will work from 12VCurrent consumption typically 1.5mA microphone 3.5mA with DAD6001 BC
Physical Specifications
Weight 14 grams including cable and connectorMicrophone diameter: 5.4mmCable length: 1.2 metersCable diameter: 1.6mmColor: brown
Environmental
Temperature range minus 40 to 45 degrees CelsiusRelative humidity up to 90 percent
Design Features
Detachable mic boom for left or right side configurationDouble vent protection system with drop stopperWater resistant internal constructionCORE plus technology for distortion neutralization across dynamic rangeMicrophone polarity positive pressure gives positive voltage on LEMO pin
