DPA 4063-OC-C-B00
UPC/EAN #5713055011734
MPN #4063-OC-C-B00

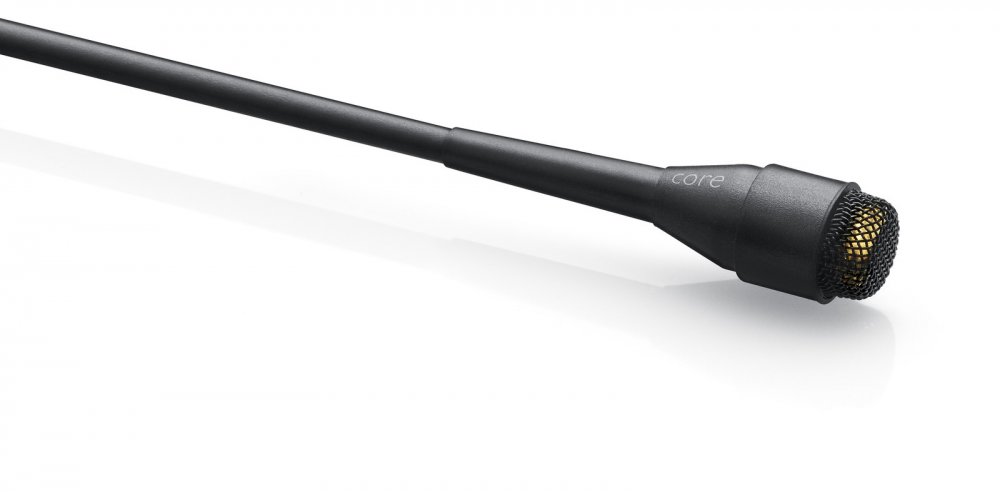

d:screet Core 4063 miniature omnidirectional microphone, loud SPL & low DC, black, MicroDot Connector, no adapter included
The 4063-OC-C-B00 is designed to capture loud sound sources and for use with transmitters giving only 3V bias voltage. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage and instrument applications as well.
The d:screet Core 4063 includes interchangeable capsule protection grids that alter the signal character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.
With an SPL rating of 138 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4063 can be powered via +48V phantom power and features a microdot output connector, compatible with various wireless microphone transmitters, adapters or power supplies with standard XLR outputs.
Features
For Stage and TelevisionHardwired MicroDot ConnectorLoud SPL and Low DCCore Increases Mic Performance by 12 dBRugged and reliableNatural audio qualityLow-noise and high sensitivityLarge selection of accessories
Specifications
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range - CORE: Typ. 106 dB
Max. SPL, peak before clipping: 154 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

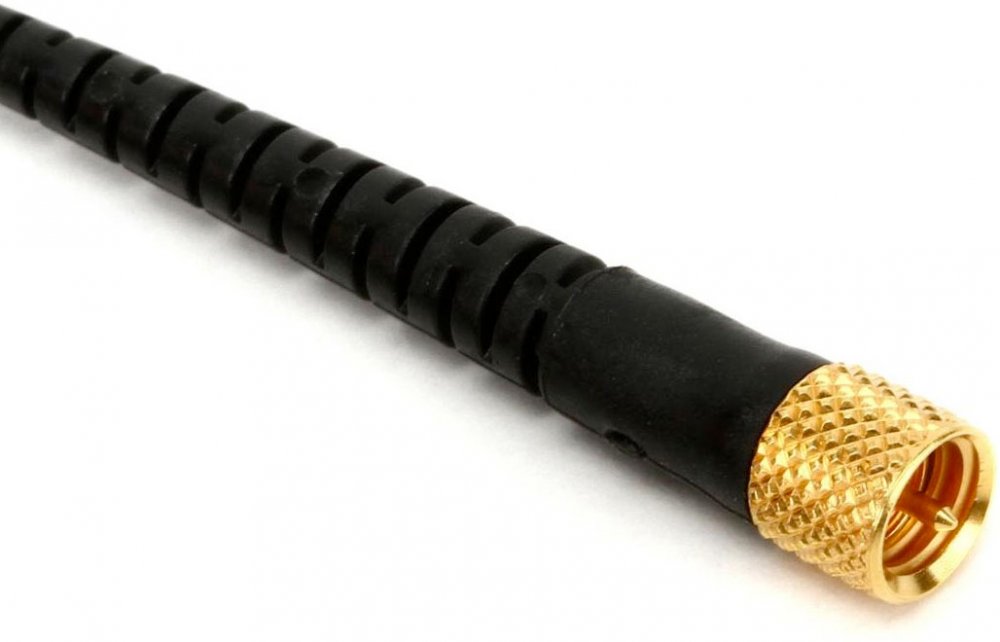

Connector: MicroDot
Color: Black
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%
In the Box:
DPA Microphones d:screet Core 4063 Miniature Omni Microphone with MicroDot Connector, Loud SPL and Low DC, BlackHigh-Boost Protection GridSoft-Boost Protection Grid
