DPA 4060-OC-C-B56
MPN #4060-OC-C-B56

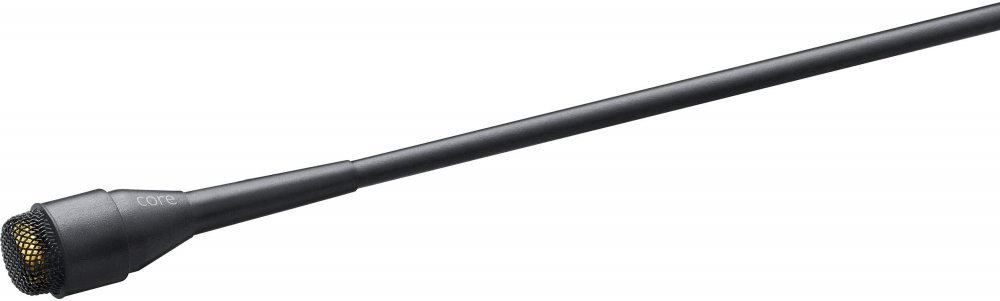

d:screet CORE 4060 omnidirectional mic, normal SPL, black, TA5
Originally designed for use with wireless systems in theater, television and close-miked instrument applications, the d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is highly unobtrusive. Because of its small size, it exhibits an exceedingly accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
The d:screet 4060 Miniature Omnidirectional Microphone, Hi-Sens is available in four colors: black, brown, beige and white.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine, d:screet and d:vote series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Includes an adapter for: TA5F Mini-XLR - Lectrosonics LM / SM / UM Series (low DC micrphones)
Features
Extremely rugged and reliableExceptional audio qualityLow noise and high sensitivityLarge selection of accessoriesModular adapter system fits most professional wireless systems
Specifications
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser element with vertical diaphragm
Frequency range, ± 2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz.
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)
Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
Dynamic range: Typ. 100 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: 30 - 40 ohm
Cable drive capability: Up to 300 m (984 ft)
Power supply
For wireless systems: Min. 5 V - max. 50 V through DPA adapter.With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
Connector: TA5F Mini-XLR - Lectrosonics LM / SM / UM Series (low DC micrphones)
Color: Black
Microphone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40 C to 45 C (-40 F to 113 F)
Relative Humidity (RH): Up t 90%
