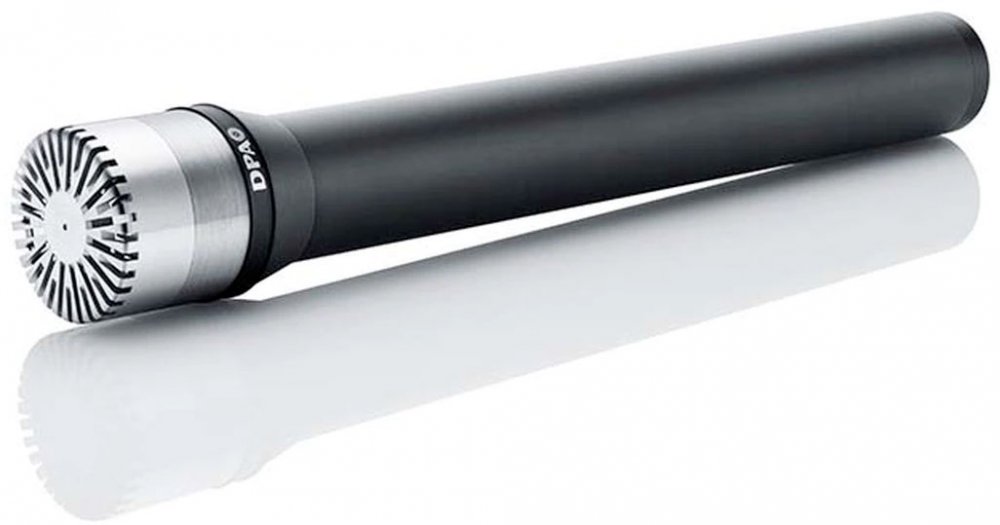

DPA 4041-SP
UPC/EAN #5713055004415
MPN #4041-SP
Large diaphragm omnidirectional microphone
This omnidirectional condenser microphone is designed to work in a standard 48 V phantom power environment. It features the same MMC4041 Large Diaphragm Capsule.
The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability. This gives the MMC4041 Large Diaphragm Capsule a unique sensitivity of up to 90 mV/Pa.
The 4041-SP has a frequency response from 10 Hz to 20 kHz with a 4-6 dB soft boost around 8 kHz. Furthermore, the MMC4041 Large Diaphragm Capsule has extremely low self-noise of 7 dB(A) with the MMP4000-S. It also has enhanced SPL handling capability of up to 144 dB SPL before clipping occurs.
The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamplifier.
Features
Handles high sound pressure levels with no distortionNatural and transparent sound
Specifications
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: 24 mm (1 in) condenser with stainless steel diaphragm
Frequency range, ± 2 dB: 20Hz - 20kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal, ± 2 dB: 70 mV/Pa; -26dB re. 1 V/Pa
Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 86 dB(A)
Total harmonic distortion (THD): < 0.5% THD up to 120 dB SPL peak, < 1% THD up to 126 dB SPL peak
Dynamic range: Typ. 118 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: < 200 Ohm
Cable drive capability: Up to 100 m (328 ft)
Current consumption: 2.20 mA
Connector: 3-pin XLR-M (Standard P48)
Weight: 190 g (6.7 oz)
Capsule diameter: 24 mm (1 in)
Length: 170 mm (6.69 in)
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%
