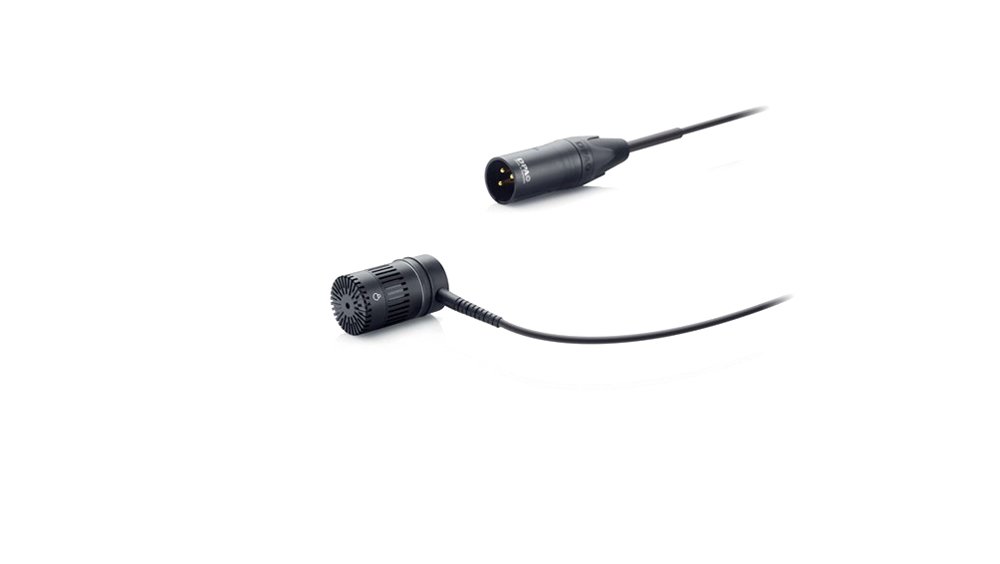

DPA 4018ES
UPC/EAN #5713055006037
MPN #4018ES
Compact supercardioid condenser mic, 20Hz"20kHz response, 142dB SPL, low noise, side XLR entry, modular design, ideal for broadcast, film, and live sound.
The DPA 4018ES is a premium supercardioid condenser microphone tailored for professionals who demand precise sound capture and excellent directionality. Its supercardioid polar pattern ensures focused audio pickup with superb off-axis rejection, making it a go-to choice for speech, vocal, and instrumental applications in studio recordings, live performances, and broadcast environments. The side-address design is both compact and discreet, ideal for use in setups where visibility matters, such as podiums or orchestral arrangements.
Renowned for its natural sound reproduction, the 4018ES delivers a clear, transparent signal with minimal coloration, ensuring that the true character of the source is faithfully preserved. Its modular construction allows it to integrate seamlessly with DPA's range of adapters and accessories, offering versatility for diverse recording or live sound scenarios. Built to the highest standards of audio fidelity and durability, the DPA 4018ES is a trusted tool for achieving professional-grade results in even the most demanding environments.
Features
Ultra-Compact Design: Features a side-entry active cable, allowing for discreet placement and precise positioning in various recording and live sound applications.Supercardioid Polar Pattern: Provides excellent isolation and separation between sound sources, making it ideal for close-miking instruments and vocals while minimizing bleed from other sources.High SPL Handling: Capable of handling high sound pressure levels without distortion, suitable for capturing dynamic instruments and loud sound sources with clarity.Modular Flexibility: Part of DPA's modular microphone series, allowing easy interchangeability with other DPA capsules and preamps for versatile recording needs.Transparent Audio Reproduction: Known for its linear frequency and phase response, delivering accurate and natural sound that faithfully reproduces the original source.
Specifications
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Range: 20 Hz " 20 kHzFrequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHzSensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/PaEquivalent Noise Level (A-weighted): Typ. 18 dB (A) re. 20 µPaEquivalent Noise Level (ITU-R BS.468-4): Typ. 25 dBSignal-to-Noise Ratio (A-weighted, re. 1 kHz at 1 Pa): Typ. 76 dB (A)Total Harmonic Distortion (THD): < 1% up to 139 dB SPL peakDynamic Range: Typ. 121 dBMax. SPL (peak before clipping): 152 dBCable Drive Capability: 100 m (328 ft)Output Balance Principle: Impedance balancing with Active DriveCommon Mode Rejection Ratio (CMRR): > 50 dBPower Supply (for full performance): 48 V Phantom power (± 4 V)Current Consumption: 2.8 mAConnector: XLR-3M (Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase)Color: Matte blackWeight: 58 g (2 oz)
