DPA 4011ES
UPC/EAN #5713055007034
MPN #4011ES

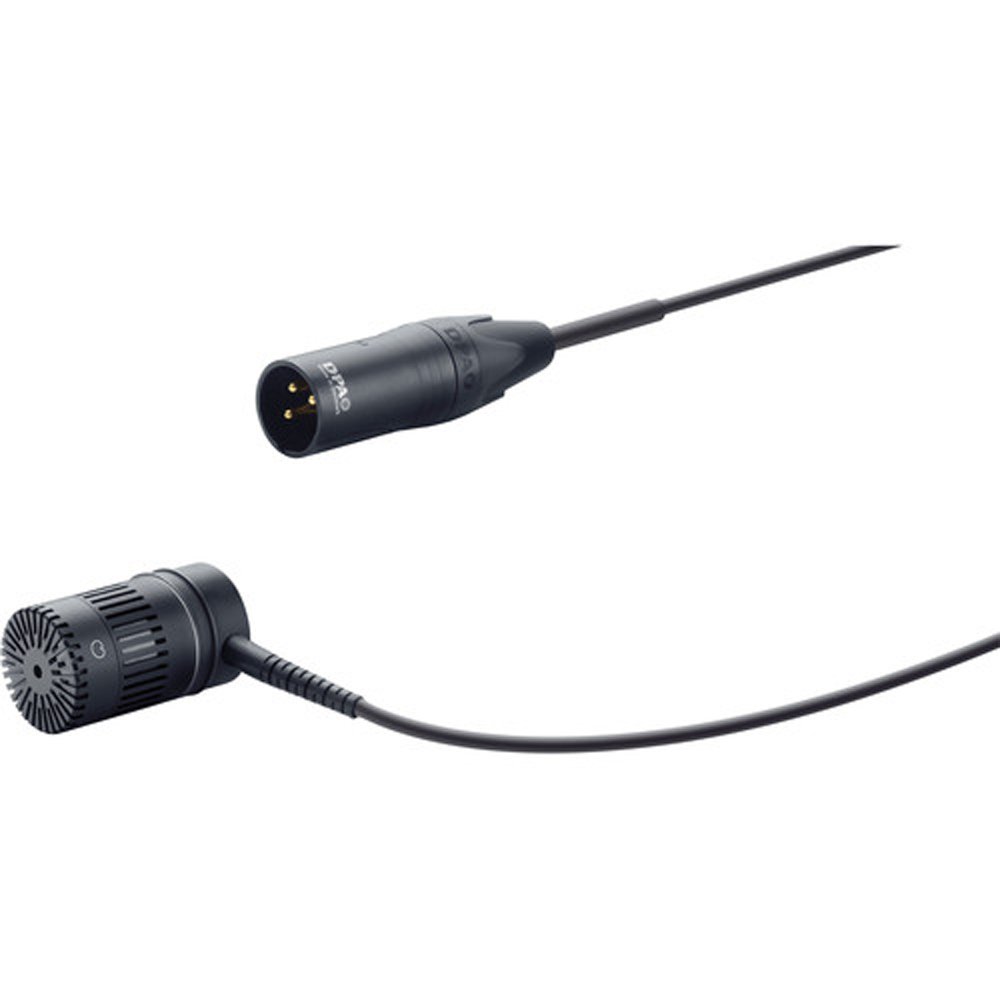

Slim cardioid condenser mic with 4011 capsule, side-mounted XLR, 20Hz"20kHz response, precise sound, low noise, ideal for discreet studio and live setups.
The DPA 4011ES is a high-quality cardioid condenser microphone engineered for precision audio capture and versatile applications. It offers exceptional sound clarity and transparency, making it ideal for use in studio recording, broadcast environments, and live performances. With its sleek and compact side-address design, the 4011ES provides a discreet solution for setups where visibility and space are considerations, such as podiums, orchestral recordings, or film sound production.
This microphone maintains the signature tonal accuracy and natural sound reproduction that DPA is known for, delivering focused audio capture with excellent off-axis rejection. Its modular construction allows compatibility with a wide array of DPA accessories, enhancing its adaptability for various recording and live sound needs. Whether miking instruments, voices, or ambient soundscapes, the DPA 4011ES combines refined aesthetics with professional-grade performance to meet the demands of discerning audio professionals.
Features
Ultra-Compact Design: Features a side-entry cable for discreet placement and precise positioning in recording and live sound applications.Cardioid Polar Pattern: Provides excellent isolation and separation between sound sources, ideal for close-miking instruments and vocals.High SPL Handling: Captures dynamic instruments and loud sound sources with clarity and without distortion.Modular Flexibility: Compatible with DPA's modular microphone series, allowing interchangeability with other capsules and preamps.Transparent Audio Reproduction: Delivers linear frequency and phase response for accurate and natural sound capture.
Specifications
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Range: 20 Hz " 20 kHzFrequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHzSensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/PaEquivalent Noise Level (A-weighted): Typ. 18 dB (A) re. 20 µPaEquivalent Noise Level (ITU-R BS.468-4): Typ. 25 dBSignal-to-Noise Ratio (A-weighted, re. 1 kHz at 1 Pa): Typ. 76 dB (A)Total Harmonic Distortion (THD): < 1% up to 139 dB SPL peakDynamic Range: Typ. 121 dBMax. SPL (peak before clipping): 152 dBOutput Impedance: 100 ohmsMinimum Load Impedance: 2 kiloohmsCable Drive Capability: 100 m (328 ft)Output Balance Principle: Impedance balancing with Active DriveCommon Mode Rejection Ratio (CMRR): > 50 dBPower Supply (for full performance): 48 V Phantom power (± 4 V)Current Consumption: 2.8 mAConnector: XLR-3M (Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase)Color: Matte blackWeight: 58 g (2 oz)
