DPA 4011-DF-F-B01-120T
UPC/EAN #5713055015367
MPN #4011-DF-F-B01-120T
Cardioid condenser mic with twin 48" booms, 20Hz"20kHz response, modular design, 144dB SPL, low distortion, ideal for vocals and instruments.
The DPA 4011-DF-F-B01-120T is a professional-grade cardioid condenser microphone system featuring twin 120 cm (48-inch) booms integrated with floor stands. This configuration is designed for high-quality audio capture in various applications, including live performances, studio recordings, and broadcast settings. The cardioid polar pattern provides excellent off-axis rejection, ensuring focused sound pickup and minimizing unwanted ambient noise.

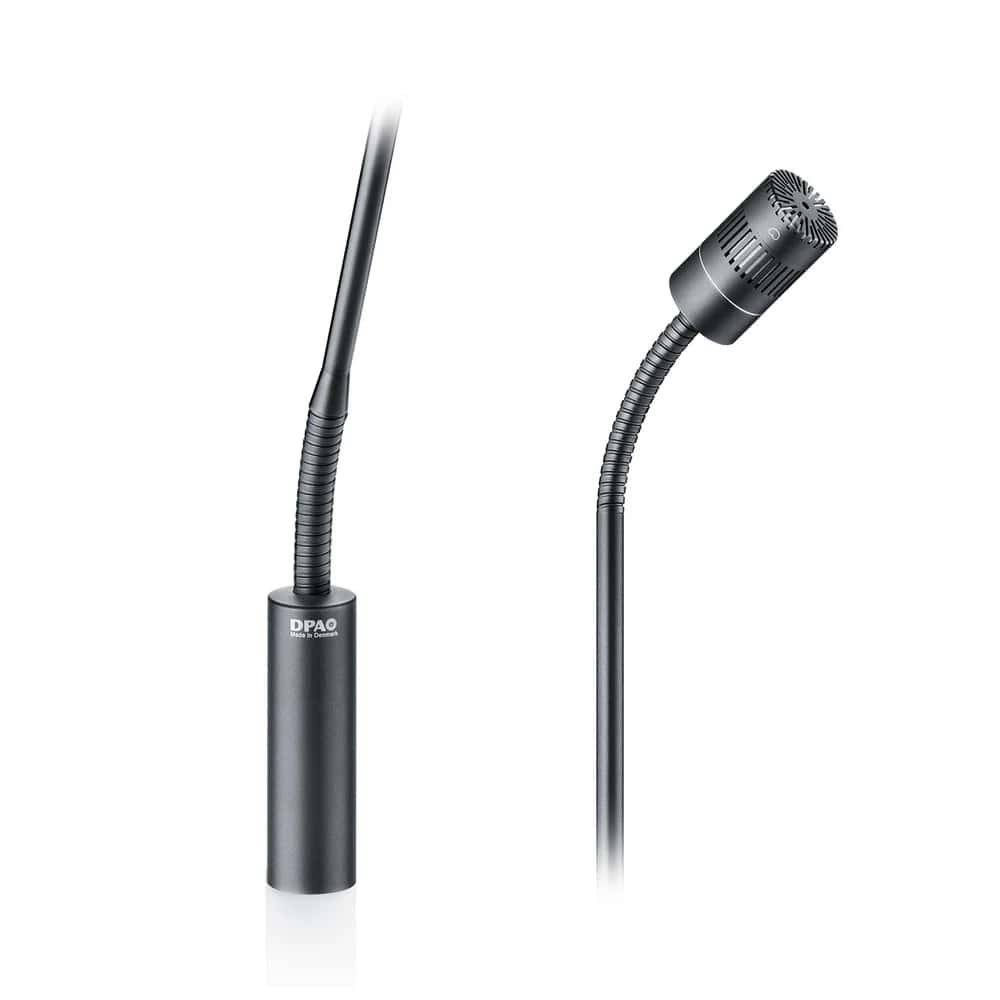

At the heart of this system is the renowned MMC4011 cardioid capsule, known for its flat on-axis frequency response and superior phase characteristics. This design ensures faithful reproduction of the original sound source with low distortion and a wide dynamic range, making it suitable for capturing vocals, acoustic instruments, and serving as a spot microphone in orchestral settings.

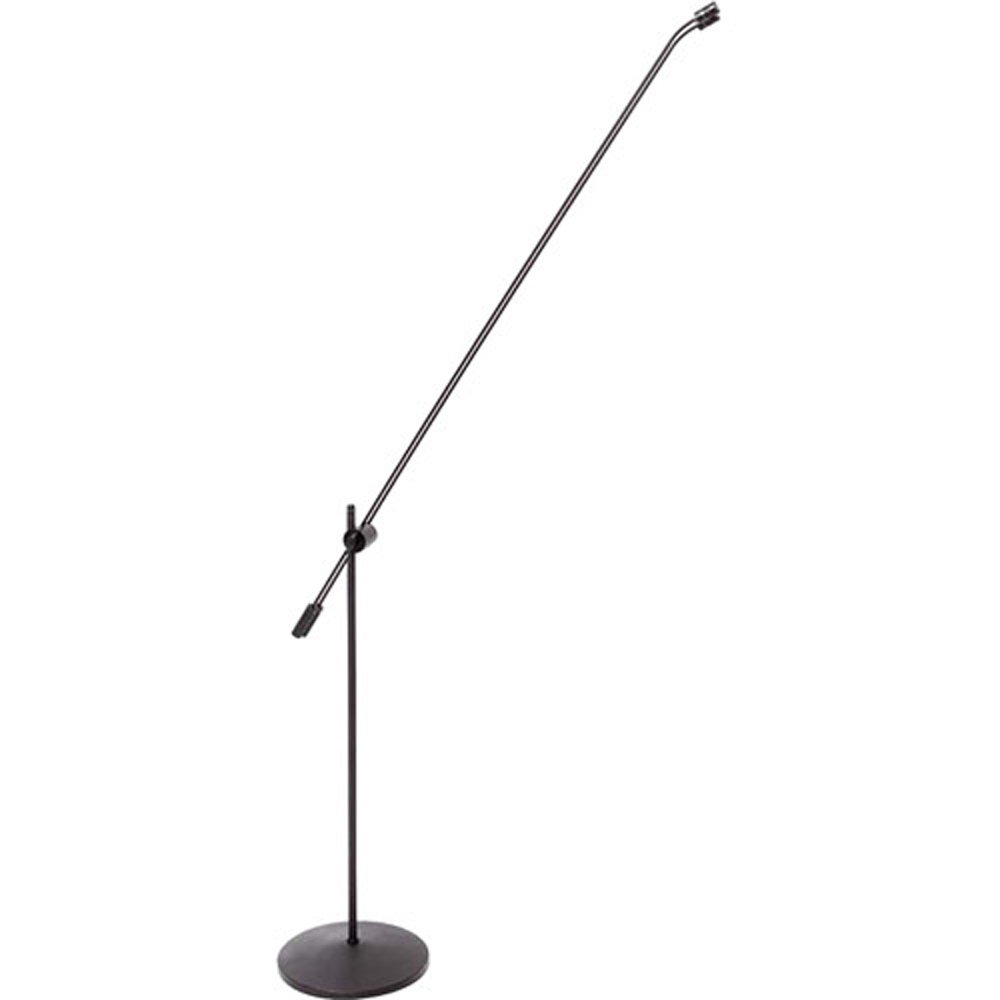

The floor stands feature an elegant, non-reflective black finish, designed to withstand the rigors of TV studios, OB vans, theaters, and concert halls. An integrated shock-mounting solution minimizes handling noise, and the unique design allows for a long boom pole that stabilizes quickly after positioning. The modular nature of the microphone system enables easy reconfiguration with different DPA capsules and preamplifiers to adapt to various recording scenarios.
Caractéristiques
High-Quality Audio Capture: Equipped with dual MMC4011 cardioid capsules for precise and natural sound reproduction.Directional Cardioid Pattern: Provides excellent separation between sound sources, ideal for close-miking applications.Elegant and Durable Design: Features two 120 cm (47 in) booms with a non-reflective black finish, suitable for TV studios, theaters, and concert halls.Integrated Shock Mount: Floor base includes built-in shock mounting to minimize handling noise and vibrations.Modular System Compatibility: Part of DPA's modular series, allowing interchangeability with other capsules and preamplifiers for versatile configurations.High SPL Handling: Capable of managing high sound pressure levels, making it suitable for a variety of instruments and vocals.Stable Boom Positioning: Boom poles rapidly stabilize after positioning, ensuring consistent microphone placement.
Spécifications
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz " 20 kHzEffective Frequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHzSensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/PaEquivalent Noise Level (A-weighted): Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))Equivalent Noise Level (ITU-R BS.468-4): Typ. 25 dB (max. 27 dB)Total Harmonic Distortion (THD): < 1% up to 136 dB SPL RMS, 139 dB SPL peakDynamic Range: Typ. 121 dBMax. SPL (THD <10%): 144 dB SPL peakRated Output Impedance: 100 ohmsMinimum Load Impedance: 2 kiloohmsCable Drive Capability: 100 m (328 ft)Output Balance Principle: Impedance balancingCommon Mode Rejection Ratio (CMRR): > 40 dBPower Supply: P48 (Phantom Power)Current Consumption: 3.5 mAConnector: XLR-3MMicrophone Diameter: 19 mm (0.75 in)Capsule Diameter: 19 mm (0.75 in)Microphone Length: Capsule: 23 mm (0.9 in); Boom pole: 122 cm (48 in)
