DPA 4011-DF-F-B01-120
UPC/EAN #5713055014421
MPN #4011-DF-F-B01-120
Cardioid condenser mic with 48" boom and floor stand, 20Hz"20kHz response, low distortion, 144dB SPL, modular design, ideal for vocals and instruments.

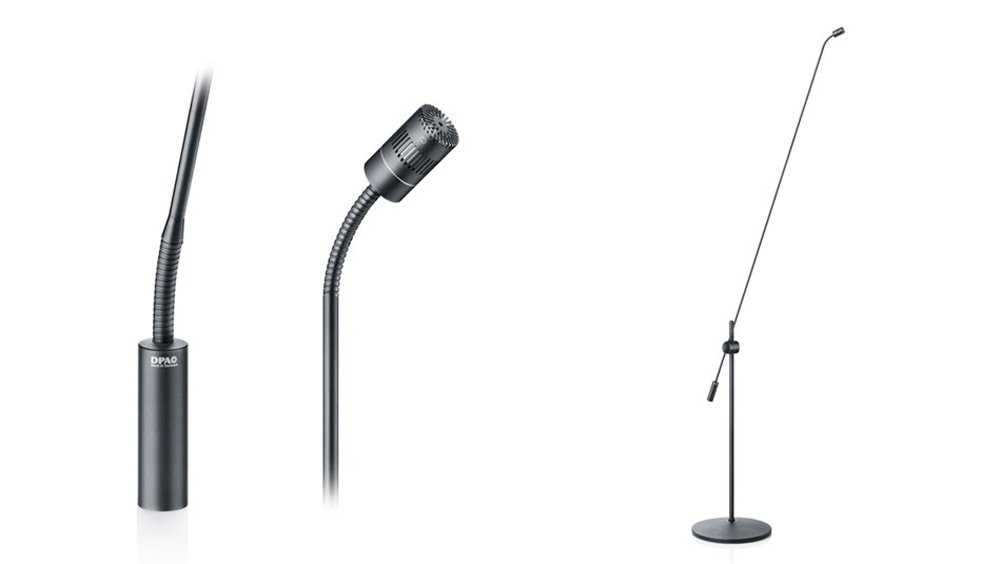

The DPA 4011-DF-F-B01-120 is a professional-grade cardioid condenser microphone mounted on a 122 cm (48-inch) boom with an integrated floor stand, designed for high-quality audio capture in various applications, including live performances, studio recordings, and broadcast settings. Its cardioid polar pattern provides excellent off-axis rejection, ensuring focused sound pickup and minimizing unwanted ambient noise.
Equipped with the renowned MMC4011 cardioid capsule, the microphone delivers a flat on-axis frequency response and excellent phase response, faithfully reproducing the original sound source with low distortion and a wide dynamic range. This makes it suitable for capturing vocals, acoustic instruments, and as a spot microphone in orchestral settings.
The floor stand features an elegant, non-reflective black surface, designed to withstand the rigors of TV studios, OB vans, theaters, and concert halls. Its integrated shock mounting solution minimizes handling noise, and the unique design allows for a long boom pole that stabilizes quickly after positioning. The modular nature of the microphone system enables easy reconfiguration with different DPA capsules and preamplifiers to adapt to various recording scenarios.
Features
Superior Audio Quality: Utilizes the MMC4011 cardioid capsule for accurate, low-distortion sound reproduction.Directional Precision: First-order cardioid pattern ensures excellent separation between sound sources, ideal for close-miking applications.Elegant Design: Features a 122 cm (48 in) boom with a non-reflective black finish, suitable for TV studios, OB vans, theaters, and concert halls.Integrated Shock Mount: Floor base includes built-in shock mounting to minimize handling noise and vibrations.Modular Flexibility: Compatible with other DPA pencil mic capsules and preamplifiers for versatile configurations.High SPL Handling: Capable of managing high sound pressure levels, making it suitable for a variety of instruments and vocals.Stable Boom Positioning: The boom pole rapidly stabilizes after positioning, ensuring consistent microphone placement.
Specifications
Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz " 20 kHz
Effective frequency range (±2 dB, at 30 cm): 40 Hz " 20 kHz
Sensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level (A-weighted): Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level (ITU-R BS.468-4): Typ. 25 dB (max. 27 dB)
Total harmonic distortion (THD): < 1% up to 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max SPL (THD <10%): 144 dB SPL peak
Rated output impedance: 100 ohm
Minimum load impedance: 2 kiloohms
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing
Common mode rejection ratio (CMRR): > 40 dB
Power supply: P48 (Phantom Power)
Current consumption: 3.5 mA
Connector: XLR-3M
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
