DPA 4011-DF-F-B01-075
UPC/EAN #5713055017781
MPN #4011-DF-F-B01-075
Cardioid condenser mic with 30" boom and floor stand, 20Hz"20kHz response, 144dB SPL, modular design, low distortion, ideal for vocals and instruments.

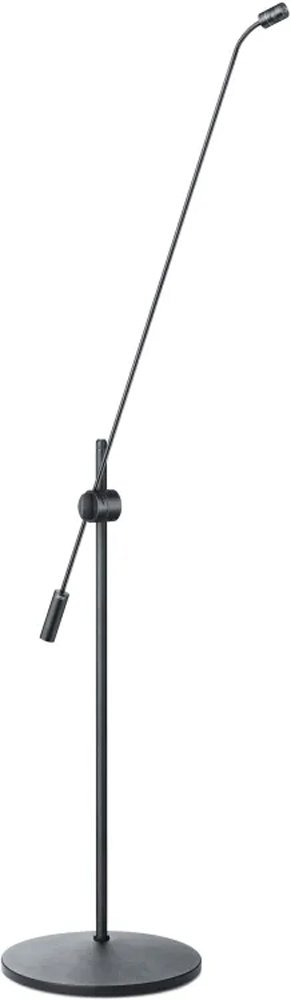

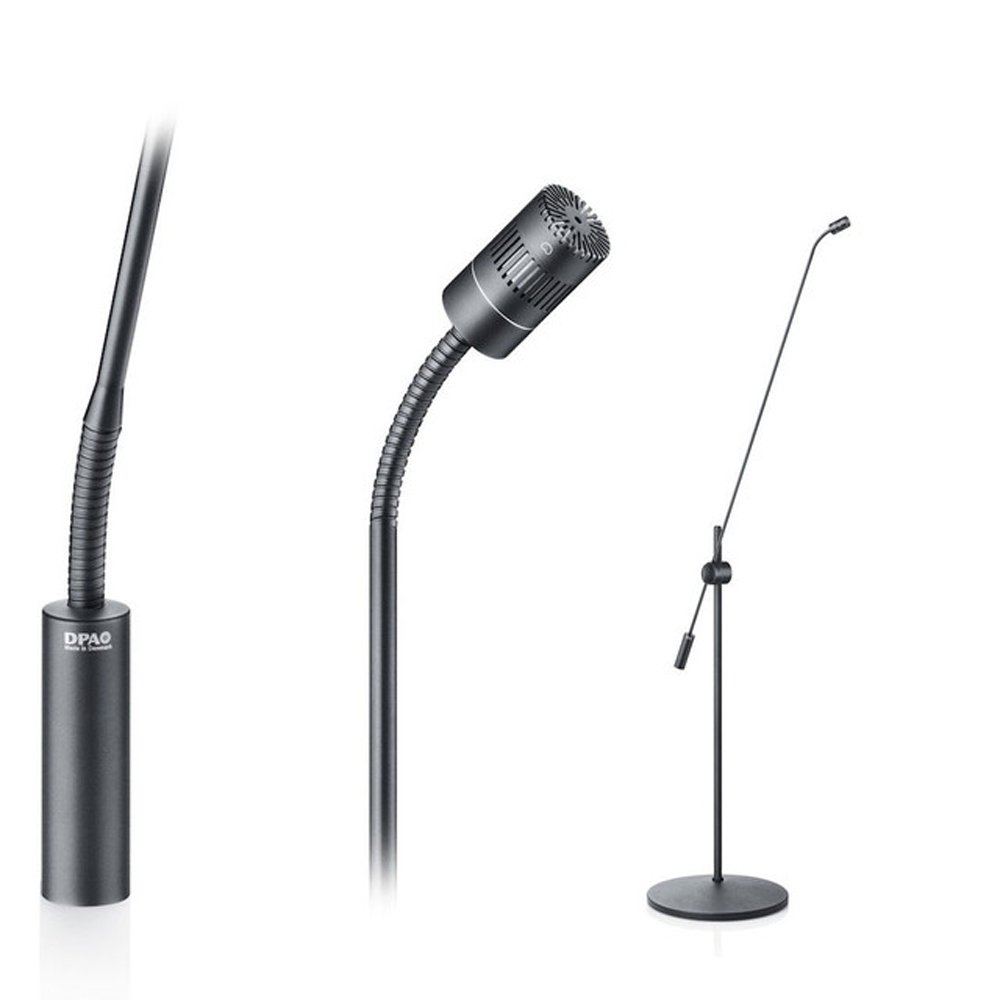

The DPA 4011-DF-F-B01-075 is a professional-grade cardioid condenser microphone mounted on a 75 cm (30-inch) boom with an integrated floor stand, designed for high-quality audio capture in various applications, including live performances, studio recordings, and broadcast settings. Its cardioid polar pattern provides excellent off-axis rejection, ensuring focused sound pickup and minimizing unwanted ambient noise.
Equipped with the renowned MMC4011 cardioid capsule, the microphone delivers a flat on-axis frequency response and excellent phase response, faithfully reproducing the original sound source with low distortion and a wide dynamic range. This makes it suitable for capturing vocals, acoustic instruments, and as a spot microphone in orchestral settings.
The floor stand features an elegant, non-reflective black surface, designed to withstand the rigors of TV studios, OB vans, theaters, and concert halls. Its integrated shock mounting solution minimizes handling noise, and the unique design allows for a long boom pole that stabilizes quickly after positioning. The modular nature of the microphone system enables easy reconfiguration with different DPA capsules and preamplifiers to adapt to various recording scenarios.
Features
High-Quality Audio Capture: Features the MMC4011 cardioid capsule for precise and natural sound reproduction.Directional Cardioid Pattern: Offers excellent separation between sound sources, ideal for close-miking applications.Elegant and Durable Design: Equipped with a 30-inch (75 cm) boom and a non-reflective black finish, suitable for TV studios, theaters, and concert halls.Integrated Shock Mount: The floor base includes built-in shock mounting to minimize handling noise and vibrations.Modular System Compatibility: Part of DPA's modular series, allowing interchangeability with other capsules and preamplifiers for versatile configurations.High SPL Handling: Capable of managing high sound pressure levels, making it suitable for a variety of instruments and vocals.Stable Boom Positioning: The boom pole rapidly stabilizes after positioning, ensuring consistent microphone placement.
Specifications
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz " 20 kHzEffective Frequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHzSensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/PaEquivalent Noise Level (A-weighted): Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))Equivalent Noise Level (ITU-R BS.468-4): Typ. 25 dB (max. 27 dB)Total Harmonic Distortion (THD): < 1% up to 136 dB SPL RMS, 139 dB SPL peakDynamic Range: Typ. 121 dBMax. SPL (THD <10%): 144 dB SPL peakRated Output Impedance: 100 ohmsMinimum Load Impedance: 2 kiloohmsCable Drive Capability: 100 m (328 ft)Output Balance Principle: Impedance balancingCommon Mode Rejection Ratio (CMRR): > 40 dBPower Supply: P48 (Phantom Power)Current Consumption: 3.5 mAConnector: XLR-3MMicrophone Diameter: 19 mm (0.75 in)Capsule Diameter: 19 mm (0.75 in)Microphone Length: Capsule: 23 mm (0.9 in); Boom pole: 75 cm (30 in)
