Digital Audio Denmark DAD Core 256
MPN #DADCORE256
Digital router and monitoring interface with up to 720 channels, Thunderbolt 3, Dante, MADI, ADAT, and built in Pro|Mon Summing and Speaker EQ Processing
THE TINY IMMERSIVE AUDIO HERO
Massive Flexibility. Small Footprint. Immersive Power.

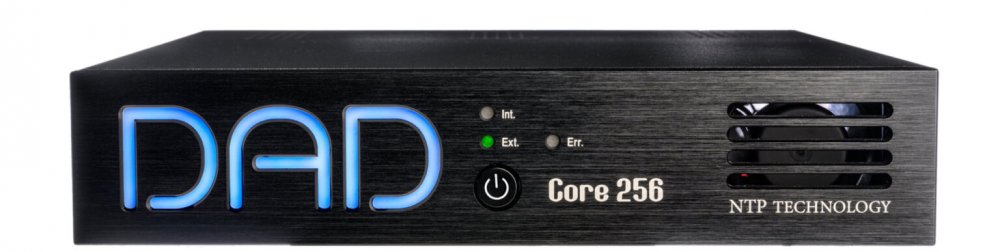

Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.
However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for Dolby Atmos RMU.
The size and shape of Core 256 fits nicely for sharing a 1U rack shelf with a Mac Mini running Dolby Atmos Renderer, Dolby Atmos Production Suite or Dolby Atmos Mastering Suite. For immersive audio post production facilities, this solution will represent the missing link that streamlines and optimizes the multichannel workflows seamlessly.
Control
The Thunder|Core Audio interface is controlled via the DADman software. DADman can connect to the Thunder|Core interface either via Ethernet or via a communication channel in the Thunderbolt connection.
More units can be daisy chained via the Thunderbolt ports, and each unit will appear in DADman control software.
Using control over Ethernet the two RJ45 connectors acts as a switch for connection to more units. The Dante /AES67 audio is also passed on the two RJ45 connectors.
Thunder | Core Technology
The DAD Thunder |Core Technology provides a Thunderbolt 3 connection with near-zero latency for interfacing between audio applications on macOS or Windows computers and the Thunder|Core audio hardware.
The interface provides a fast Thunderbolt 3/PCIe connection and data transfer with 2 samples latency on the connection and a total of 9 samples in the digital interface, as total also includes EQ and summing processing within the unit.
The channel capacity is up to 256 audio channels at 48 and 96 kHz, and the latency at 96kHz is 95 microseconds. The total round-trip latency with an audio software application will depend on the buffer size set for the application. With a buffer size of 32 samples, the latency is 670 microseconds at 96 kHz.
Functionality
The Thunder | Core products have been designed with a unique router core based on 32bit floating point processing and a low-latency and highly reliable FPGA based matrix structure. A timestamp mechanism provides equal latency for all signals routed through the core.
In total, Core 256 has a capacity of 4,096-4,096 non-blocking cross points, which provides a capacity of 1,500-1,500 cross points on the I/O and processing level.
The matrix provides fixed latency routing of all inputs to one or more outputs with a latency of only 5 audio samples and supports sample rates from 44.1 to 384 kHz.
The channel processor provides a signal detection logic for all input and output channels, PPM level measurement as well as level control.
All inputs and outputs have processing for level adjustment and in addition, the core has a summing/mixing processer with 64 output busses and 512 inputs, which can be allocated to sets of input and output signals managed by the Pro|Mon monitor control functionality in DADman.
SPQ speaker EQ management is available natively in the core with access to 1,024 filters combined into 64 channels with 16 filters, each with adjustable delay.
Overview
720 Input and Output ChannelsDigital Router and Monitoring InterfaceThunderbolt 3 I/O (256 Ch.)Dante AoIP I/O (256 Ch.)MADI BNC I/O (64 Ch.)MADI SFP I/O module option (128 ch.)ADAT dual TosLink I/O (16 Ch.)512-64 ch. Pro|Mon Summing and Speaker EQ Processing
Features
The basic I/O configuration for the Core 256 interface is:

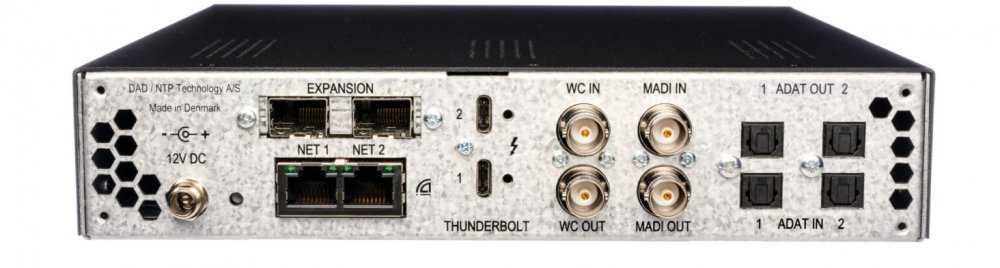

2 Thunderbolt 3 Ports (each w. 15W power)256 Bidirectional Channels at 48 & 96 kHzASIO / Core Audio Thunderbolt PCIe driversMADI/BNC-Optional 2 x SFP/BNC MADIADAT /Litepipe (16 Ch.)DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96kHz (IP Core)WC I/OSPQ: 64 Ch. with 16 FiltersPro|Mon SupportSumming Processor 64 Output / 512 Input BussesInternal Router: 1500 x 150032bit Floating Point ProcessingAvid Eucon Enabled Devices via DADmanAPPLE Silicon M1 and Intel Compatible SoftwareControl via Ethernet or Thunderbolt Connection12V DC External Power (Max 60W)½ Rack Unit 1U Height
Further, the mini module slot can be mounted with an optional dual bidirectional MADI module with optical SFP or mini coax connectors.
Specifications
2 x Thunderbolt 3 Ports w. 15W Power Source Each256 Bidirectional Channels at 44.1/48 kHz256 Channels at 88.2/96 kHz128 Channels at 176.4/192 kHz64 Channels at 352.8/384kH
