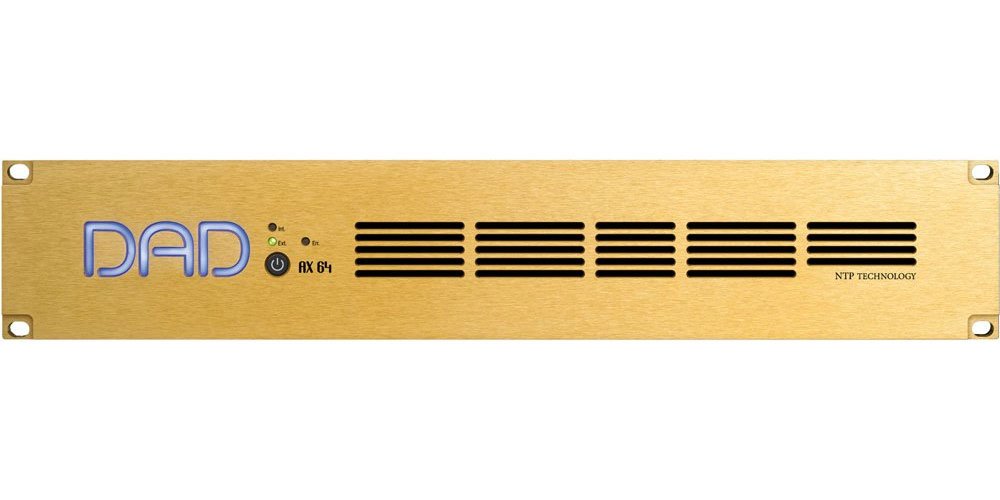

Digital Audio Denmark AX64 Base Unit w/DADlink
MPN #NTP-DADAX64BASE-DL
1,872 input and output channels multi-format modular audio A/D & D/A converter, router, and monitoring interface
Versatile and modular multi-format audio interface with 8 slots for the acclaimed audio I/O cards known from the AX32 and Penta product family.
Up to 8 analogue cards can be installed, providing 64 analogue input or output audio channels with the renowned DAD high-end sonic quality.
With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine, Control | Pack and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and is suited for just about any application.
In short, AX64 is the ultimate modular multi-format interface, which is ready to take on a wealth of tasks in the Post Production, Studio, Live Music and Installed Audio spheres.
- 1,872 Input and Output Channels
- Multi-Format Audio A/D, D/A and D/D Converter
- Digital Router and Monitoring Interface (Analog expansion available, but not included)
- Thunderbolt 3 I/O (256 Ch.)
- Dante AoIP I/O (256 Ch.)
- MADI I/O (64 Ch.)

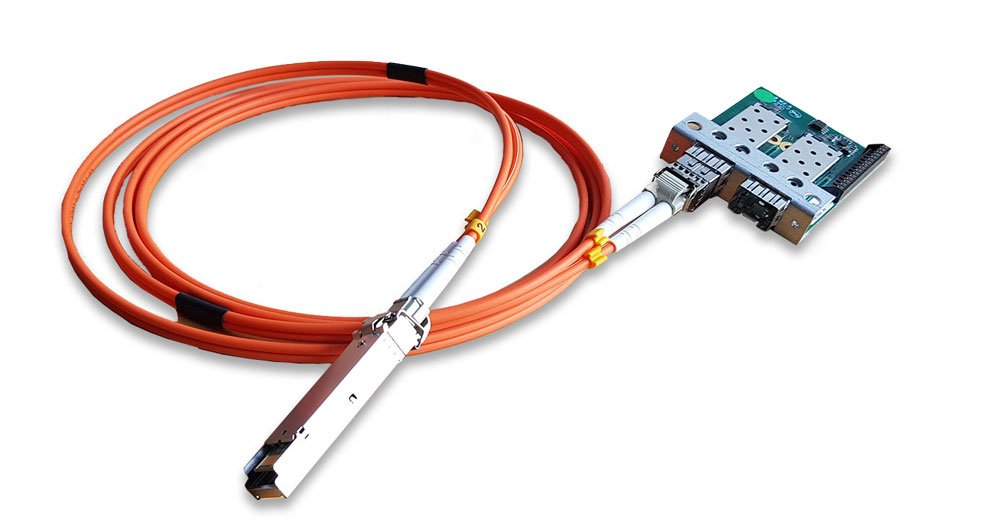

- MADI SFP I/O Module Option Available (128 Ch. " SFP not included)
- ADAT I/O (16 Ch.)
- 8 Slots for Optional Multi-Format DAD I/O Cards
- 512-64 Ch. PRO | MON Summing and Speaker EQ Processing
Features
Thunderbolt 3 I/O (256 channels at 48 & 96 kHz)Dante AoIP I/O (256 channels at 48 kHz, 128 channels at 96kHz)MADI I/O (64 channels at 48 kHz)ADAT I/O (16 channels) / SPDIF (2 channels)Up to 1024-1024 channels I/O via optional cardsUp to 256-256 channels I/O via optional module512-64 channel PRO | MON monitor controlSpeaker EQ 128 channel w 16 filtersControl | Pack Preset management28bit floating point processingAvid Eucon enabled devices via DADmanApple macOS and Windows compatible softwareControl via Ethernet or Thunderbolt connectionWord Clock I/OAlso available in a version with Dual 110/240V AC Power connection
Specifications
2 x Thunderbolt 3 Ports w. 15W Power Source Each256 Bidirectional Channels at 44.1/48 kHz256 Bidirectional Channels at 88.2/96 kHz128 Channels at 192 kHz64 Channels at 384 kHz
Audio Drivers
macOS
Core Audio Thunder|Core Audio Driver
Compatible with Intel and Apple Silicon processors, as well as Big Sur macOS and forward
Core Audio Aggregates for More Applications I/O Control Connection for DADman
Control Connection for DADman
Windows
ASIO Thunder|Core Audio Driver
Compatible with Windows 10 and forward
One Application Can Connect to the Asio Driver
Control Connection for DADman
