Featuring six HDMI inputs, component/composite ins/outs, XLR balanced and RCA unbalanced 7.1 pre-outs and RS-232C and IP control, the 700AV is uniquely capable of handling virtually any installation requirement.

The unit is compatible with many of today's multi-channel formats, including TrueHD/Dolby Digital Plus/Dolby Digital/ DTS-HD/MasterAudio/DTS ES. Plus, it's HDCP-compatible and has network streaming via DLNA.

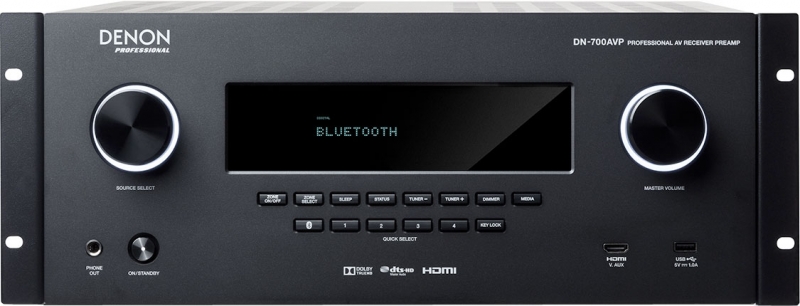

With a rackmount chassis, the DN-700AVP was designed with the contractor in mind. A balanced XLR stereo input rounds-off the feature set aimed at the professional installer.

Six HDMI inputs and one output

Component & composite video inputs and outputs

Dolby TrueHD / Dolby Digital Plus / Dolby Digital/ DTS-HD Master Audio/ DTS ES

XLR balanced 7.1 preamp outputs

RCA unbalanced 7.1 preamp outputs

Bluetooth 4.0

FM tuner with 20-channel memory

RS-232C and IP control

HDCP compatible and network streaming via DLNA

Bluetooth Specifications
Version: 4.0
Profile: A2DP, AVRCP
Maximum Transmission Power: -6dB ± 4dB, Class 2
Frequency: 2.4GHz - 2.48 GHz

FM Tuner
Frequency Range: 87.5 MHz - 108 MHz

USB
File System: FAT 16/32
Media Type: USB Flash Drive

Audio Specifications
Preamp Outputs: 7.1 Surround Sound
Level: -10dB or +4db
Frequency Response: 10kHz - 20kHz ± 1.0dB
Dynamic Range: 10kHz - 20kHz, A-weighted >90dB
Signal-to-Noise: 1 kHz, 0 dB, A-weighted >90dB
Distortion: <0.006%
T.H.D: 1 kHz, 0 dB, A-weighted <0.01%

Supported Surround Formats: Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio,
DTS ES
Supported File Types: WMA, MP3, WAV, MPEG-4 AAC, and FLAC files
Analog Input
Unbalanced RCA: Nominal level -10 dBV (at full scale: -16dB)
Minimum Input Level: -19 dBV or higher
Input Impedance: 47 kâ?¦ ± 10%, unbalanced

Digital Inputs
Coaxial: RCA (IEC-60958 Type II)
Optical: Toslink (IEC-60958 Type II)

Composite Video
Input/Output Level: 1V/p-p
Impedance: 75 â?¦
Frequency Response: 5 Hz - 10 MHz

Component Video
Input Level:
Y signal, 1Vp-p
Pb/Cb signal, 0.7Vp-p
Pr/Cr signal, 0.7Vp-p

Impedance
Y signal, 75 â?¦
Pb/Cb signal, 75 â?¦
Pr/Cr signal, 75 â?¦

Frequency Response: 5 Hz - 60 MHz
HDMI: Version 1.4b (3D and ARC supported)

Power
Connection: IEC
Input Voltage: 100 - 120V / 220-240V
Consumption: 30W
Operating Temperature: 41 F - 113 F
Operating Humidity: 25 - 85%, non-condensing

Dimensions: 19.00"w x 13.66"d x 6.93"h (483 x 347 x 176mm)
Weight: 19.1 lbs (8.66kg)

In the Box
DN-700AVP
Power Cable
FM Antenna
Remote Control
Euroblock Connectors
User Guide
Safety and Warranty Manual
