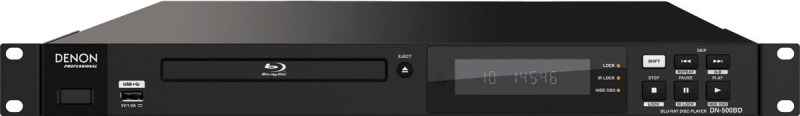

The DN-500BD Blu-ray player is a compact, high performance unit that handles all popular optical video playback formats for unrivaled capability from a single disc playback device
The DN-500BD offers a tremendous amount of performance and flexibility in a space-saving single rack unit (1RU) chassis. It provides the wide range of connection and control capabilities that are essential to the professional user, making it ideal for use in corporate A/V, education, theaters, house of worship, and more. These include RS-232C and IP controllability and XLR balanced audio outputs. The DN-500BD also has discrete 7.1 channel analog outputs for simple connection to powered speakers or signal management devices.
The Denon Professional DN-500BD will play virtually every Blu-ray, DVD, and audio CD format, making it easy to utilize multiple disc formats within a system. Supported formats include BD-Video, BD-R, BD-RE, DVD-Video, DVD-Audio, DVD+R, DVD+RW (Video mode, AVCHD format), DVD-R, DVD-RW (Video mode, AVCHD format) and Audio CD (CD-R, CD-RW). Using the built-in LAN port, users may optionally access additional content via BD Live. For even more versatility, a front-loading USB slot delivers access to MP3, WAV, FLAC, MP4, WMV, JPG, PNG, GIF files, and more.
In addition to its extremely high performance and wide range of format playback capabilities, the DN-500BD anticipates your requirements and operational patterns by providing features that maximize the unit's ease of use.
The Denon Professional DN-500BD combines no-compromise performance, wide-ranging connection and control capability, and compatibility with virtually every disc format there is-all in a compact single rack space unit. Its unique combination of performance, versatility and compact size is ideally suited to the professional use
Panel lock and IR remote lock functions prevent unwanted or accidental operationPower-on Play button eliminates extra steps, provides simplified, ultra-fast startupOSD (On Screen Display) hiding mode eliminates unwanted disc status updatesRepeat mode offers an uninterrupted playback loopSupport BD-Video, BD-R, BD-RE, DVD-Video, DVD-Audio, DVD+R, DVD+RWOSD hiding modPanel lock functionIR remote lock functionPower on play functionDefault repeat settingRS-232C and IP controlXLR balanced audio output7.1ch audio analog outputTransport controls on the frontPanel 1U size for space
System
Digital media player (Blu-ray Disc, DVD, CD, USB device [mass storage class]) AVCHD playback format
Supported Disc Formats
Blu-ray Disc: BD25, BD50, BD-ROM, BD-R, BD-REDVD: DVD, DVD+R, DVD-R, DVD+RW, DVD-RWCD: CD, CD-R, CD-RW, DTS Music Disc (DTS Audio CD, 5.1 Music Disc), HDCD, Super Video CD (SVCD), Video CD (VCD)
Supported File Formats
Video: .3gp, .asf, .avi, .dat, .divx, .mkv, .mov, .mp4, .mpg, .m2ts, .ogm, .rmvb, .tp, .ts, .wmvSubtitles: .ass, .smi, .srt, .ssa, .subAudio: .ape, .flac, .m4a (AAC), .mp3, .wav, .wmaPicture: .gif, .jpg (or .jpeg), .png
Supported File Systems
FAT16, FAT32, NTFSUSB drive (mass storage class) with < 2 TB total capacity
Video
Resolutions Auto, 480i/576i, 480p/576p, 720p, 1080i, 1080pAspect Ratios 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 LetterboxSystem NTSC, PAL, Multi (if supported by TV)HDMI Color Space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr 4:2:2Output: HDMI > v1.4 (3D), HDCP 1.4
Decoding
Video: DivX 3, 4, 5, 6; DivX HD; MPEG-1; MPEG-2; MPEG-4; MPEG-4 AVC (H.264); VC-1 (Windows Media Video); XvidAudio: AAC; Dolby Digital; Dolby Digital Plus; Dolby TrueHD; DTS Digital Surround; DTS-HD; WMA
Audio
Analog Outputs
Output Level (balanced XLR): +4 dBu = +1.786 dBVOutput Level (unbalanced RCA): +6 dBV
Digital Output
Output Level (coaxial): 0.5V, 75 â?¦Signal Format: AES/EBU
Surround Audio
DTS-Master Audio, DTS-HD High Resolution Audio, DTS Digital Surround, Dolby TrueHD, Dolby Digital (AC-3), Dolby Digital Plus (7.1ch)
Frequency Response
20 Hz - 20 kHz (+0.5 dB)
Signal-to-Noise Ratio
> 100 dB (A-weighted)
Total Harmonic Distortion
< 0.05%
Dynamic Range
> 100 dB (A-weighted)
Headroom
6 dB
Channel Separation
> 90 dB
Communication
Remote Control
Infrared protocol, > 200 mV transmission output level
Serial Remote
Connector: 9-pin D-Sub female, RS-232CMode: Full duplexBaud Rate: 9600 or 38400 bps (selectable)
Ethernet
Connector: LAN portStandards: Ethernet (10 Mbps), Fast Ethernet (100 Mbps)
Other / General
Connections
(2) XLR audio outputs (L/R, balanced)(2) RCA audio outputs (L/R, unbalanced)(8) RCA audio outputs (7.1 surround sound)(1) Coaxial digital audio/visual output(1) HDMI audio/visual output(1) LAN port(1) 9-pin D-Sub female RS-232C port(1) IEC power connection
Power
Connection: IECRequirement: 100-240 VAC, 50/60 HzConsumption: 15 W typical, < 0.5 W standby
Environmental Conditions
Operating temperature: 41 - 95 °F (5 - 35 °C)Operating humidity: 25 - 85%, no condensation
Dimensions (width x depth x height, with rack ears)
19.00" x 10.75" x 1.73"483 mm x 273 mm x 44 mm
Weight (with rack ears)
5.9 lbs.2.7 kg
