Denon Professional's Solution Series is designed to be the best friend of audio contractors. Its specialty is solving audio challenges easily and inexpensively by getting signal to someplace that would be otherwise difficult or inconvenient. Simple to install, configure and operate, the Solution Series products belong in the toolbox of every audio installer.

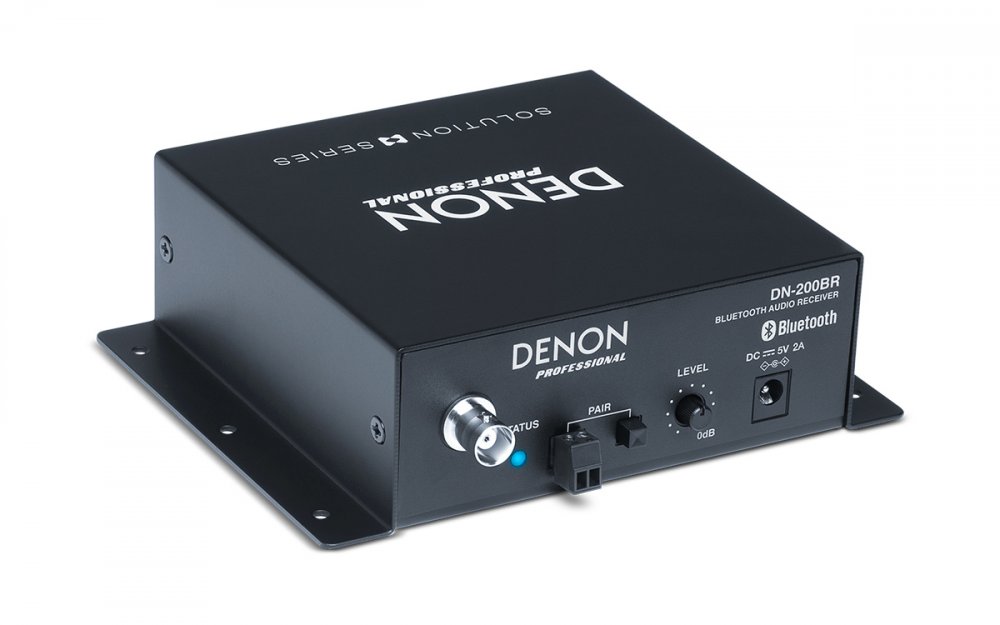

With countless Bluetooth-enabled audio sources roaming the planet, the DN-200BR interfaces them all with a professional audio system for sound reinforcement, special event or retail applications. It receives Bluetooth signals wirelessly, then routes the audio to balanced XLR or ¼-inch outputs for integration with mixers and amplification systems. Its Bluetooth Pairing mode ensures a secure connection.

Adds Bluetooth to any audio system

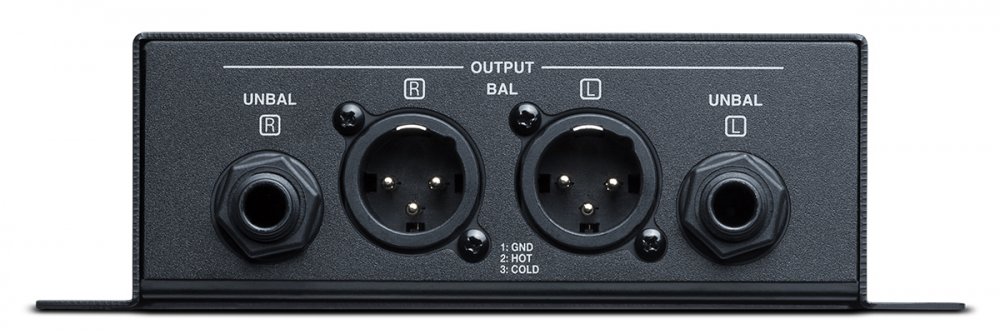

Balanced XLR and unbalanced 1/4-inch audio outputs

Up to 33m (100 ft) range

Discreet, robust build quality that can mount nearly anywhere

Audio Specification
Frequency response: 20 Hz " 20 KHz (+1 dBu)
Signal-to-Noise Ratio: > 75 dB
THD: < 0.01%

Bluetooth Specifications
Version: 2.1 + Enhanced Data Rate (EDR)
Maximum Receiver Power: Class 2, 4 dBm
Receiver Frequency: 2.4 GHz " 2.480 GHz
Receiver Range: Up to 82 ft. / 25 m
Receiver Sensitivity: -80 dBm @ 0.1% BER
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles
AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.5, Headset Profile (HSP) 1.1


Analog Output
Balanced (XLR): +4 dBu (+1 dB)
Unbalanced (1/4" / 6.35mm): -2 dBu (+1 dB)

Environmental
Operation Temperature: 41"95F / 5"35C

General
Power Adapter: 5 V DC, 3 A, center-positive
Input Voltage: 100"240 V AC, 50/60 Hz
Dimensions (width x depth x height): 5.8" x 4.6" x 1.8" (149 x 117 x 45 mm)
Weight: 1.3 lbs. (0.6kg)
