Deity Microphones THEOS Dual-Channel Digital UHF System
UPC/EAN #6971842188383
MPN #DTU0253D59

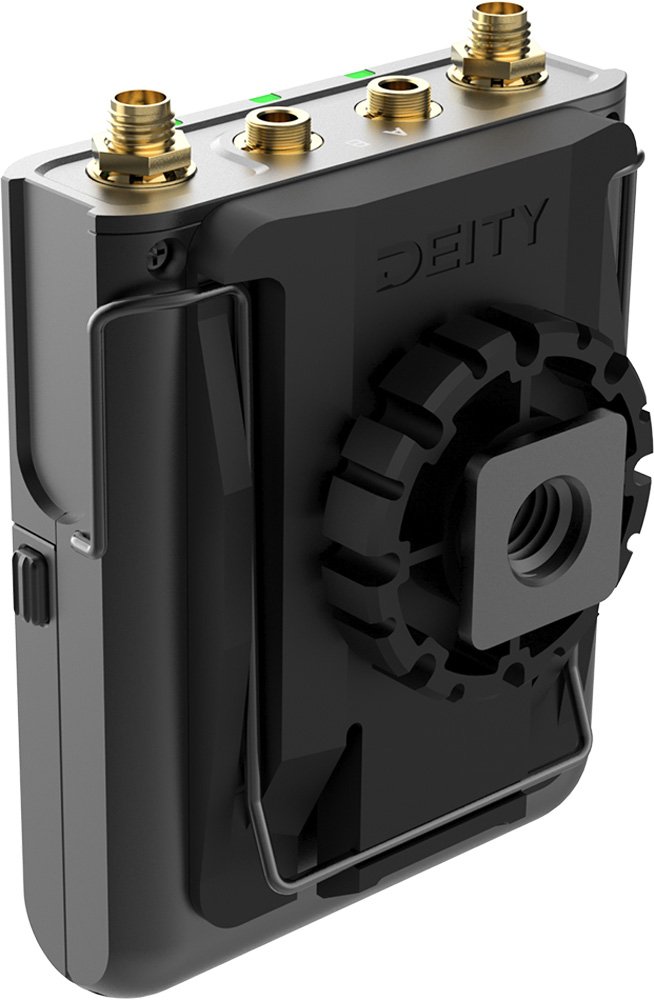

2-Person camera-mount wireless omni lavalier microphone system with 2 omni lavalier microphones, 2 bodypack transmitters with recording, and dual-channel camera-mount receiver
As a filmmaker, one of the most important aspects of your work is sound. There is nothing more frustrating than discovering that your audio is unusable due to interference, dropped signals or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process seamless and stress-free.
WIDEBAND UHF SPECTRUM
One of the standout features of the Deity Theos Digital Wireless Microphone System is its use of a wideband UHF spectrum rather than the crowded 2.4Ghz band. Frequencies span between 550-960 MHz.
Theos Digital Wireless also features swappable frequency ranges based on your phone?s GPS / Firmware Update. Now you can travel the world with one wireless microphone kit.
BUILT-IN RECORDER
The Deity Theos Digital Wireless Microphone System also features a transmitter with a built-in recorder. The onboard recorder features both 24-bit and 32-bit float formats so you never have to worry about gain staging on your backup WAV files. Recordings are saved to a Micro SD card, up to 128Gb in size, providing ample space for your audio recordings.
The built-in recorder features an impressive EIN self-noise of -130dBu (A-weighting, gain at +30dB, 150ohm source impedance). This puts it on par with some of the most expensive audio recorders in the film industry.
WIRELESS TIMECODE SYNC
The Theos? most unique feature is that the transmitter can be natively synced wirelessly from the Deity TC-1 timecode generator. Timecode ensures your backup WAV files will sync with your master file in post. This feature is especially useful for filmmakers who need to work with multiple cameras or devices. It ensures that your audio and video files are perfectly synced, thus making the editing process much smoother. Alternatively, the DBTX can be synced via the 3.5mm jack if you are using 3rd party timecode generators.

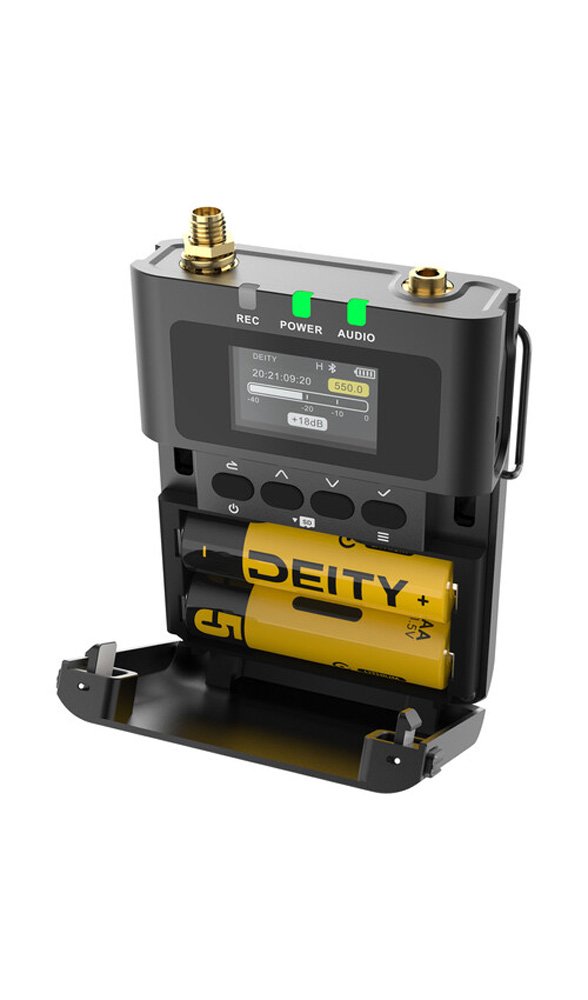

FULL COLOR LCD SCREEN
One of the standout features of the Theos Wireless System is its full-color LCD screen, which displays the status of the device. This screen makes it easy to monitor the system's performance, ensuring that you always have a clear view of your audio levels, battery life, and other critical information. This feature is especially useful for filmmakers who need to work in various locations and lighting conditions.
CNC MILLED ALUMINUM BODY
Both the DBTX and D2RX are made out of 2 blocks of CNC milled Aluminum. The result is a transmitter that only weighs 100 grams (3.5 oz.)
SMA ANTENNA PORTS
Both the DBTX and D2RX come with SMA antenna ports, which allow you to swap out antennas to fine-tune your frequency or replace them if they get damaged. This feature makes transporting your gear more compact in its case, which is especially useful when working on location.
UP TO 14HRS OF BATTERY LIFE
Theos Digital Wireless is capable of getting up to 14Hrs of battery life when paired with the 3000mAh Deity AA battery.
The D2RX and DBTX are able to be externally powered via their USB-C ports.
DBTX BATTERY LIFE
You can expect to get a full day out of your transmitter when running NiMH rechargeables in your transmitter, at max settings.
D2RX BATTERY LIFE
The D2RX will run for nearly 7hrs using rechargeable AA batteries. This makes running the D2RX super affordable for daily use.
REMOTE CONTROL VIA SIDUS AUDIO APP
The app allows you to perform frequency scanning and frequency assignment, frequency coordination between multiple receivers, gain staging, and remote triggering of the backup recorder. This means you can make adjustments to your audio settings without having to physically touch the device, making it easier to work with when you're on set.
The remote control feature is especially useful for filmmakers who need to work with multiple devices or those who need to make adjustments to their audio settings quickly. It saves time, and it ensures that you never miss a critical moment on set.
Features
Dual Channel ReceiverWideband Digital UHF spectrum; 550-960 MHzBuilt-in 32-bit float recorder in the transmitterRecordings are saved to a Micro SD card; up to 128GbCan wirelessly sync timecode from the Deity TC-1 timecode generatorBoth the transmitter and receiver can be remotely controlled via the Sidus Audio? appUp to 14hrs of battery life with lithium batteriesFull-color LCD screenCNC-milled aluminum chassisSMA antenna ports
Specifications
Transmitter:
RF Modulation? Proprietary Digital RF Modulation
RF Power - 10mW, 25mW, 50mW, 100mW*
RF Spectrum - 550 ~ 940Mhz**
RF Frequency Step?100KHz
RF Spacing? 700KHz
Antenna Connector? 50 ? SMA
Dynamic Range? 123dB
Distortion? <0.5%
Frequency Response? 20~20KHz
Low Cut? 0FF/75Hz/100Hz/150Hz
Mic Power? MIC-3V?MIC-5V, LINE
Mic Connector? 3.5mm TRS
Input Gain? 0~+30dBV
ADC Bit-Depth? 24
ADC Sampling-Rate?48
Dimensions(H x Wx D) 88.45x 65x17.8 mm
Timecode Reader / Generator?
Clock Accuracy? 0.15 PPM (1 Frame Out in 48 Hours)
Timecode Type? LTC(SMPTE)
Timecode Frame-Rates? 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF
Internal Recording?
Media: MicroSD Card (Flash Memory)
File Format: .wav BWF
Record Format?24/32bit float
EIN: -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)
Receiver?
RF Frequency Step?100KHz
RF Spacing? 700KHz
Antenna Connector? 50 ? SSMA
Sensitivity? -95dBm
Latency: 6.3ms
Dimensions(H x Wx D)89.47x66.81x20.06mm
Receiver Audio? Analog Output (x 2)
Dynamic Range?103dB
Distortion? <0.5%
DAC Bit-Depth?24
Output Type: Mono, Stereo, Headphone
