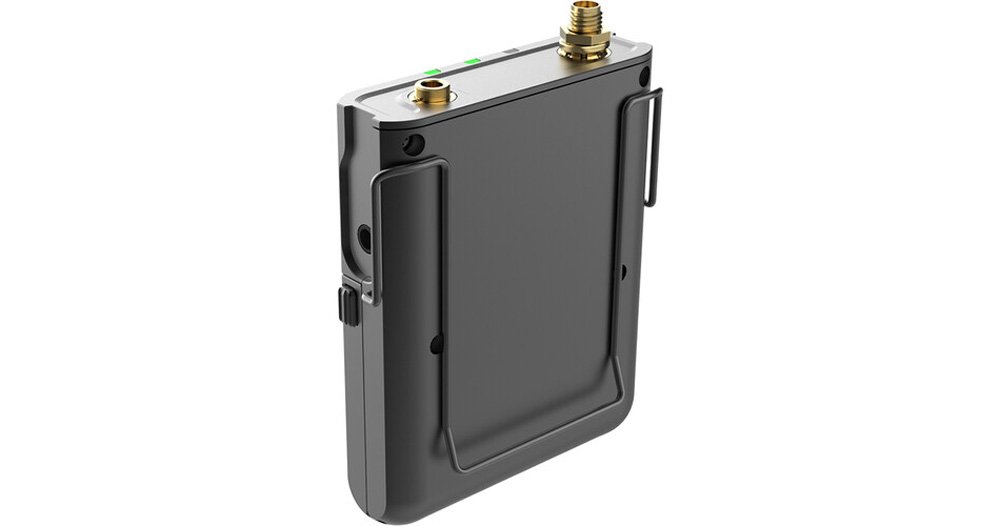

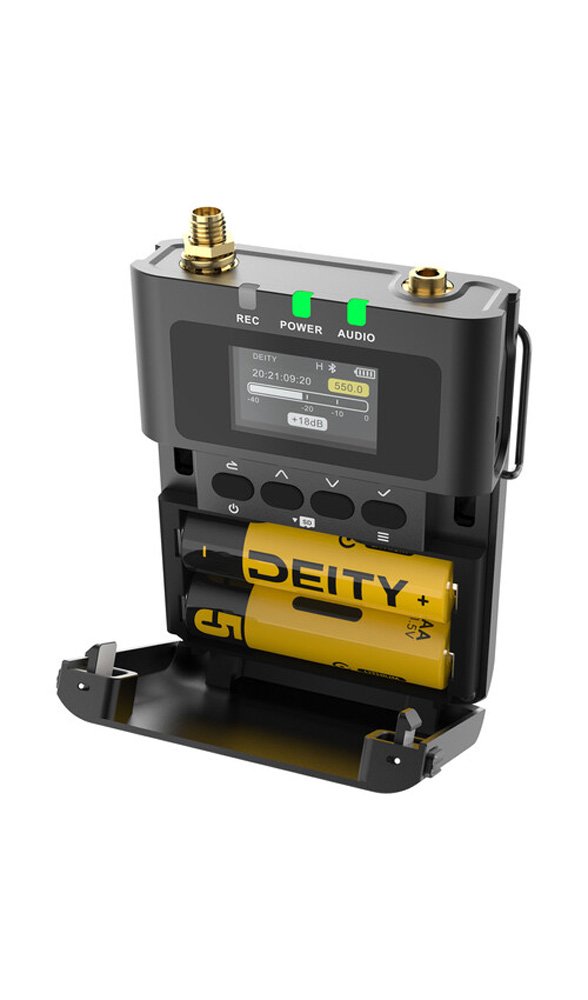

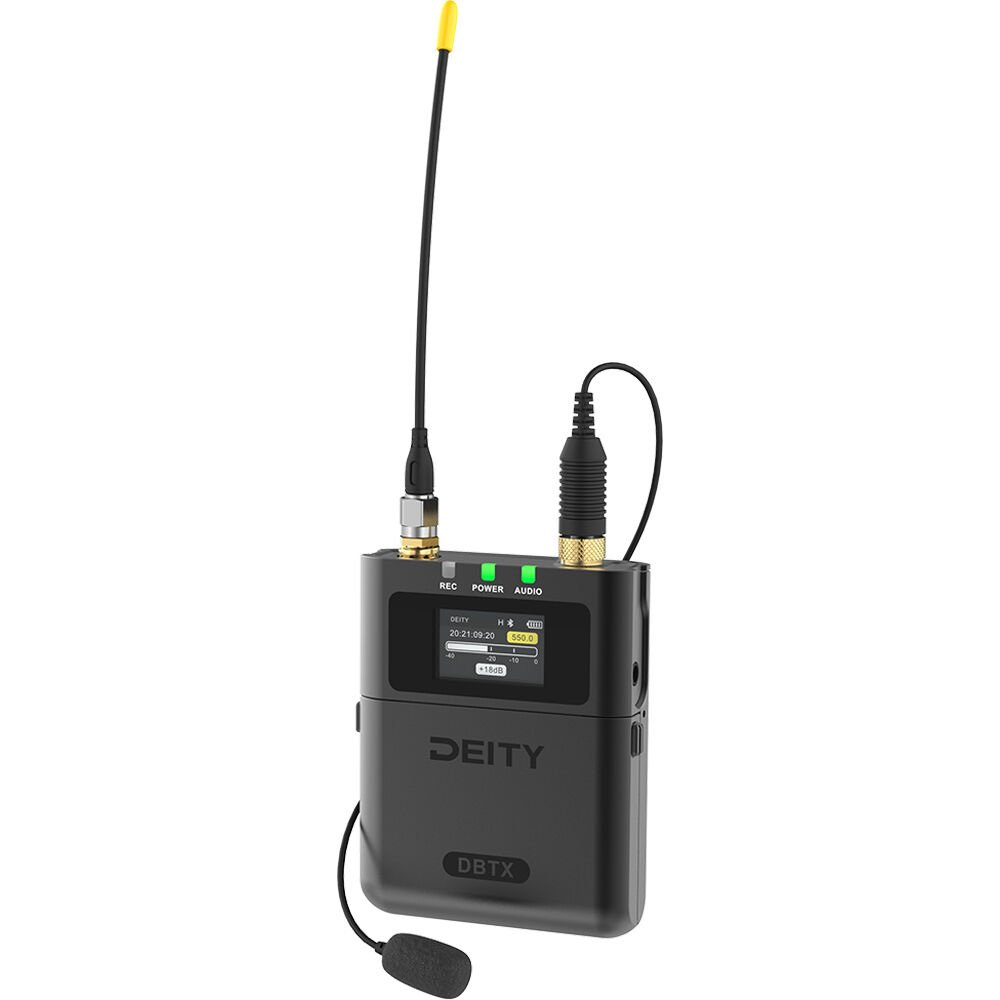

Deity Microphones THEOS DBTX Bodypack Transmitter
UPC/EAN #6971842188369
MPN #DTU0253D57
Digital wireless transmitter with wideband digital UHF spectrum and built-in 32-bit float recorder
As a filmmaker, one of the most important aspects of your work is sound. There is nothing more frustrating than discovering that your audio is unusable due to interference, dropped signals or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process seamless and stress-free.
Wideband UHF Spectrum
The Deity Theos Digital Wireless Microphone System sets itself apart by utilizing a broad UHF spectrum instead of the congested 2.4Ghz band. This system?s frequencies range from 550-960 MHz. (the actual band size and spectrum will depend on which block / regional kit is purchased). This helps ensure that your audio is free from interference and other issues that can occur when working in a crowded frequency range.
Using a wideband UHF spectrum is especially important for filmmakers who need to work in various locations where multiple devices might compete for frequency space. In such situations, Deity Theos Digital Wireless ensures that you always have a clear frequency to work with, thus lowering the risk of interference.
Remote Control via Sidus Audio App
The Deity Theos Digital Wireless Microphone System has a unique feature that allows remote control of both the transmitter and receiver through the Sidus Audio app. With this app, you can easily perform frequency scanning and assignment, coordinate frequencies among several receivers, adjust gain staging, and remotely trigger the backup recorder. This feature eliminates the need to physically handle the device, making it much more convenient when working on set.
The remote control feature is especially useful for filmmakers who need to work with multiple devices or those who need to make adjustments to their audio settings quickly. It saves time, and it ensures that you never miss a critical moment on set.
Full Color LCD Screen
One of the standout features of the Theos Wireless System is its full-color LCD screen, which displays the status of the device. This screen makes it easy to monitor the system's performance, ensuring that you always have a clear view of your audio levels, battery life, and other critical information. This feature is especially useful for filmmakers who need to work in various locations and lighting conditions.
SMA Antenna Ports
The D2RX come with SMA antenna ports, which allow you to swap out antennas to fine-tune your frequency or replace them if they get damaged. This feature makes transporting your gear more compact in its case, which is especially useful when working on location.
Features
Wideband Digital UHF spectrum; 550-960 MHz*Built-in 32-bit float recorder in the transmitterRecordings are saved to a Micro SD card; up to 128GbCan wirelessly sync timecode from the Deity TC-1 timecode generatorBoth the transmitter and receiver can be remotely controlled via the Sidus Audio? appUp to 14hrs of battery life with lithium batteriesFull-color LCD screenCNC-milled aluminum chassisSMA antenna ports
Specifications
Transmitter:
RF Modulation? Proprietary Digital RF Modulation
RF Power - 10mW, 25mW, 50mW, 100mW*
RF Spectrum - 550 ~ 940Mhz**
RF Frequency Step?100KHz
RF Spacing? 700KHz
Antenna Connector? 50 ? SMA
Dynamic Range? 123dB
Distortion? <0.5%
Frequency Response? 20~20KHz
Low Cut? 0FF/75Hz/100Hz/150Hz
Mic Power? MIC-3V?MIC-5V, LINE
Mic Connector? 3.5mm TRS
Input Gain? 0~+30dBV
ADC Bit-Depth? 24
ADC Sampling-Rate?48
Dimensions(H x Wx D) 88.45x 65x17.8 mm
Timecode Reader / Generator?
Clock Accuracy? 0.15 PPM (1 Frame Out in 48 Hours)
Timecode Type? LTC(SMPTE)
Timecode Frame-Rates? 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF
Internal Recording?
Media: MicroSD Card (Flash Memory)
File Format: .wav BWF
Record Format?24/32bit float
EIN: -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150ohm source impedance)
Receiver?
RF Frequency Step?100KHz
RF Spacing? 700KHz
Antenna Connector? 50 ? SSMA
Sensitivity? -95dBm
Latency: 6.3ms
Dimensions(H x Wx D)89.47x66.81x20.06mm
Receiver Audio? Analog Output (x 2)
Dynamic Range?103dB
Distortion? <0.5%
DAC Bit-Depth?24
Output Type: Mono, Stereo, Headphone
*100mW available only in the USA
