UPC/EAN #6971842184170     MPN #DTT0272D81

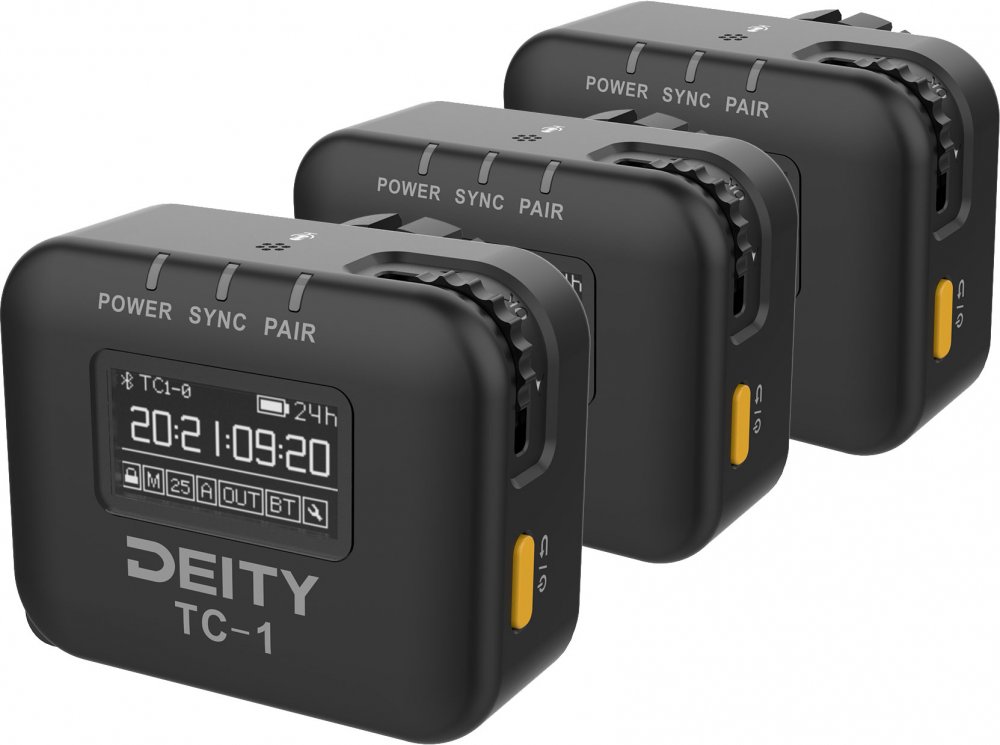

Deity Microphones TC-1 Wireless Timecode Box (3 Pack)


Financing available
Free shipping in Canada. Conditions

Wireless timecode generator with locking 3.5mm timecode port, Bluetooth 5.0, and support for all SMPTE timecode format

The TC-1 takes the best parts of timecode box units from the past and brings them all together into a timecode generator built for the future. We developed it to fit into your workflow, no matter how you work. You can wirelessly jam it from your phone or even wirelessly sync it from other boxes using our proprietary 8-channel 2.4G radio ecosystem. You can also hardwire jam it or use it to internally generate timecode and jam other devices.

Using our exclusive Bit Connectify?? technology you can control up to 20x TC-1 wireless timecode generator boxes from 250ft away. The TC-1 has 600% more control range than Bluetooth timecode boxes from leading competitors.

The TC-1 also features a secondary RF chip for syncing TC-1 to TC-1 devices from a range of 30ft. When syncing the timecode from the phone, you can transmit up to 250ft to the master TC-1 and then 30ft to each other TC-1 timecode box around the master node.

Each TC-1 timecode generator box features a TCXO with an accuracy of ±0.5ppm. And through firmware optimization, your footage will sync perfectly when you go to edit with less than 1 frame of drift in a 72-hour period.

You won't have to worry about your TC cables getting unplugged with the TC-1. The port is also compatible with other brands' non-locking 3.5mm TC cables.

With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been so easy or quick. With the TC-1 and other items (like the BP-TRX and the TC-SL1) you can use the workflow methods used by studio feature films.

The TC-1 timecode box features an on-board scratch microphone for when you're using a Mirrorless or Action Camera that only feature a stereo mic input.

We talked to members of the sound mixing community and made sure we answered your concerns. The TC-1's timecode port is a locking 3.5mm TRS connector. Never worry about your timecode cables becoming unplugged during a shoot.

Supported Deity Timecode Cables:
  • Deity C13 - Locking 3.5mm to 5-Pin Right Angle Camera Timecode Cable
  • Deity C14 - Locking 3.5mm to 5-Pin LEMO Timecode Cable
  • Deity C15 - Locking 3.5mm to BNC Timecode Cable
  • Locking 3.5mm Timecode Port
  • Bluetooth 5.0: Max Range 250FT
  • 2.4G Sync Radio; Max Range 30FT
  • Works with the app Sidus Audio
  • Supports all SMPTE Timecode Formats
  • Timecode Accuracy 0.5ppm
  • 1 Frame Drift Every 72 Hours
  • Showcases a 1" OLED Display
  • On-board Controls and Menu
  • USB-C Charging; 2 Hours to Fully Charge, Up to 28 Hours Battery Life
  • LED Status Lights Indicate Power, TC Sync, and Wireless Pairing
  • Timecode : SMPTE
    Wireless Type : 2.4G RF / Bluetooth 5.0
    Wireless Range : ? 30ft - 2.4G RF
    ? 250ft - BT 5.1LE
    Wireless RF Channels : 8
    Drift : < 1 Frame/24Hrs
    Frame Rates : 23.98, 24, 25, 29,97,
    29.97DF, 30
    Timecode Input / Output : Locking 3.5mm TRS
    Audio Track Built-In : Omni Microphone
    Battery Life : Up to 24Hrs
    Battery Type : LiPo
    Battery Capacity : 950mAh
    Charging Port : USB-C
    Charging Time : 3 Hours
    Mounting : Hook-n-Loop
    Dimensions : 53.4 x 40 x 21.8 mm
    Weight : 41g
    Temperature Range : -20C to +45C

    in the box:

    3*Deity TC-1 Wireless Timecode Box
    1*Deity Timecode Cold Shoe Mount
    1*Locking 3.5mm TRS to TRS Cable
    1*Deity Locking 3.5mm to BNC Timecode cable
    1*Locking 3.5mm to 5-Pin Right Angle Camera Timecode Cable
    1*3 in 1 charging cable
    1*USB-C to Type A Firmware Adapter
