Deity Microphones BF1 - Butterfly Antenna (470Mhz ~ 1GHz) Pair

UPC/EAN #6971842183098 MPN #DTR0289D50

$448.00 (Special)

Save $61.00, Regular $509.00

Be the first to write a review

Free shipping in Canada. Conditions

Kit of 2 x Butterfly Wideband Antenna including BNC cables, Antenna clamp mount and pouch

The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference, and a broadband antenna like ours that can cover all these bands without needing frequent adjustments.

SUPPORTS GLOBAL ONEBAND FREQUENCIES
The Deity Butterfly supports a ultra wideband of frequencies; 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem but also plenty of extra frequency bandwidth to support other brands wireless as well.

Now when you go into an antenna splitter, you can mix-n-match different blocks/bands.

WEATHER SEALED HOUSING
Our BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install.

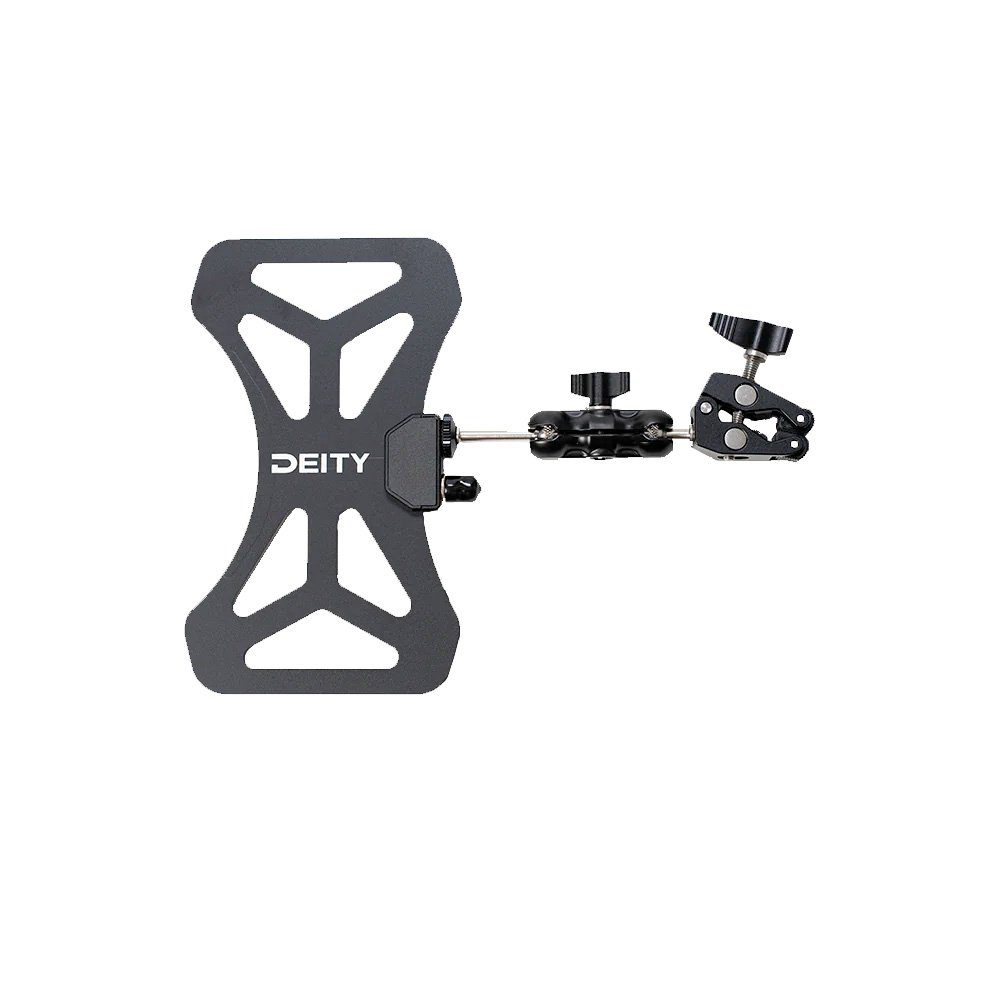

METAL MOUNT BRACKETS
Our mounting bracket is made out of CNC'ed Aluminum which provides a rugged and secure block for a 1/4" 20 threaded mounting hole.

The ball head pivot arms are also made out of 100% metal, making for a durable accessory.

*The Deity AMB1 not included

LINE OF SIGHT TEST RESULTS
Regarding line of sight signals, the BF1 beats other Biconical antenna (bowtie antenna) in a head to head signal strength test.

OBSCURED RECEPTION RESULTS
Regarding obscured signals, the BF1 meets or beats other Biconical antenna (bowtie antenna) on the market in a head to head signal strength test.

Features

Ultra Wideband Design

470MHz-1GHz

Rugged Build Quality

CNC Metal Mount

50Ohm BNC Connector

Omnidirectional pickup pattern

Compact Design

Specifications

Antenna Type: Passive
Frequency Range: 470MHz~1GHz
Gain: Ave +2.2dBi
Impedence: 50 Ohm
RF Connector: BNC
Standing Wave Ratio: <1.5 (550~750MHz)
Built-In Filter: None
Pickup Pattern: Omni-Directional
Mounting: 1/4"-20
Material Composite: Fiberglass
Dimensions (H x W x D): 19*11.5*15 mm, 7.5*4.5*.6 inch
Weight: 98 g (Antenna Only), 3.4 oz

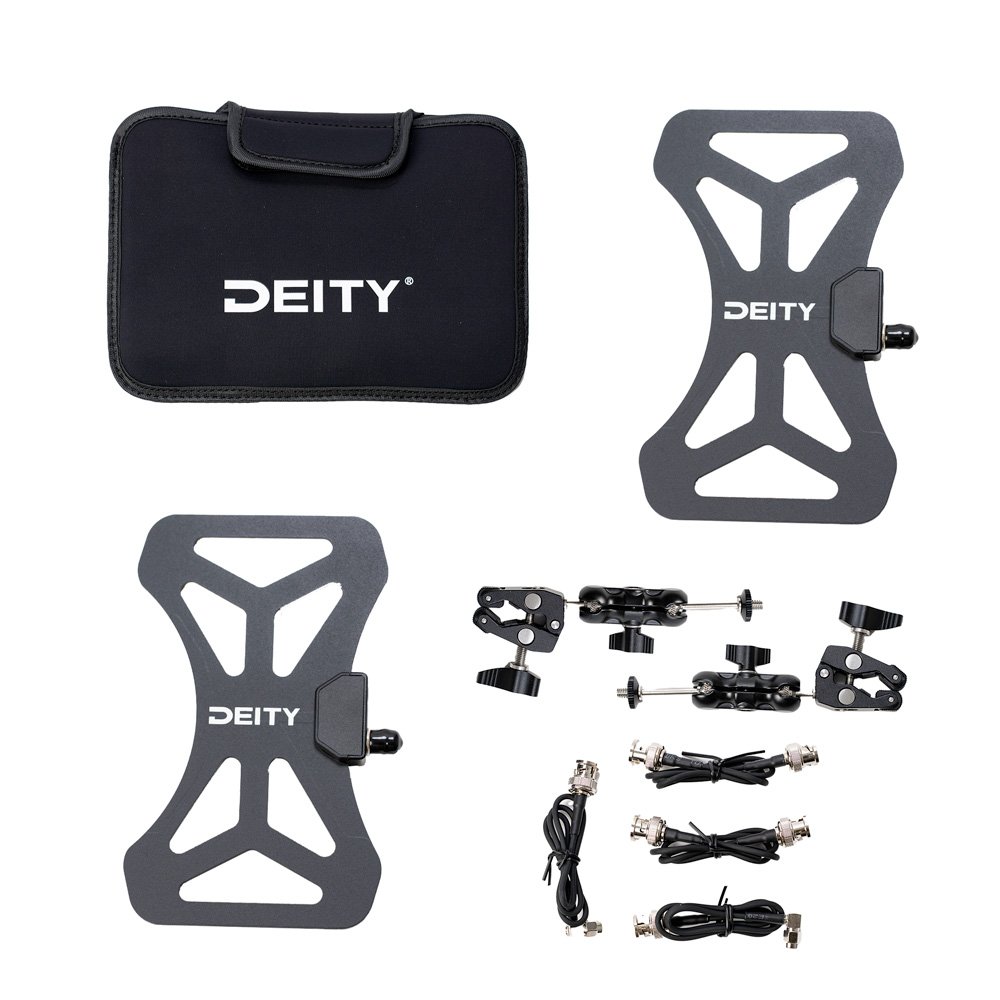

Included In Kit:
2x BF1 Antenna
2x Articulating mounting arm
2x BNC to BNC Cables
2x BNC to Right Angle SMA Cables
1x Carrying Case
