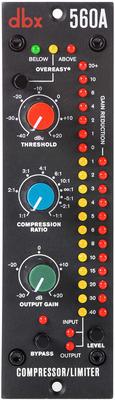

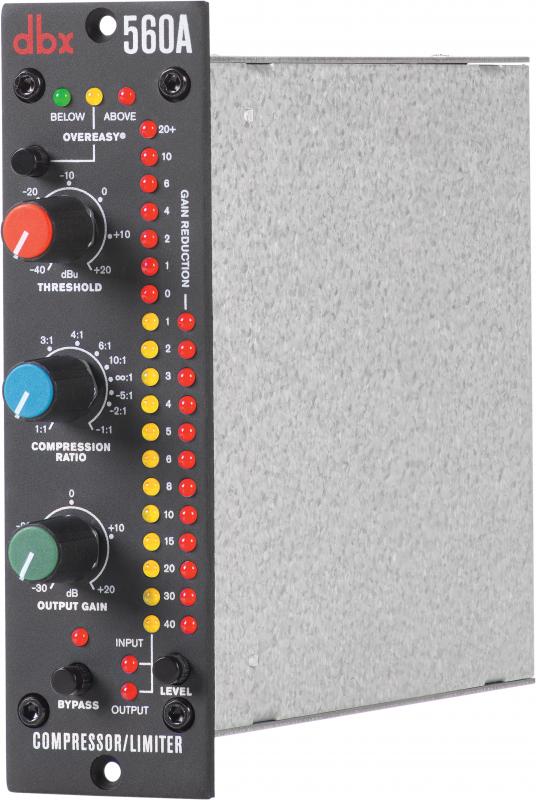

DBX 560A
UPC/EAN #691991000638
MPN #DBX560A
Load up your 500 Series rack with some dbx 560A Compressor/Limiters and go to work!
The dbx 560A Compressor/Limiter offers legendary VCA-based compression in the increasingly popular 500 Series format. dbx has a much-heralded history with modular processors dating back to our 900 Series and the 560A continues that tradition.
Featuring the same switch-selectable OverEasy and Hard Knee compression curves as our industry-standard dbx 160A rackmount processor, the dbx 560A will be your new workhorse compressor! With extremely wide-ranging threshold, ratio and output controls and true RMS level detection providing the most natural-sounding dynamics processing available, the 560A will provide punch to drums, bass, vocals, almost anything! It's also versatile enough to go from subtle compression to "brick wall" peak limiting.
Choose low ratios and OverEasy compression to expertly smooth out fluctuating vocal and instrumental levels, or use the 560A's Hard Knee compression and high ratios for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals.
The 560A's 19-segment, switchable Input/Output LEDs and 12-segment Gain Reduction LEDs provide precise analysis at a glance. And, the dbx 560A's unique "INFINITY +" inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway mix levels.
Features
OverEasy or classic hard knee compression with dbx's ultra-musical program dependent attack and release timesCompression ratio variable from 1:1 through infinity:1 to -1:1Precise RMS gain reduction and input/output meter displays with calibration control for different operating levelsTrue RMS level detectionExclusive Infinity+ compression using negative ratios
Specifications
Input Type: Electronically balanced/unbalanced, RF filtered
Input Impedance: 40k balanced, 20k unbalanced
Maximum Input Level: +22dBu
CMRR: >40 dB; typically >55 dB at 1 kHz
Output Type: Electronically balanced/unbalanced, RF filtered
Output Impedance: Balanced 30 , unbalanced 15
Maximum Output Level: +22dBu
Frequency Response: 20 Hz - 20 kHz, + 0/-0.5 dB; 0.5 Hz - 100 kHz, +0/-3 dB
Noise:
Write a review about the DBX 560A
![]()
5.0
Fred St-Gelais
Montreal
November 13, 2021
Just like the original...
Been using a pair of original 160a's for over 20 years. These sound the exact same. Not sure how they managed to cram them into series 500 form factor but who cares. They deliver.
