Dan Dugan Model E-1A Automatic Mixing Controller
MPN #MODEL-E-1A
Automatic mixing controller with unbalanced analog audio inputs and outputs

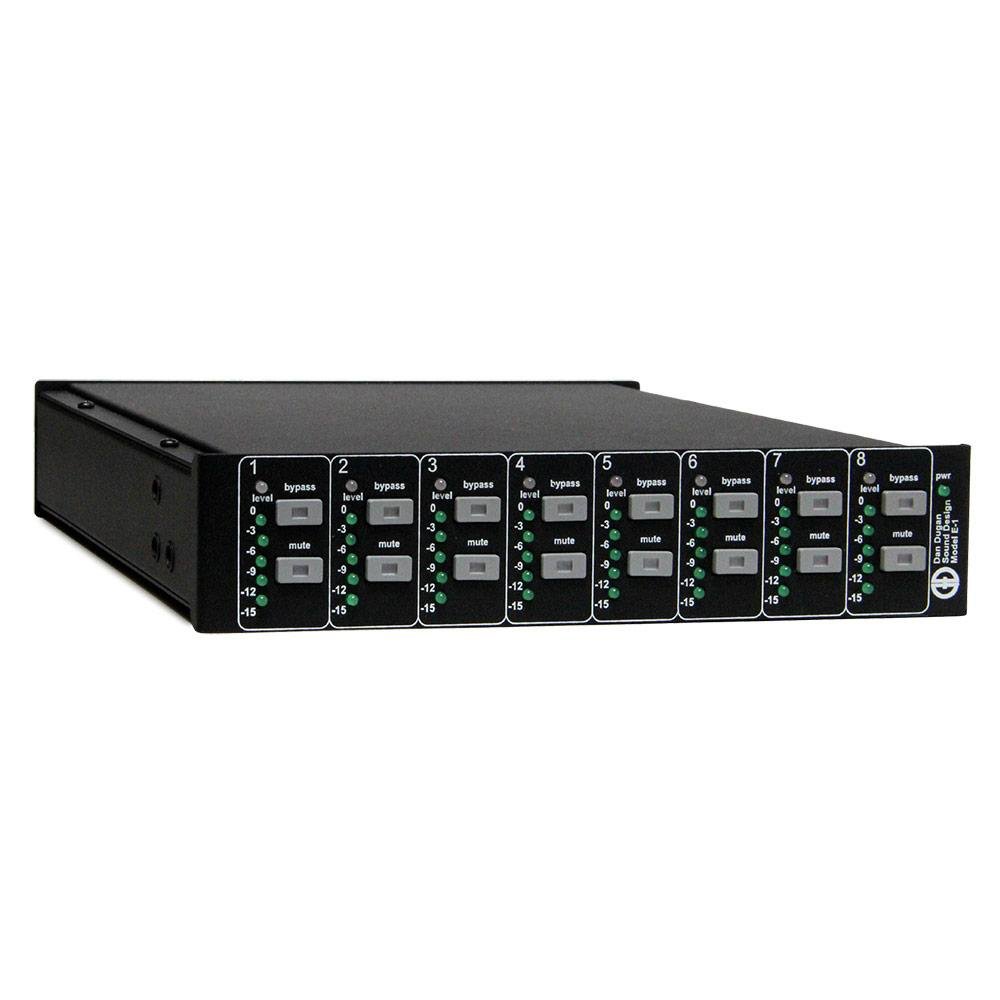

The Model E-1A Automatic Mixing Controller helps professional audio mixers handle multiple live mics without having to continually ride their individual faders. This eight-channel (analog) or sixteen- channel (digital) signal processor patches into the input insert points of an audio mixing console.
It detects which mics are being used and makes fast, transparent cross-fades, freeing the mixer to focus on balance and sound quality instead of being chained to the faders. The Model E-1A's voice-controlled crossfades track unscripted dialogue perfectly, eliminating cueing mistakes and late fade-ups while avoiding the choppy and distracting effects common to noise gates.
Features
Eliminates late upcutsReduces PA feedback and studio noiseEight channels analog or sixteen channels digitalDugan Control Panel for Java includedChannels may be grouped into three independent auto mixers Half-rack size " mount two in one RULink up to eight units for up to 128 channels
Specifications
analog audio inputs: unbalanced, 6 kOhm, -22 to +4 dBu nominal level, +21 dBu maximum
analog audio outputs: unbalanced, 100-Ohm source, drives a 600-Ohm load, +21 dBu maximum
output noise: less than -91 dBu (A-wtd); 112 dBA dynamic range
digital i/o:
ADAT optical, 48 kHz/24 bit (will operate with 44.1 kHz digital I/O)
Due to the Model E-1's compact size and close spacing of the ADAT connectors, some large cables may not fit. The maximum cable width is 0.48 in (12 mm).
frequency response: 10 Hz to 22 kHz, +0/-1 dB
crosstalk: -81 dB @ 20 kHz
distortion: less than 0.003% THD+N at +21 dBu
gain: unity
a/d and d/a: 48 kHz/24 bit (will operate with 44.1 kHz digital I/O)
audio latency: 2 ms
optical linking: up to 8 units (128 channels) may be linked; links with Models D-2, D-3, E, E-1, E-1A, E-2, E-3, and Dugan-MY16
Connectors

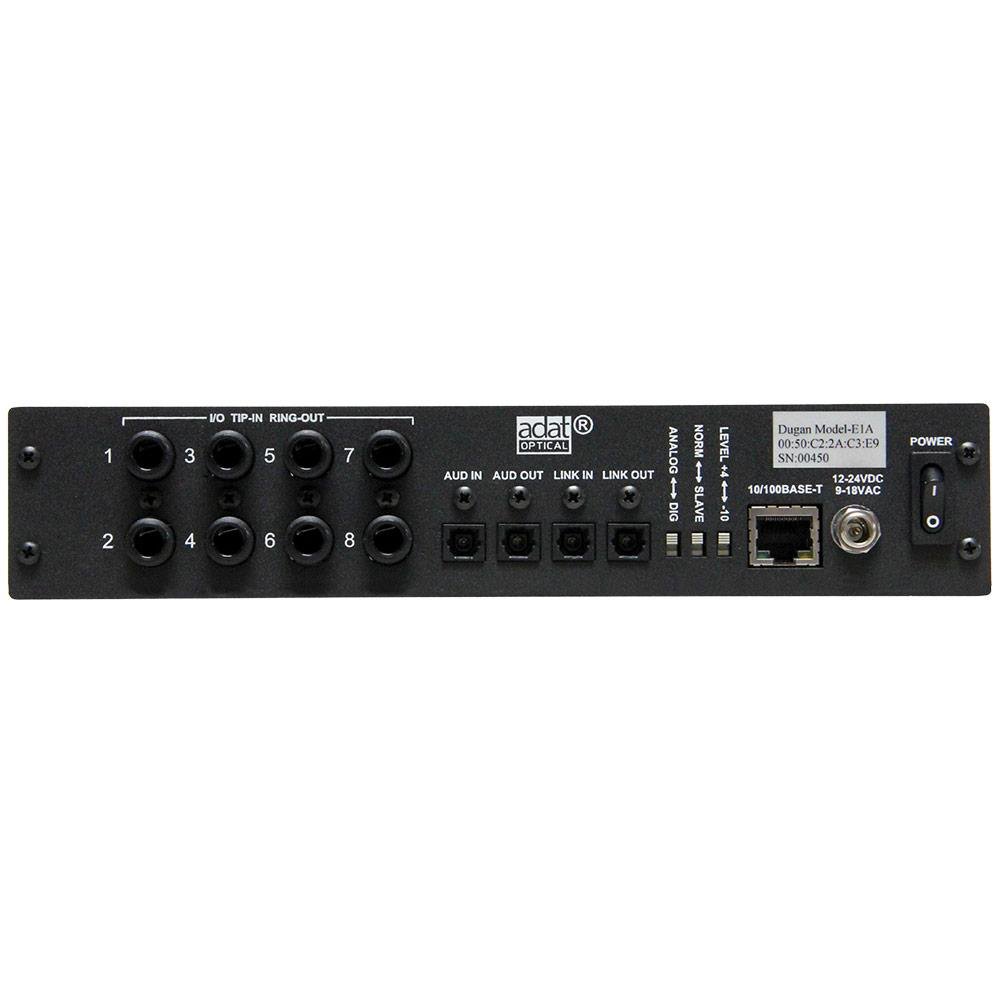

Audio: 1/4-in TRS; tip input, ring output
10/100 BASE T: RJ-45
Linking, Digital I/O: ADAT optical
Power: coaxial 5.5 mm o.d., 2 mm i.d.
power
nominal 12 VDC 1.3 A maximum; accepts 9"24 VDC, either polarity, or 9"18 VAC separate power supply unit; Input: 100-240 VAC, 50-60 Hz, 0.7 A; Output: 18 VDC, 1.33 A; Approved UL, GS, CE, FCC, CCC, LPS
dimensions
1RU H = 1.75 in (4.5 cm) D = 8.3 in (21 cm) W = 8.75 in (22.2 cm)
rack mounting
parts supplied for mounting one or two units in 1RU of 19-in rack
weight
3.4 lb (1.5 kg)
7.0 lb (3.2 kg) in shipping box with power supply
Applications
News panels, sports commentary
Conference reinforcement, video trucks
Film and television dialogue, reality shows Multiple wireless mics for theater
Boardrooms, civic meeting rooms, community TV Teleconferencing and distance learning
Houses of worship
