D.W. Fearn VT-7 COMP
MPN #VT-7
Stereo/dual mono tube compressor, PWM control, class-A path, HPF sidechain, +22 dBm output, 0-20 dB GR, ultra-transparent for mix and mastering
The VT-7 from D.W. Fearn is a premium vacuum tube stereo/dual mono compressor designed for mastering, mix bus, and tracking applications where musical transparency and sonic refinement are paramount. Built with a fully Class-A vacuum tube audio path, the VT-7 delivers the warmth and smoothness of vintage compression with modern control and reliability. The gain reduction circuit emulates the behavior of classic tube compressors without relying on hard-to-source tubes, while the PWM (Pulse Width Modulation) control circuitry offers precise and stable compression dynamics.
With the ability to operate in dual mono or stereo link modes, and a third mode featuring a high-pass sidechain filter for low-end management, the VT-7 offers flexibility for diverse material - from bold rock mixes to subtle jazz and classical tracks. It maintains sonic transparency even under heavy gain reduction, offering smooth, musical results that add polish and presence without introducing noticeable artifacts.
Features
All Class-A Tube Signal Path: Delivers warm, transparent compression with a smooth, musical character.Stereo or Dual Mono Operation: Use each channel independently or link them for stereo compression.Modern PWM Control: Combines classic tube sound with advanced solid-state Pulse Width Modulation control for consistent performance.High-Pass Sidechain Option: Reduces low-frequency sensitivity in stereo mode to preserve bass energy and balance.Transparent to Musical: Gentle compression for jazz and classical or more pronounced control for rock, pop, and mastering.Wide Frequency Response: Maintains clarity from deep lows to extended highs - ideal for full-range sources.Transformer-Balanced I/O: Custom transformers deliver clean, high-headroom operation with +22 dBm max output.Precise Gain Control: Provides up to +15 dB gain and 0??"20 dB gain reduction range.Built for High-End Studios: Matches the D.W. Fearn VT series with rugged 3RU chassis and signature sound quality.
Specifications
General Specifications
Product Type: Stereo/Dual Mono Vacuum Tube CompressorApplication: Tracking, mixing, masteringAudio Path: All Class-A vacuum tubeGain Reduction Control: Solid-state Pulse Width Modulation (PWM) circuitryChannels: Dual mono or stereo linkedSidechain HPF: Switchable high-pass filter at ~100 Hz in link modeConstruction: Heavy-duty chassis, hand-built quality
Audio Performance
Input Load Impedance: 32k ohms, transformer-balanced bridgingNominal Input Level: +4 dBmMaximum Input Level @ 20 Hz: +25 dBmGain: Unity to +15 dBFrequency Response:+/-0.2 dB from 20 Hz to 20 kHz+/-0.5 dB from 11 Hz to 28 kHz-3 dB at 0.5 Hz and 65 kHzTHD + Noise: <0.05% (20 Hz to 20 kHz)Signal to Noise Ratio: >=78 dB
Output Specifications

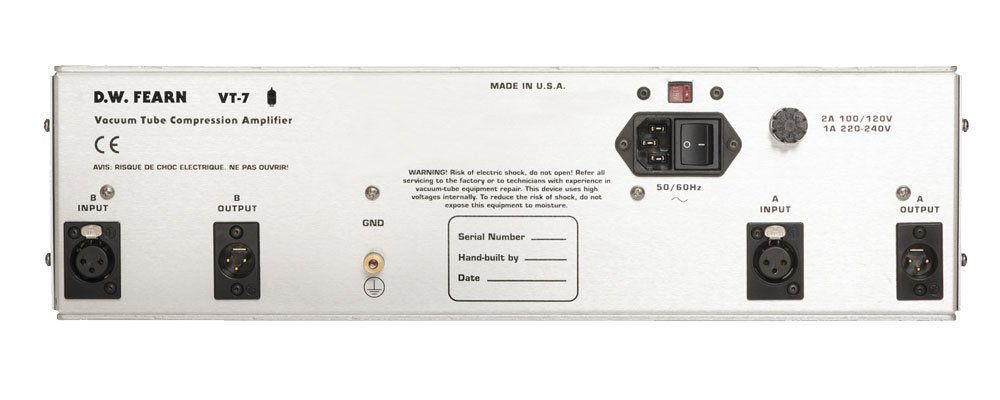

Output Type: Transformer-balancedSource Impedance: 115 ohmsMaximum Output Level: +22 dBm into bridging input (balanced or unbalanced)Gain Reduction Range: 0 to 20 dB
Power Requirements
Voltage: Selectable 120 or 220 VACFrequency: 50/60 HzPower Consumption: 85 W
Physical Dimensions
Width: 19 in (48.26 cm)Height: 5.25 in (13.34 cm)Depth: 13 in (22.9 cm)Unit Weight: 22 lbs (9.55 kg)Shipping Weight: 28 lbs (12.27 kg)
Write a review about the D.W. Fearn VT-7 COMP
![]()
5.0
Daryl
Woodstock NB
December 31, 2017
The Final Touch
I have a few compressors and the VT-7 I really like. You can hit it hard and there is still air on top. It is transparent to a point. It uses tubes so you get that tube sound but not over powering. It is buttery smooth. It does what it does and is in a league of its own when it comes to this style of compressor.
Read moreGlad I have it in my rack.. I have lots of red in my rack..Highly recommended.
