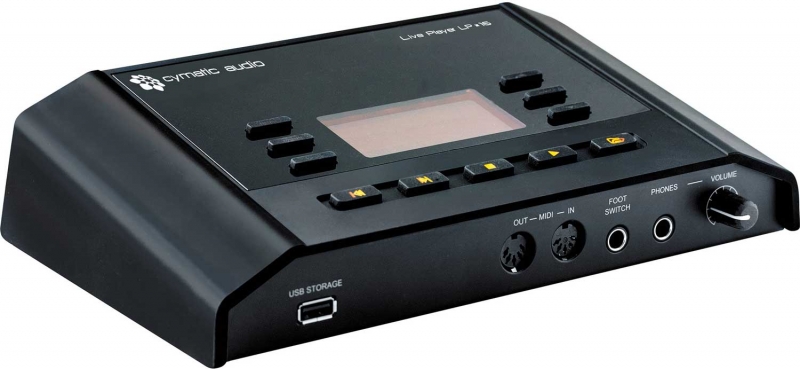

The Cymatic Audio Live Player LP-16 is the easiest to use direct from USB Playback System, offering a 16-track audio player with standard MIDI File playback capabilities, and dedicated Footswitch Start and Stop functions.

The LP-16 works as a dedicated multi-track player for live performances, while sparing users the hassles of using a laptop and computer audio interface in a live environment. It is perfect for backing tracks, virtual sound checks, triggering synthesizers or samplers, driving light shows and controlling devices.

LP-16 lets you make changes to the playlist on the fly, even while playing. Now you can easily adapt to set change and crowd requests!

The free uTool software allows you the easily assign wave files output channel, create & manage playlists, and even stores the settings of the internal mixer with each song.

Used in connection with a Windows PC, Mac or iPad. the LP-16 also serves as an 18-output/ 2-input USB audio interface. With a large number of outputs, the individual tracks of a multi-track DAW session can easily be connected to the individual inputs of an analog studio mixer, perfect for analog summing and mixing "out of the box", imparting classic analog flavor to your next mix session.

Direct from USB hard drive multi-track playback (16 tracks at 24-bit, 44.1/48kHz)

Creation and editing of settings and playlist files offline, using uTool software

MIDI file playback fully synchronized to audio tracks

16 unbalanced analog 1/4" tip-sleeve outputs

2-input / 18-output USB audio interface, 24 bit/44.1/48 kHz USB Class Compliant

Mac OS-X compatible: Core Audio plug and play drivers

Windows PC compatible (Windows XP, Vista, 7 & 8 32- bit/64-bit) WDM and ASIO drivers.

IPad compatible: Plug and play. USB adapter required

LINE OUTPUTS:

Full-scale output: 8.2dBu, 2 Vrms

Frequency response: ± 0.2 dB, 20 Hz-20 kHz

THD+N @ 0dBFS (1kHz sine wave): -85dB, < 0.005, 20 Hz-20 kHz

THD+N @ -6dBFS: < -82dB, < 0.008, 20 Hz-20 kHz

SNR: > 100dB, < 0.001%, 20 Hz-20 kHz

Crosstalk: < -95 dB, 20 Hz- 20 kHz

HEADPHONES OUTPUT:

Full-scale output: 8.2dBu, 2 Vrms

Frequency response: ± 0.2 dB, 20 Hz-20 kHz

THD+N @ 0dBFS (1kHz sine wave): -80dB, < 0.005% Vrms, 20 Hz-20 kHz

SNR: > 90 dB, 20 Hz-20 kHz

STEREO LINE INPUT:

Full-scale input: Unbalanced, +8.6dBu, 2 Vrms

Frequency response: ± 0.2 dB, 20 Hz-20 kHz

THD+N @ -1dBFS: -73dB, < 0.022% Vrms, 20 Hz-20 kHz

SNR: >95dB, A-weighted
