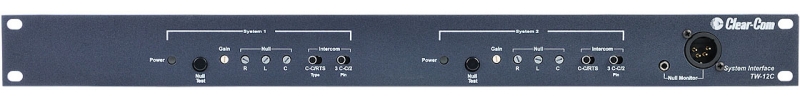

Clear-Com/RTS System Interface Rack Mount (1RU), connects Clear-Com to Clear-Com or Clear-Com to RTS systems



TW-12C connects a single channel of intercom from one system to another. Opt isolation eliminates hums and buzzes. Compensates for level and impedance differences between systems. Allows Clear-Com-to-Clear-Com, Clear-Com-to-RTS, and RTS-to-RTS system configurations. Powered by the connected intercom system. Translates "call" signals in both directions.
  • System isolation for: Clear-Com to Clear-Com, Clear-Com to RTS, RTS to RTS
  • Eliminates grounding problems between intercom systems
  • Matches gains between systems
  • Passes through and translates signaling
  • Hybrid nulling up to 40 dB
  • Built-in setup tone
  • Powered directly from connected intercom system
  • Clear-Com Format

    Line Characteristics
  • Max Level Before Clipping : >=3dBu
  • Impedance: >=10K

  • Signalling
  • Receive: <=4 VDC
  • Send: >=11VDC

  • RTS Format

    Line Characteristics
  • Max Level Before Clipping : >=5dBu
  • Impedance: >=10K

  • Signalling Tone
  • Send frequency: 20kHz ±100Hz
  • Receive frequency: 20kHz ±500Hz
  • Send level: >=-6dBu
  • Receive level: <=-25dBu

  • General Characteristics

    Frequency Response
  • Partyline - Partyline: 200-8KHz

  • Distortion
  • Partyline - Partyline: <=0.2%

  • Max Gain
  • Clear-Com - RTS: >=9dB
  • Clear-Com - Clear-Com: >=4dB
  • RTS - Clear-Com: >=-1dB
  • RTS - RTS: >=4dB

  • Min Gain
  • Clear-Com - RTS: <=1dB
  • Clear-Com - Clear-Com: <=-4dB
  • RTS - Clear-Com: <=-9dB

  • Power Requirements
  • Input Voltage Range: 20-30VDC
  • Input Current (average): <=50mA

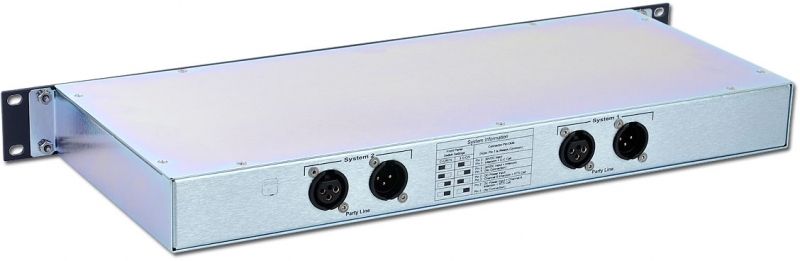

  • Rear Panel Connectors
  • Rear panel: (2) XLR3M (1 per channel)
  • (2) XLR3F (1 per channel)

  • Front Panel Connectors
  • Headset: (1) XLR4M
  • TS1 Earphone: (1) 3.5mm Jack Socket

  • Front Panel Controls and Indicators
  • Power: (2) Green LED (1 per channel)
  • Null Test Button : (2) Buttons (1 per channel)
  • Gain Level Adjust: (2) Controls (1 per channel)
  • Null Adjust: (6) Controls (3 per channel)
  • Connection Type Switch: (2) Switches (1 per channel)
  • Pin Connection Select Switch: (2) Switches (1 per channel)

  • Dimensions
  • 1.75in. H x 19in. W x 7.25in. D
  • (45 x 483 x 185 mm)

  • Weight
  • 5.63 lbs. (2.56 Kg)
