MPN #PS-704

$2305.00

Financing available
Free shipping in Canada. Conditions

4-Channel 2-Amp Rack Mount Universal Power Supply UL Listed (1 RU)



The PS-704 is a four-channel, single-rack-space intercom power supply that features Clear-Com's "fail-safe" design for maximum reliability. The power supply delivers 2 amps at 30 volts, supplying power for one to four channels of intercom.
  • Provides up to 2 amps at 30 Volts
  • Supports up to 40 beltpacks, 10 speaker stations, or 12 headset stations
  • Exclusive Intelligent Fault/Overload Sensing (IFOS) for system reset
  • Switchable line terminations for each channel
  • Built-in test tone generator for set up and diagnostics
  • UL listed and CE certified
  • Line and load regulated
  • Short-circuit protected
  • Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K

  • Frequency Response
  • Program Input - Party-line: 200 - 20KHz ± 3dB

  • Max Distortion
  • Program Input - Party-line : <= 0.2%

  • Noise
  • Program Mic Input - Party-line:< -70dBu

  • Max Gain
  • Program Input - Party-line: >= -16dB

  • Min Gain
  • Program Input - Party-line: <= -20dB

  • Mains Power
  • Input Voltage Range: 100 - 240 VAC
  • Input Frequency Range: 50 - 60 Hz
  • Input Power : <= 60 VAC
  • Output Voltage: 30 VDC ± 0.5V
  • Output Current per Channel (Continuous): 1.2 A
  • Output Current per Channel (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period)
  • Short Circuit Recovery Time (1st short): <= 0.5 sec
  • Short Circuit Recovery Time: >= 20 shorts in 20sec) <= 20 sec

  • Station Capacity
  • Up to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over both channels

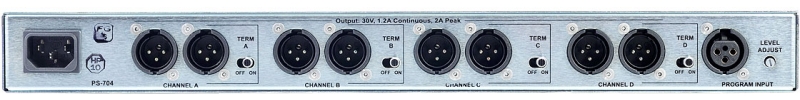

  • Rear Panel Connectors
  • Intercom: (8) XLR-3M (2 per channel)
  • Program: (1) XLR-3F
  • AC Power: IEC 320 connector

  • Rear Panel Controls
  • (4) Termination On-Off switches
  • (1) Volume control

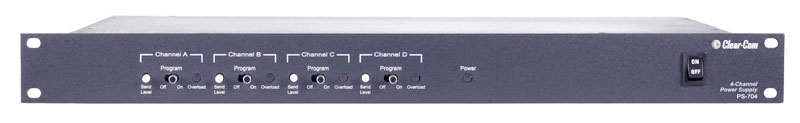

  • Front Panel Controls & Indicators
  • (4) Program switch
  • (4) Send level controls
  • (4) Overload LEDs
  • (1) Power indicator LED
  • (1) Power switch

  • Environmental
  • 32 - 122F (0 - 50C)

  • Dimensions
  • 19 in. W x 1.75 in. H x 7.5 in. D
  • (483 mm x 44 mm x 190 mm)

  • Weight
  • 6.16 lbs. (2.80 kg)
