Clear-Com PK-7
MPN #PK-7

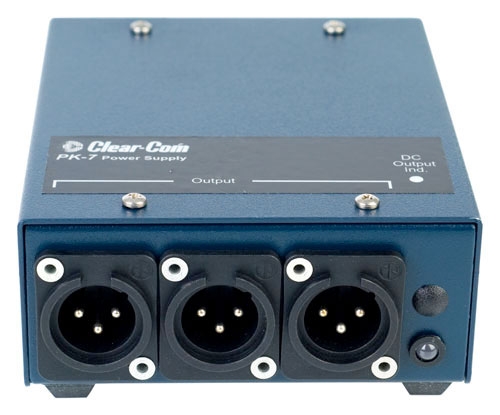

Encore Single-Channel 0.4-Amp Portable Power Supply Module. Includes Universal Power Supply. Three XLR-3 Male Connectors For Partylines On The Rear Panel
The PK-7 power supply is housed in a rugged metal chassis and has the capacity to power up to 12 RS-701 headsets. It supplies 24 volts DC at 0.4 amp to the system. The fully regulated, current-limited unit also provides proper termination for the intercom system. The PK-7 features both short-circuit and reverse polarity protection.
Features
Single-Channel 0.4 Amp Portable Power SupplySupports up to 30 Que-Com headset stations or 12 RS-701 beltpacksLine and load regulatedShort-circuit protected
Specifications
Mains Input
Input Voltage: 100-240 VACInput Frequency Range: 50-60Hz
Power Output
Output Voltage: 22-30 VDCOutput Current: >=400mAOutput Connectors: (3) XLR-3F
Front Panel Connectors and Indicators
Input Connector: (1) 2.1mm
Co-axial connector
Indicators: (2) LEDs: red (overload), green (normal)
Environmental
32 - 122 F (0 - 50 C)
Dimensions
3.8 in. W x 2 in. H x 4.7 in. D(97mm x 50.8mm x 119mm)
Weight
1.0 lbs. (0.457 kg)Transformer: 0.90 lbs. (0.41 kg)
