MPN #KB-701
Clear-Com KB-701

$935.00

Financing available
Free shipping in Canada. Conditions

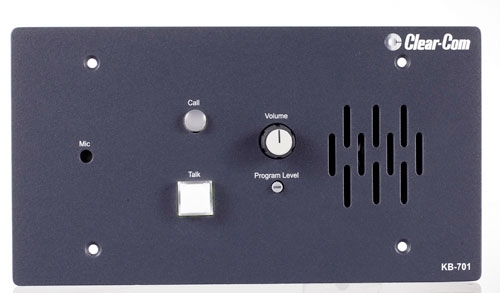

1-Channel Flush-Mount Push-To-Talk Speaker W/Built-In Microphone Station



The KB-701 remote speaker station connects to a single channel of party-line intercom and operates in half-duplex mode. It features both an integral speaker and a flush mount electrets microphone with mic limiter and a push-to-talk button.
  • Half-duplex, push-to-talk functionality
  • Four modes of operation that are internally programmable
  • Microprocessor controlled logic and switching
  • Balanced local program input with separate level control
  • Visual and audible call signaling
  • Optional 4-wire daughter board for flexibility
  • Wall or console mountable, or optional V-Box for portable or desktop use
  • Built-in speaker
  • Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K

  • Speaker Output
  • Load Impedance: >= 4
  • Max Output Level before 1% Distortion: 20dBu ± 2dBu

  • Party-line Output
  • Off Noise: < -74dBu
  • Output Impedance: >10K

  • Party-line Input
  • Crosstalk: < -60dB
  • Max level before Clipping: >= 12dBu

  • Frequency Response
  • Program Input - Speaker Out: 200 - 18KHz ± 3dB
  • Party-line - Speaker Out: 200 - 18KHz ± 3dB

  • Max Distortion
  • Program Input - Speaker Out: <= 0.5%
  • Party-line - Speaker Out: <= 0.5%

  • Noise
  • Program Input - Speaker Out: < -60dBu
  • Party-line - Speaker Out: < -50dBu

  • Max Gain
  • Program Input - Speaker Out: >= 24dB
  • Party-line - Speaker Out: >= 40dB

  • Power
  • Input Voltage Range: 20-30 VDC
  • Input Current (Idle): <= 90mA
  • Input Current (Max): <=110mA

  • Internal Connectors and Jumpers
  • Intercom: Line Five terminal connector
  • Program Input: Three terminal connector
  • Option Switches: Three DIP switches

  • Front Panel Controls & Indicators
  • (1) Program level control
  • (1) Intercom level control
  • (1) Talk button
  • (1) Call button
  • (1) Integral microphone

  • Environmental
  • 32 - 122o F (0 - 50o C)

  • Dimensions
  • 8.5 in. W x 4.5 in. H x 1.75 in. D
  • (210 mm x 114 mm x 44 mm)

  • Weight
  • 1.04 lbs. (0.47 Kg)
