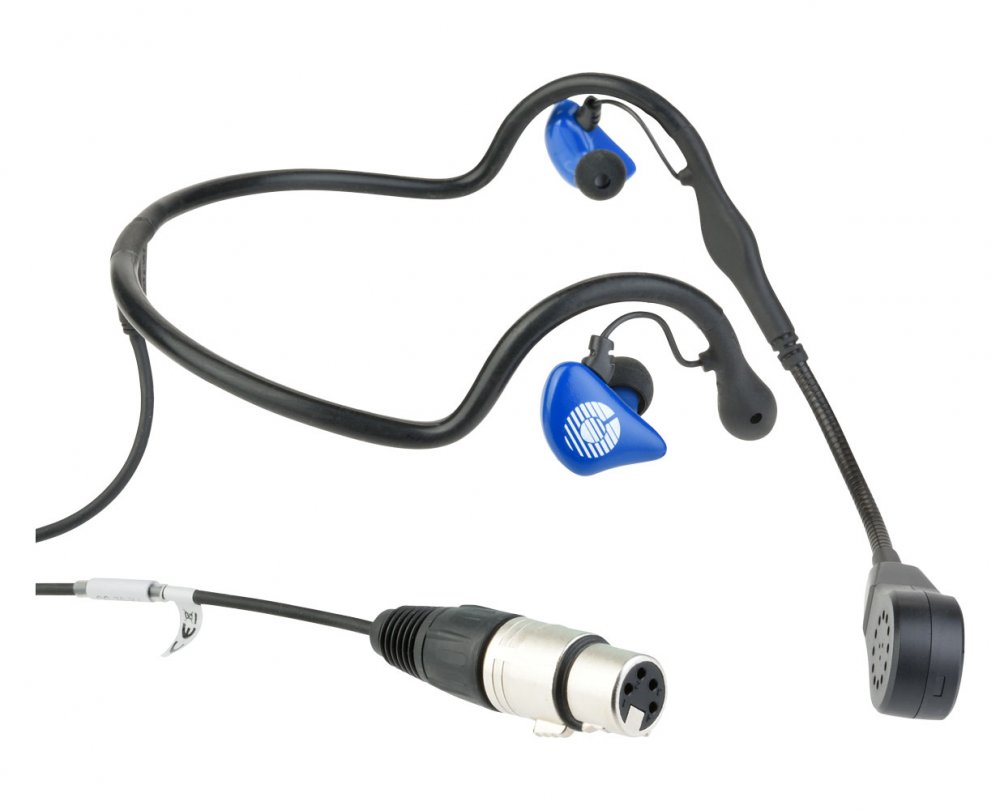

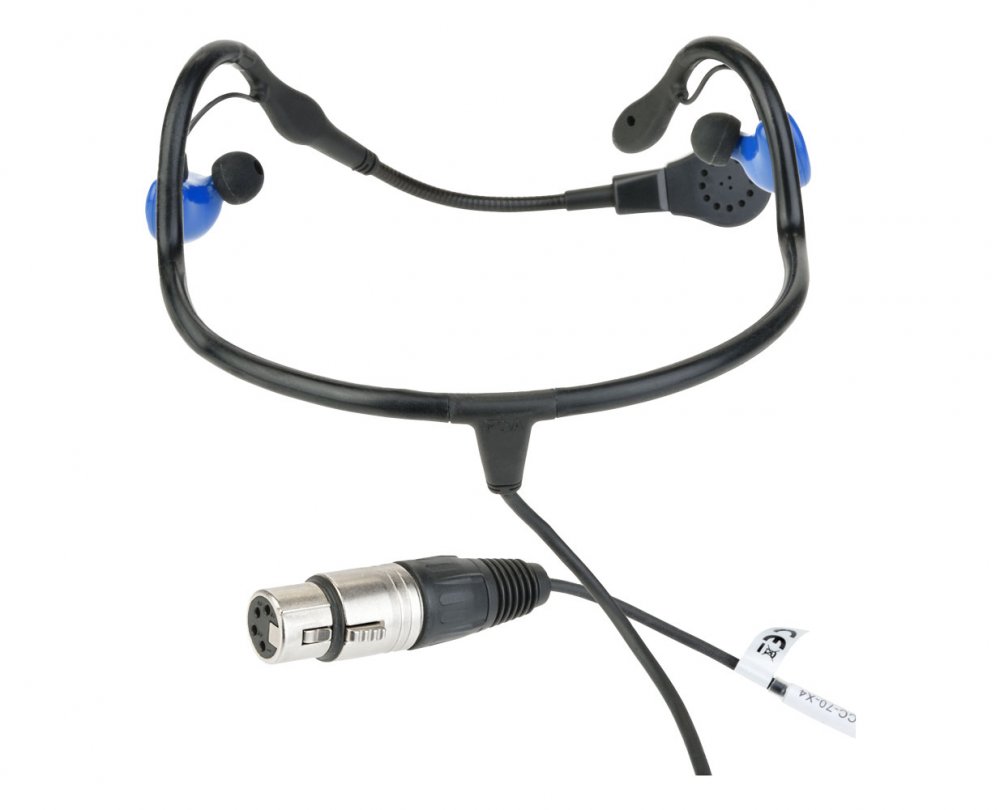

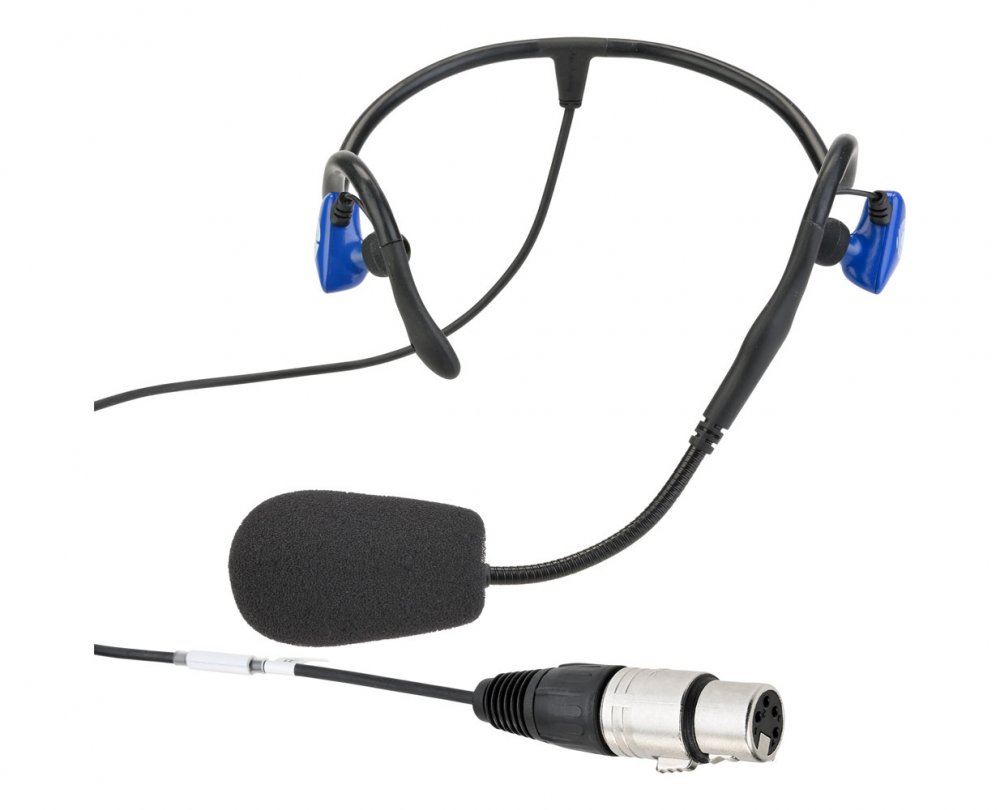

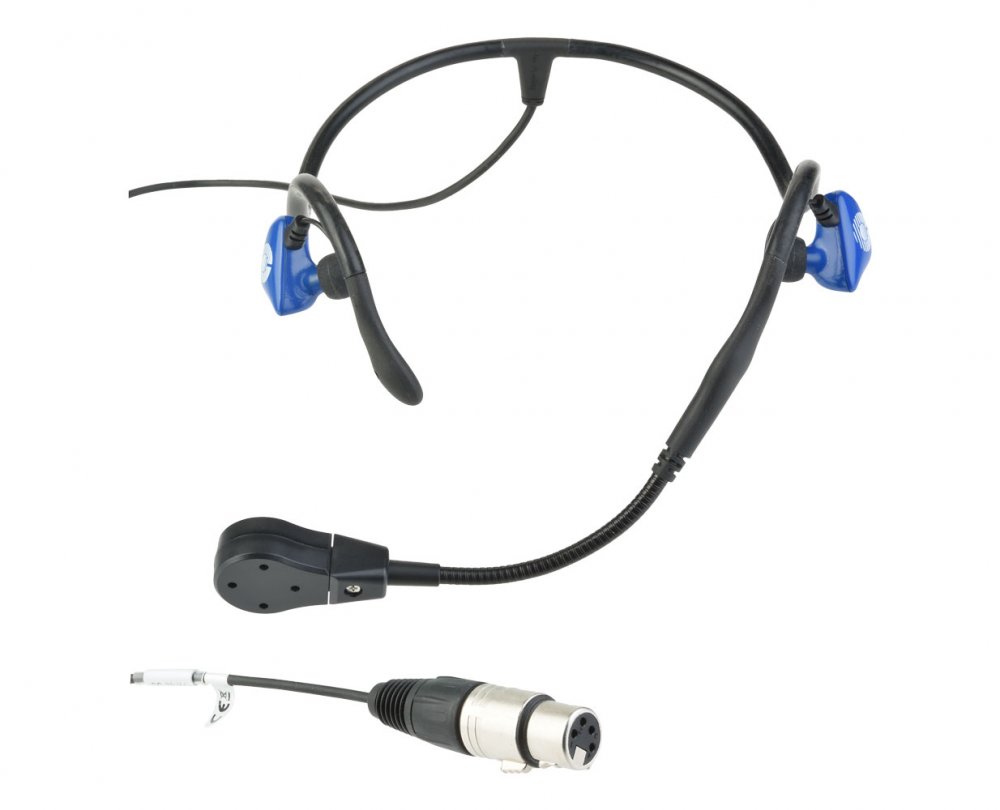

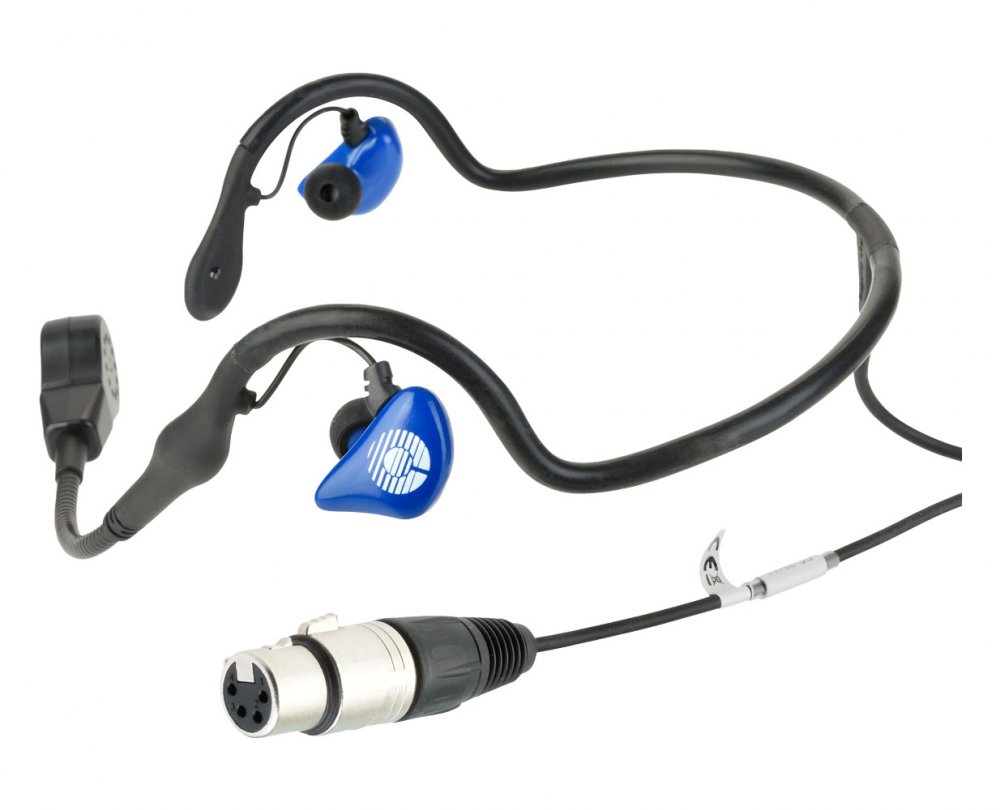

Clear-Com CC-70
MPN #CC-70-X4
Dual-ear wraparound headset, 30Hz"14kHz response, noise-canceling mic, 2.3oz, under-helmet fit, 4ft cable, XLR-4F Clear-Com, includes 3 ear tip sizes
Engineered for comfort and clarity, the CC-70-X4 is a dual ear, wrap-around headset designed for communication in loud environments. Its slim profile allows it to be worn comfortably under helmets or hats, making it ideal for broadcast, live production, and industrial applications where both protection and precision are essential.
Weighing just 2.3 oz, the headset offers extended-wear comfort, while the flexible gooseneck mic ensures optimal positioning. The dynamic microphone features a unidirectional, noise-cancelling design, providing 12dB off-axis rejection to maintain clear voice transmission even in noisy conditions. It includes three sizes of interchangeable ear tips (S/M/L) for a customizable fit and comes equipped with a 4-pin female XLR connector compatible with Clear-Com systems.
Features
Slim, Dual-Ear Design: Wrap-around style fits comfortably under helmets or hats for unobtrusive use.Lightweight and Comfortable: Weighs just 2.3 oz, ideal for long periods of wear in active or mobile environments.Noise-Cancelling Microphone: Unidirectional mic with 12dB off-axis rejection for clear communication in loud settings.Flexible Mic Boom: Gooseneck allows precise microphone positioning for consistent voice capture.Clear Audio Performance: Single-driver earpieces deliver sound with a 30Hz"14kHz frequency range.Multiple Ear Tip Sizes Included: Comes with small, medium, and large ear tips for a secure and customized fit.Professional Connector: XLR 4-pin female Neutrik connector with Clear-Com wiring for standard intercom systems.Durable and Shielded Cable: 4-foot straight cable with shielded, separate mic wiring for reduced interference.Tested for Tough Conditions: Reliable operation in extreme temperature and humidity environments.
Specifications
General Specifications
Model: CC 70 X4Design: Wrap around dual ear headset, wearable under helmet or hatNoise Cancellation: 12 dB off axisComfort: Lightweight at 2.3 oz or 65 grams, designed for long duration useMicrophone: Flexible gooseneck for adjustable positioningEar Tips: Includes small, medium, and large sizes, one pair of each
Headphone Specifications
Type: Single driverFrequency Response: 30 Hz to 14 kHzSensitivity: 96 dB SPL at 1 VRMS at 1 kHzImpedance: 16 ohms plus 16 ohmsInput Power: 3 mW
Microphone Specifications
Element: DynamicPolar Pattern: Unidirectional noise cancellingFrequency Response: 200 Hz to 10 kHzSensitivity: minus 80 dB at 1V per Pa at 1 kHz typicalImpedance: 200 ohms
Connectivity
Connector: XLR 4 pin female Neutrik, Clear Com wiringCabling: Screened and separately shielded microphone wires, not coiledCable Length: 4 feet or 1.2 meters
Environmental Specifications
Operating Temperature: minus 10 to 55 degrees CelsiusHumidity Tolerance: 40 degrees Celsius at 90 to 95 percent relative humidity for 48 hours
