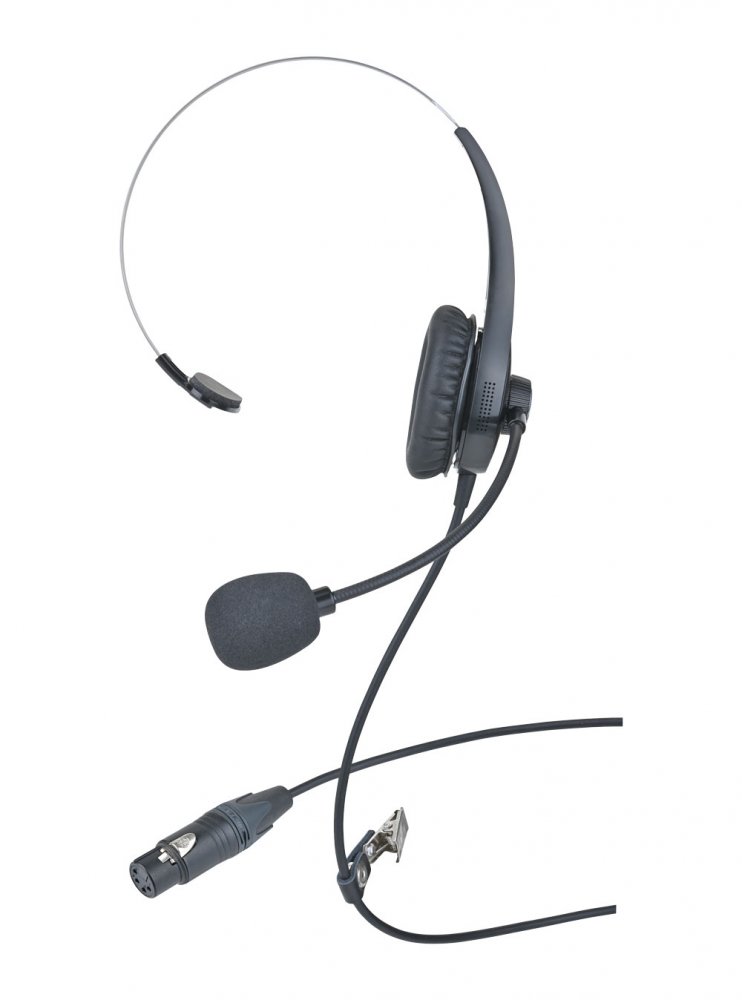

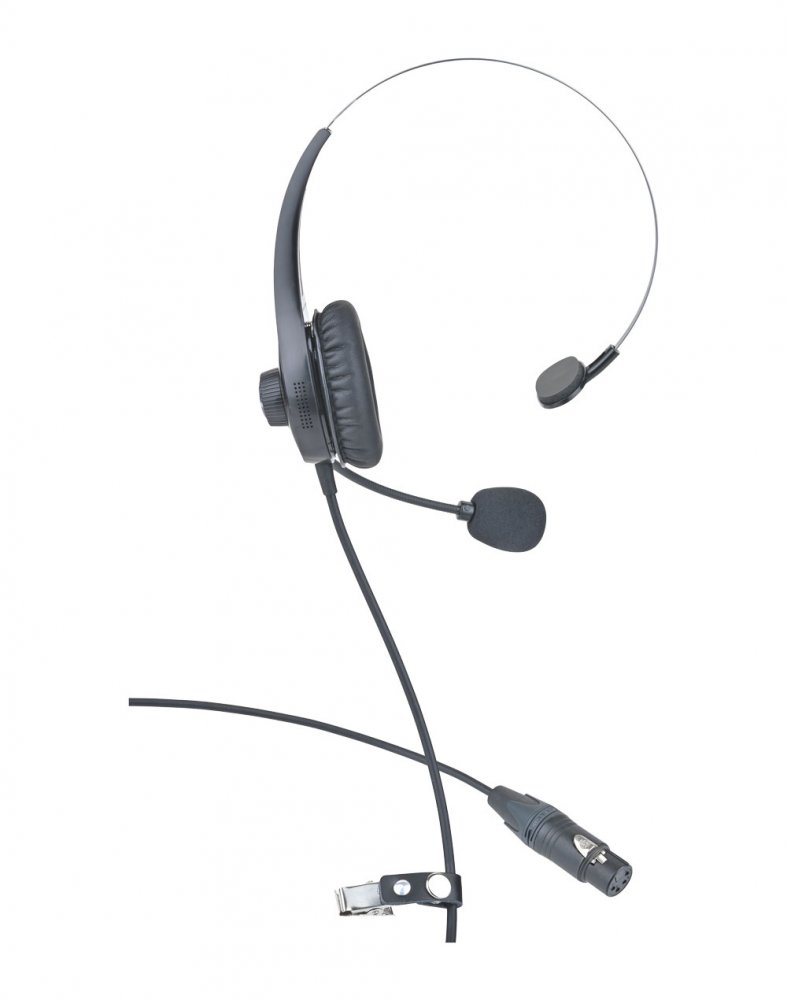

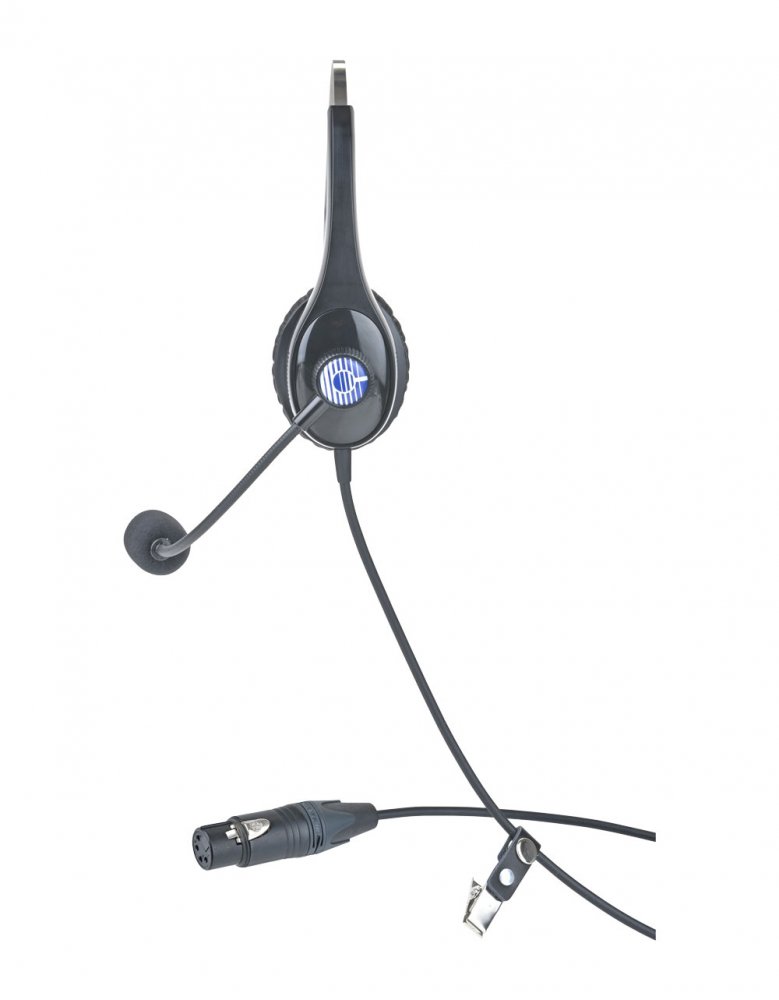

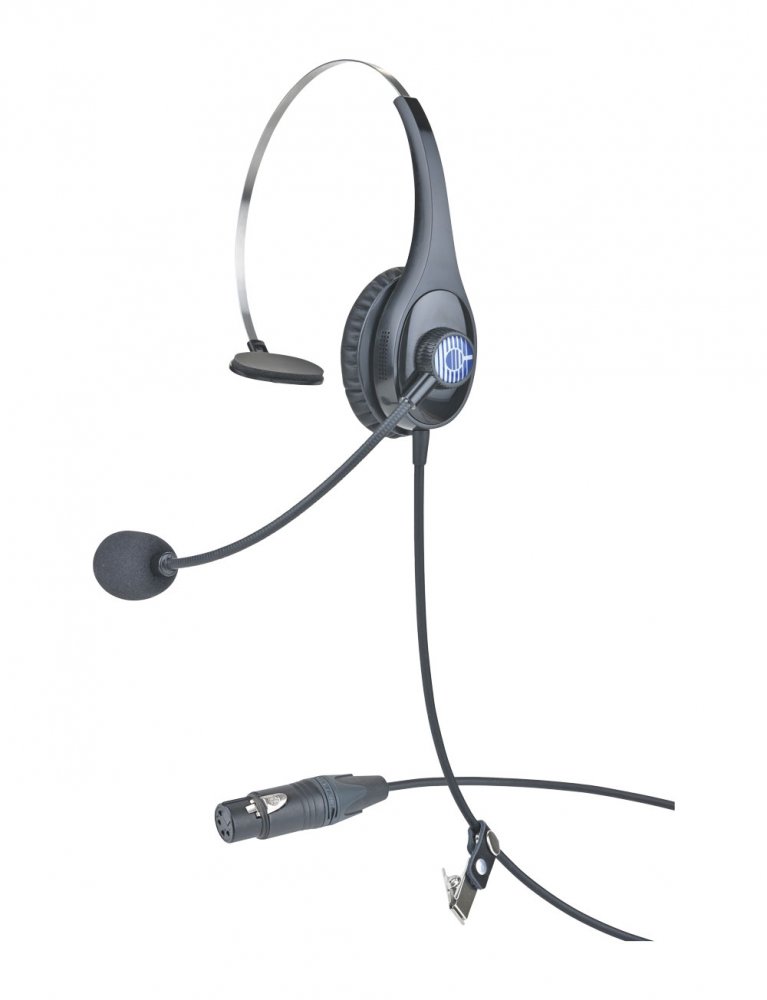

The CC-28-X4 is a professional-grade single-ear headset engineered for clear communication in demanding environments such as live production, broadcast, and intercom systems. With its over-the-head design and leatherette earpad, it offers comfortable wear during extended use, while the closed-back construction enhances sound isolation for precise audio monitoring.
A flexible gooseneck boom microphone ensures optimal positioning and features a built-in rotation-based ON/OFF switch for quick muting. This dynamic, cardioid microphone delivers clear vocal capture with a frequency range tailored for speech intelligibility (200Hz"10kHz). The headset connects via a durable Neutrik 4-pin XLR female connector using Clear-Com-compatible wiring and comes equipped with a 5-foot straight cable for convenient mobility.
Caractéristiques
Comfortable Over-the-Head Fit: Lightweight, closed-back design with soft leatherette earpad for extended wear.
Clear, Focused Sound: 27mm driver delivers audio from 100Hz to 14kHz with strong clarity.
Dynamic Cardioid Microphone: Gooseneck mic with cardioid pickup captures voice clearly while reducing background noise.
Quick Mute Function: Boom rotation acts as an ON/OFF switch for instant microphone muting.
Service-Friendly Build: Fully serviceable for long-term reliability in demanding environments.
Professional Connector: Equipped with a 4-pin XLR female Neutrik connector (Clear-Com wiring).
Rugged and Flexible Cabling: 5-foot (1.5m) shielded cable is durable and easy to route; not coiled.
Lightweight Design: Weighs just 3.5 oz including the connector for low-profile, all-day use.
Reliable in Harsh Conditions: Tested for extreme temperature and humidity ranges for robust performance.
Spécifications
General Specifications
Model: CC 28 X4
Design: Over the head
Earpad: Leatherette
Boom: Flexible gooseneck with rotation switch for muting
Serviceability: Fully serviceable
Headphone Specifications
Type: Closed back
Driver Size: 27 mm
Frequency Response: 100 Hz to 14 kHz
Sensitivity: 114 dB plus minus 3 dB SPL at 1 kHz
Impedance: 320 ohms plus minus 20 percent at 1 kHz
Input Power: 100 mW
Microphone Specifications
Element: Dynamic
Polar Pattern: Cardioid
Frequency Response: 200 Hz to 10 kHz
Sensitivity: minus 61 dB plus minus 3 dB at 1V per 1 Pa at 1 kHz
Impedance: 200 ohms plus minus 20 percent at 1 kHz
Connectivity
Connector: XLR 4 pin female Neutrik using Clear Com wiring
Cabling: Screened and separately shielded microphone wires, not coiled
Cable Length: 5 feet or 1.5 meters
Environmental Specifications
Operating Temperature: minus 10 to 55 degrees Celsius
Humidity Tolerance: 40 degrees Celsius at 90 to 95 percent relative humidity for 48 hours
Physical Dimensions
Packaging Dimensions: 6.3 by 8 by 2.4 inches or 160 by 205 by 60 mm
Weight: 3.1 ounces or 88 grams without connector, 3.5 ounces or 99.2 grams with connector
