SR-28

2 x 8 time code distributor
Designed to send TC over long cables
Buffered outputs; balanced or unbalanced

Individual output level adjust

Low input threshold can help recover unreadable code

Reshaper eliminates amplitude distortions and level fluctuations

2 power inputs for redundancy

Like it's big brother the SR-112 Distripalyzer, the SR-28 can drive time code over long cables, making it ideal for synchronization during live shows and remote recording.

The SR-28 time code distributor, with two inputs and eight outputs, reshapes time code while distributing it, eliminating amplitude distortions and level fluctuations. The level of each output is individually adjustable via front panel pots. The input is selected via a front panel switch. Also included are 2 power inputs and an automatic switch over in case of failure.

Distributor configuration:

2x8 with selectable input

Input Signal:

SMPTE/EBU Longitudinal Timecode (Forward or reverse; play, shuttle and wind)

Impedance: 20K bal.; 10K unbal.

Level: -30dbU min; +20dbU Max

Output Signal:

Waveform: switchable rise time: 1us (square); 25us (SMPTE); 50us (EBU)
Impedance: 600 bal.; 300 unbal.
Level: adjustable: full off to +8dbU bal.; to + 2dbU unbal.
Amplitude distortion: less than 2%

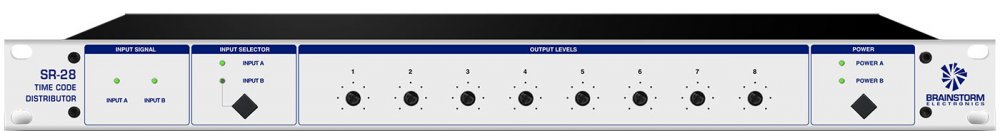

Front Panel Indicators:

Signal present; Selected input

Power on

Connectors:

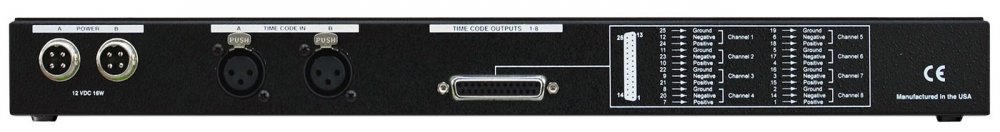

Timecode Inputs: XLR Female (x 2)

Timecode Outputs 1- 8: DB-25 F (x 1)

Power: 4 pin circular (x 2)

Power:

12VDC @ 1.3A

Redundancy: two separate supplies can be connected to the 2 separate power inputs. If one supply fails, the other takes over and an error is reported. The faulty supply can be swapped without having to power down.

Dimensions:

19" x 8.125" x 1.75" (48.26 cm x 20.64 cm x 4.45cm)
