Blackmagic Design Video Assist 5" 3G
UPC/EAN #9338716006407
MPN #HYPERD/AVIDA03/5
Portable 5" monitor, recorder and scope with 3G-SDI and HDMI inputs, 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs
Introducing Blackmagic Video Assist
Blackmagic Video Assist is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The 3G models support formats up to 1080p60 and the 12G HDR models up to 2160p60. The 12G HDR models have a brighter touchscreen for shooting HDR digital film and for outdoor shooting in sunlight. Plus the 12G HDR models support Blackmagic RAW recording from supported cameras! The new design also has L'Series batteries for longer life. Blackmagic Video Assist really is 4 products in one!
Perfect for Digital Cinema, Broadcast Test and Live Production!
Blackmagic Video Assist is so versatile it can be used for hundreds of tasks! Add it onto your camera rig to get a large screen viewfinder with modern record codecs, focus assist features and 3D LUTS! Video Assist is also an ultra portable scope that lets you test equipment in broadcast and live production to ensure your video levels are correct and all your gear is working correctly. If you're doing live production then Video Assist is just like a large screen HyperDeck so it can be used as a mastering recorder, or as a clip player for inserting ads or promos into live programs. You can even use it as an ISO recorder with each camera having a dedicated monitor and recorder!
Modern Design with Latest Technology and Amazing Screens!

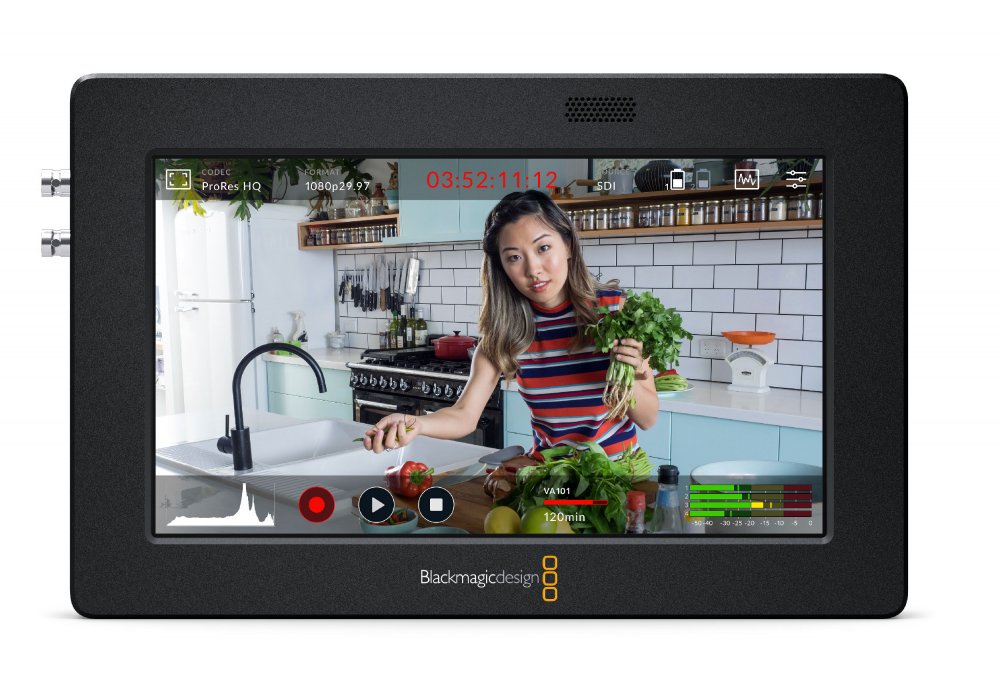

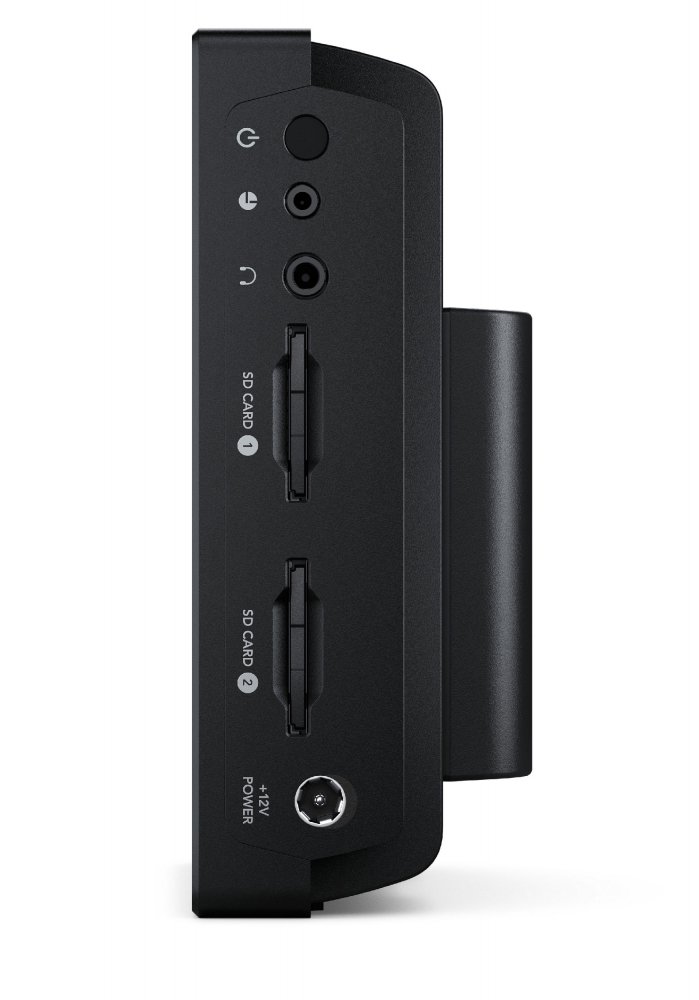

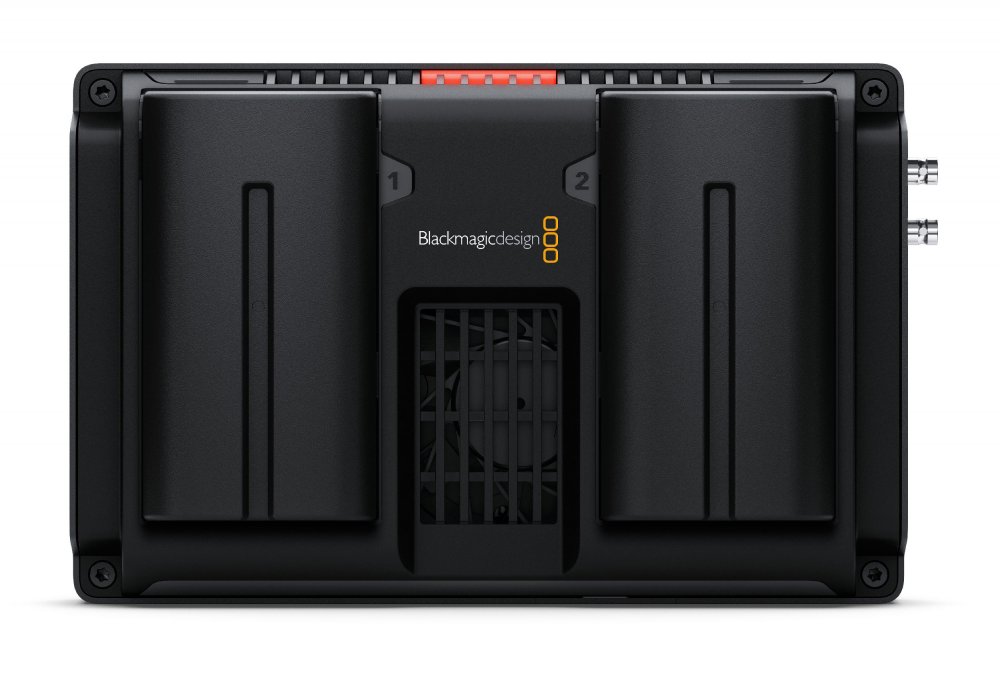

All Video Assist models are dominated by a large touchscreen with all controls for recording, playback of clips, viewing scopes and setting focus assist features. Both 7" models are large enough to include analog inputs for audio and two SD card slots so you get continuous recording, with automatic recording to the second card. Both of the 12G models include 12G-SDI and Ultra HD HDMI connections and USB-C for recording direct to external flash media disks. All models include a rear tally light, a front panel speaker for clip playback and a headphone jack! Video Assist uses Sony L-Series batteries, and with 2 battery slots, you can change batteries without interrupting recording!
Blackmagic Video Assist 5" 3G is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The Video Assist 5" 3G support formats up to 1080p60 and the new design also has L-Series batteries for longer life. Blackmagic Video Assist 5" 3G really is 4 products in one!
Features
Enhanced focus assist features4 built in scopesBuilt in 3D LUTsTally indicatorSupport formats up to 1080p60
Specifications

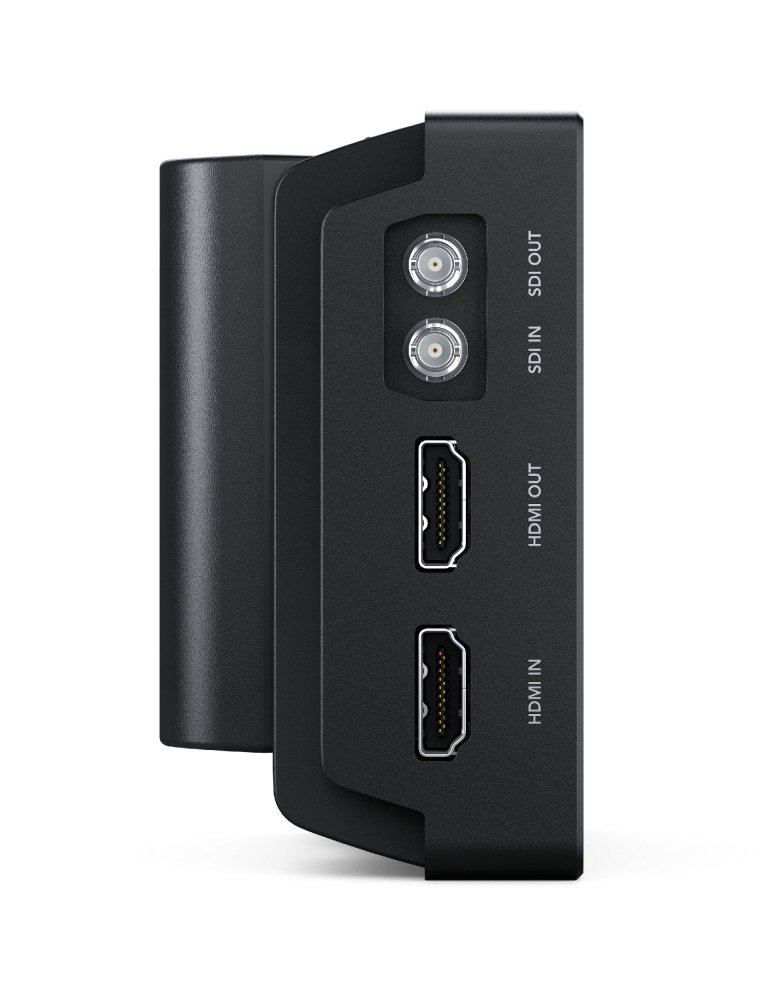

Connections
SDI Video Inputs
1 x Micro BNC
SDI Video Outputs
1 x Micro BNC
SDI Rates
270Mb, 1.5G, 3G
HDMI Video Inputs
1
HDMI Video Outputs
1
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
1 x 3.5mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
5 inch 1920 x 1080.
Screen Brightness
300nits
SDI Audio Inputs
16 channels embedded via SDI
SDI Audio Outputs
16 channels embedded via SDI
HDMI Audio Inputs
8 channels embedded via HDMI
HDMI Audio Outputs
8 channels embedded via HDMI
Remote Control
None
SD Interface
1 x UHS-I SD slot.
Storage Type
SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type'C for webcam out, initial setup, software updates and Video Assist Utility software control.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
SDI Metadata Support
HD RP188
Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate Support
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
HDMI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
10-bit
Copy Protection
HDMI input is unable to capture from copy protected
HDMI sources. Always confirm copyright ownership before capture or distribution of content.
What's Included
Blackmagic Video Assist 5" 3G
Universal power supply with international adapters
