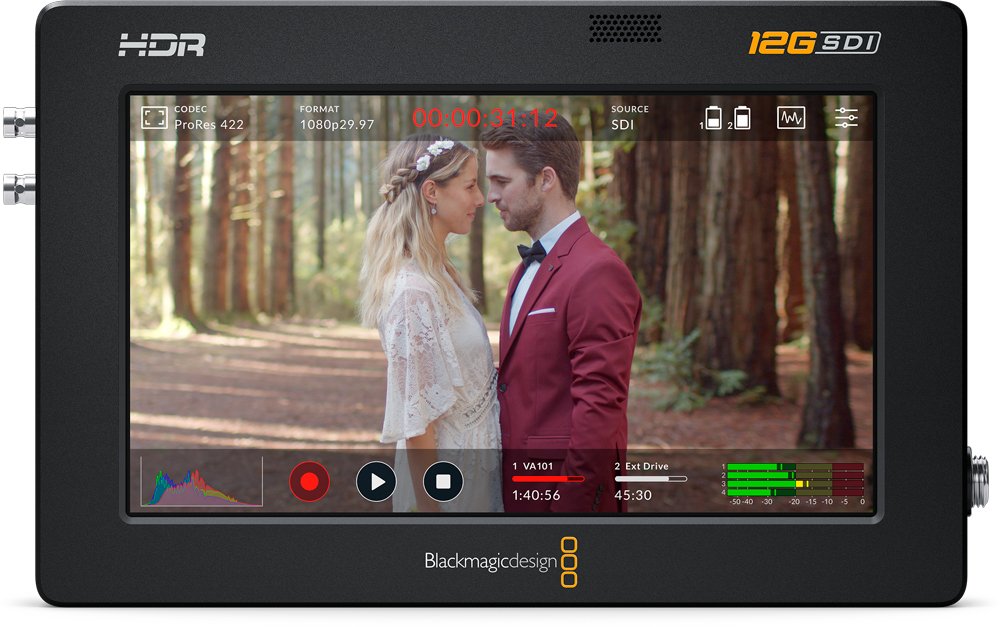

Blackmagic Design Video Assist 5" 12G
UPC/EAN #9338716006421
MPN #HYPERD/AVIDA12/5HDR
Portable 5" monitor, recorder and scope with 12G-SDI and HDMI inputs, support for HD, Ultra HD, 2K and 4K DCI formats, and 2500nit 5 inch HDR monitor
Introducing Blackmagic Video Assist
Blackmagic Video Assist is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera! The new design has innovations such as 4 built in scopes, enhanced focus assist features, a tally indicator and built in 3D LUTs. The 3G models support formats up to 1080p60 and the 12G HDR models up to 2160p60. The 12G HDR models have a brighter touchscreen for shooting HDR digital film and for outdoor shooting in sunlight. Plus the 12G HDR models support Blackmagic RAW recording from supported cameras! The new design also has L'Series batteries for longer life. Blackmagic Video Assist really is 4 products in one!
Perfect for Digital Cinema, Broadcast Test and Live Production!
Blackmagic Video Assist is so versatile it can be used for hundreds of tasks! Add it onto your camera rig to get a large screen viewfinder with modern record codecs, focus assist features and 3D LUTS! Video Assist is also an ultra portable scope that lets you test equipment in broadcast and live production to ensure your video levels are correct and all your gear is working correctly. If you're doing live production then Video Assist is just like a large screen HyperDeck so it can be used as a mastering recorder, or as a clip player for inserting ads or promos into live programs. You can even use it as an ISO recorder with each camera having a dedicated monitor and recorder!
Modern Design with Latest Technology and Amazing Screens!

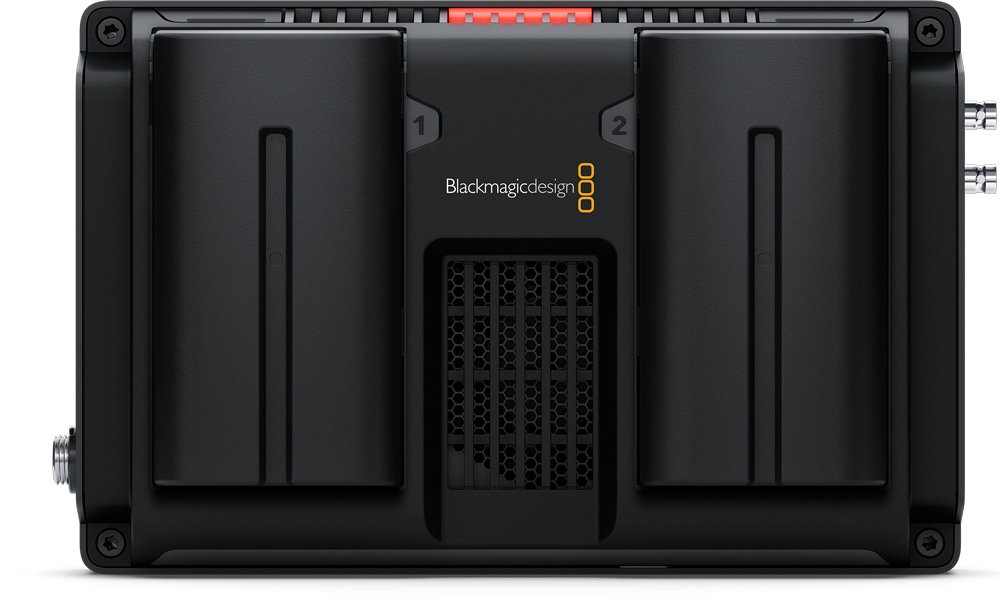

All Video Assist models are dominated by a large touchscreen with all controls for recording, playback of clips, viewing scopes and setting focus assist features. Both 7" models are large enough to include analog inputs for audio and two SD card slots so you get continuous recording, with automatic recording to the second card. Both of the 12G models include 12G-SDI and Ultra HD HDMI connections and USB-C for recording direct to external flash media disks. All models include a rear tally light, a front panel speaker for clip playback and a headphone jack! Video Assist uses Sony L-Series batteries, and with 2 battery slots, you can change batteries without interrupting recording!
Blackmagic Video Assist 5" 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10-bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!
Specifications

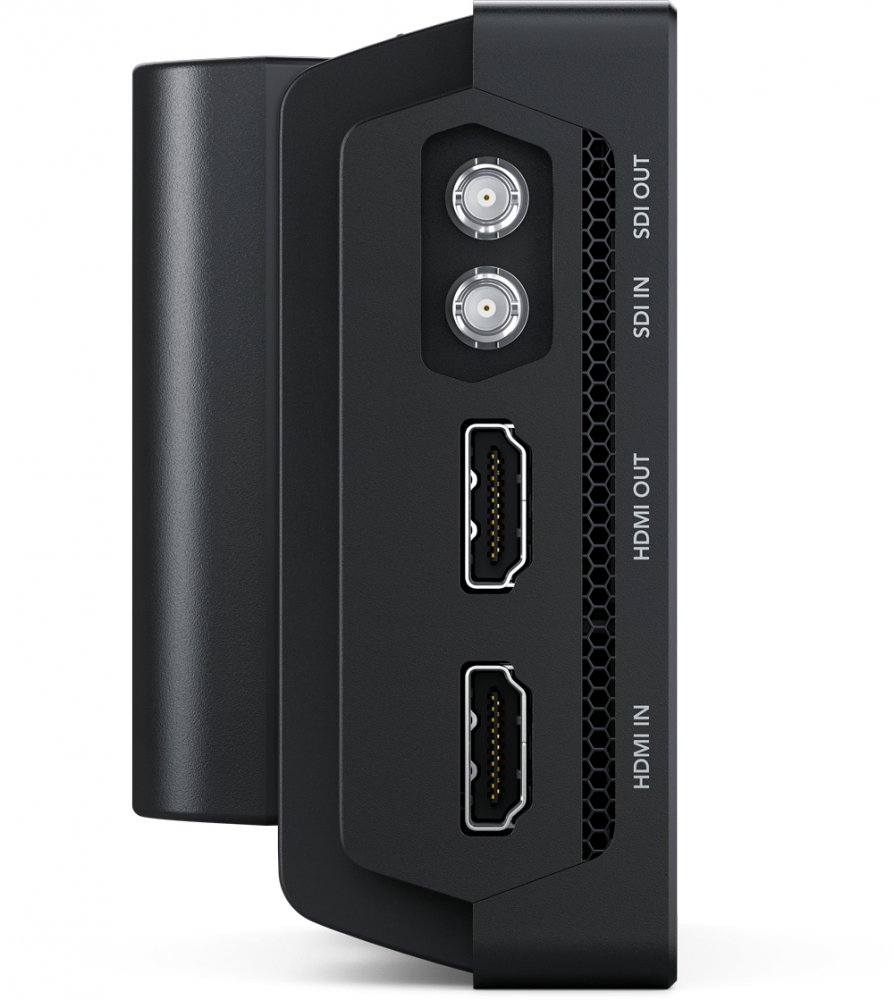

Connections
SDI Video Inputs
1 x Micro BNC
SDI Video Outputs
1 x Micro BNC
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0a Video Inputs
1
HDMI 2.0a Video Outputs
1
Analog Audio Inputs
None, embedded audio only.
Analog Audio Outputs
1 x 3.5 mm headphone jack.
Built in Speaker
Mono
Screen Dimensions
5 inch 1920 x 1080.
Screen Brightness
2500nits
Screen Color
P3 wide color gamut
SDI Audio Inputs
16 channels embedded via 12G-SDI
SDI Audio Outputs
16 channels embedded via 12G-SDI
HDMI Audio Inputs
8 channels embedded via HDMI 2.0a
HDMI Audio Outputs
8 channels embedded via HDMI 2.0a
Remote Control
None

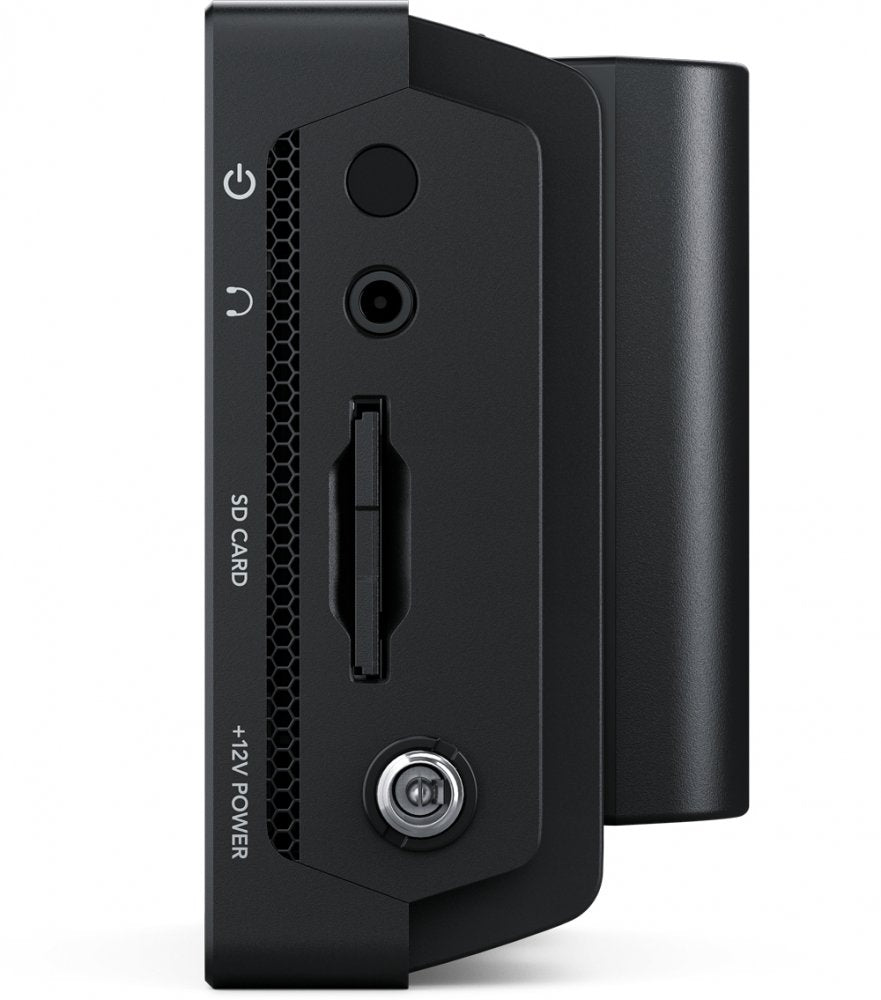

SD Interface
1 x UHS-II SD slot.
Storage Type
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
Computer Interface
1 x USB Type'C 3.1 Gen 1 for external drive recording, webcam out, initial setup, software updates and Video Assist Utility software control.
SDI Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI Metadata Support
HD RP188
Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020
HDR Support
HDR10, Hybrid Log Gamma
Multiple Rate Support
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
SDI RAW
Blackmagic RAW
What's Included
Blackmagic Video Assist 5" 12G HDR
Universal power supply with locking connector and international adapters
