Blackmagic Design URSA Viewfinder
UPC/EAN #9338716003215
MPN #CINEURSANEVFP

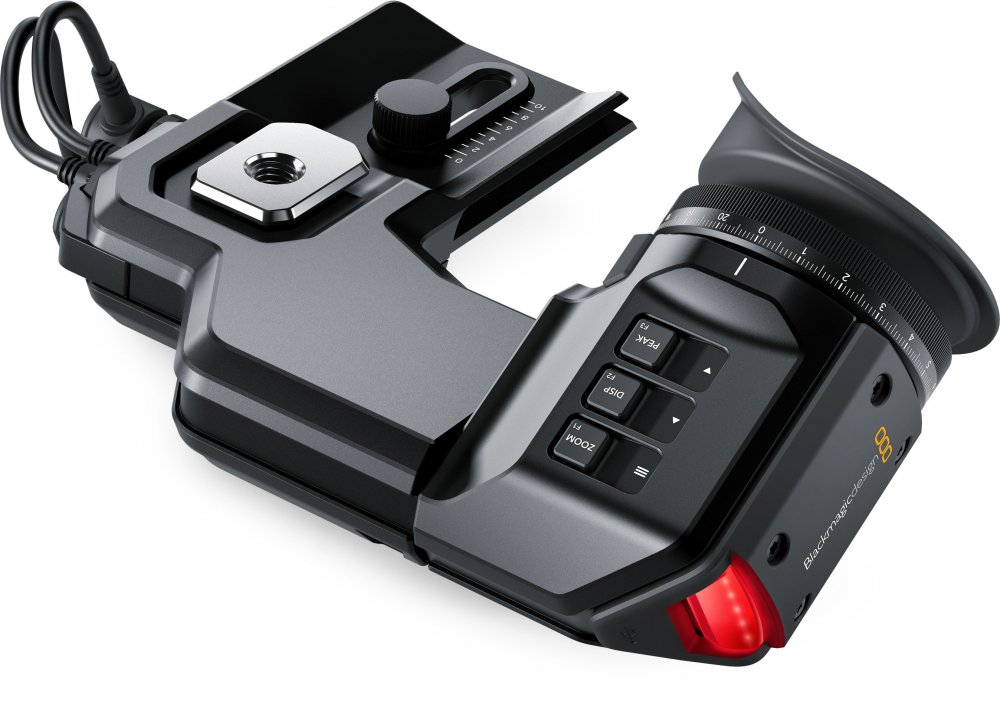

Viewfinder for URSA or URSA Mini digital film cameras with 1080HD resolution display, true precision glass optics, built in tally light, and built in menus
The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!
Features
1080HD resolution displayTrue precision glass opticsBuilt in tally lightBuilt in menus, overlays and digital focus chart
Specifications
SDI Video Inputs
1 x 3G-SDI BNC.
Power Input
1 x 4 pin XLR 12V.
Computer Interface
USB 2.0 Mini-B port for software updates.
Display Resolution
Full 1920 x 1080.
Frame Rates
Up to 60fps
Display Type
OLED
Display Pixels
6.22 Million Pixels
Color Precision
24 bit RGB, 16.7 million colors
Focus
4 Element diopter.
Diopter Range
-4 to +3
Controls
Buttons for settings, short cut features and navigating menus.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Camera mount with adjustment.
Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
