Blackmagic Design URSA Studio Viewfinder G2
UPC/EAN #9338716007695
MPN #CINEURSANSVF2

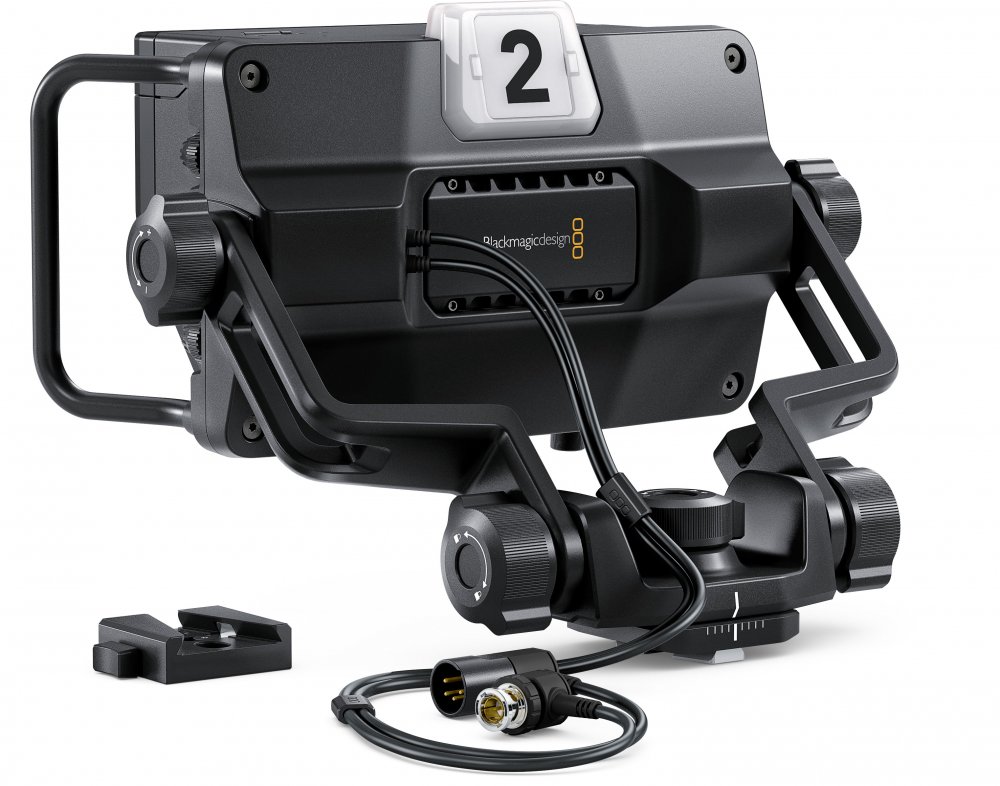

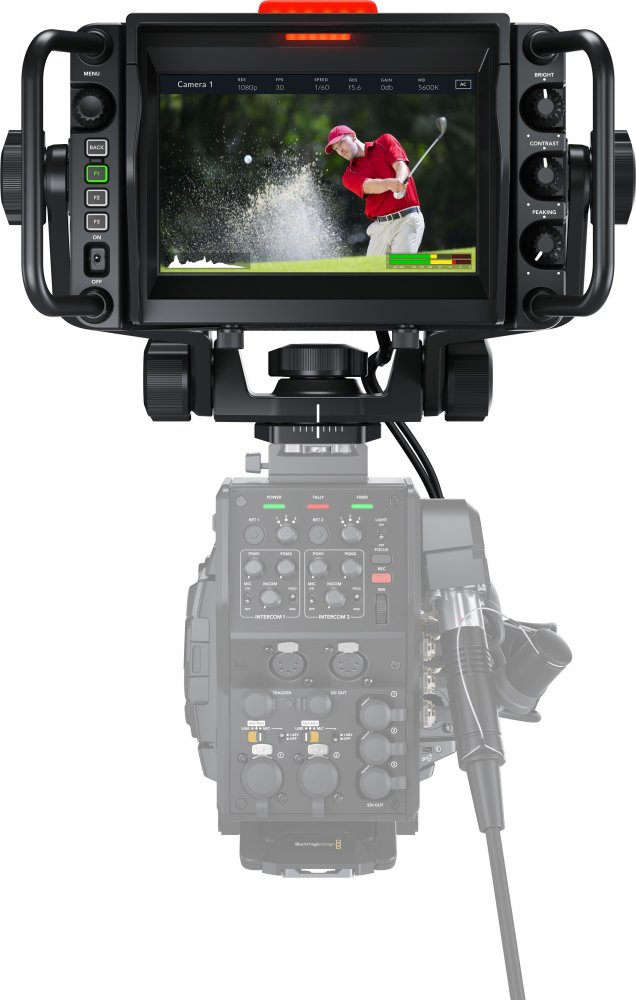

Viewfinder for URSA cameras with 7" screen, detachable sunshade, large handles, articulated pivot mount, large rotary control dials, and customizable function buttons
When you're working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production! The bright 7" screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera! The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action! Set up is quick and easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don't need additional cables or power supplies.
Features
Controls
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
Handles
Built in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.
Tally

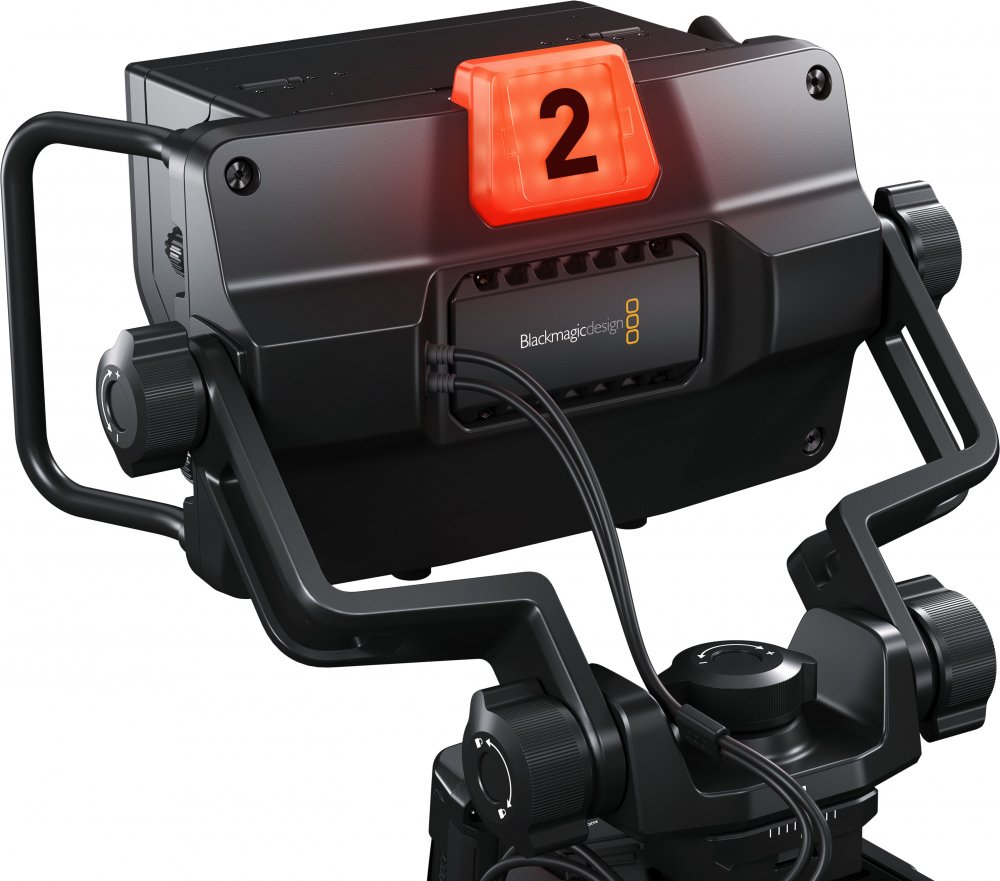

Large LED tally light with customizable perspex camera numbers.
Metadata Support
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
Screen Interface
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Specifications
SDI Video Input
1 x HD/Ultra HD 3G-SDI via BNC.
Power Input
1 x 4 pin XLR 12V.
Screen Dimensions
7" 1920 x 1200 resolution.
Screen Type
7" high brightness TFT LCD
Screen Brightness
2000 nits
Computer Interface
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
What's Included
Blackmagic URSA Studio Viewfinder G2
