Blackmagic Design URSA Cine 17K 65 + EVF
UPC/EAN #9338716009491
MPN #CINEURSAA17K65/EVF
Cinema Camera 6K features a full-frame sensor, improved color science, 6K RAW recording, compact design, portable digital film solutions and comes with EVF
World's Most Advanced Digital Film Camera!
Blackmagic URSA Cine is a revolutionary digital film camera that introduces new advanced digital film technology combined with total integration into the post production workflow. That means it's the first digital film camera with fast high capability storage built in, plus high speed networking for on set media sync. Blackmagic URSA Cine also introduces a new large format RGBW 36 x 24mm image sensor with larger photo-sites for incredible dynamic range. You can also swap between PL, LPL, EF and Hasselblad lens mounts. There's even WiFi with SRT streaming for remote client viewing. Plus the industry standard Lemo and Fischer connections make it perfect for high end cinema production.
URSA Cine features a revolutionary new sensor designed for incredible quality images at all resolutions from 4K to a massive 12K! The larger sensor builds on the technology of URSA Mini Pro 12K with larger photo-sites leading to an astounding 16 stops of dynamic range. The unique RGBW architecture provides equal amounts of red, green and blue pixels. This means it is optimized to deliver incredibly rich colors at all resolutions and provide the ultimate in image quality and flexibility. Now you can capture more detail with a wider dynamic range than ever before! Plus, in sensor scaling means you can record at all resolutions without cropping!
Camera Body
Optimized for High End Productions!

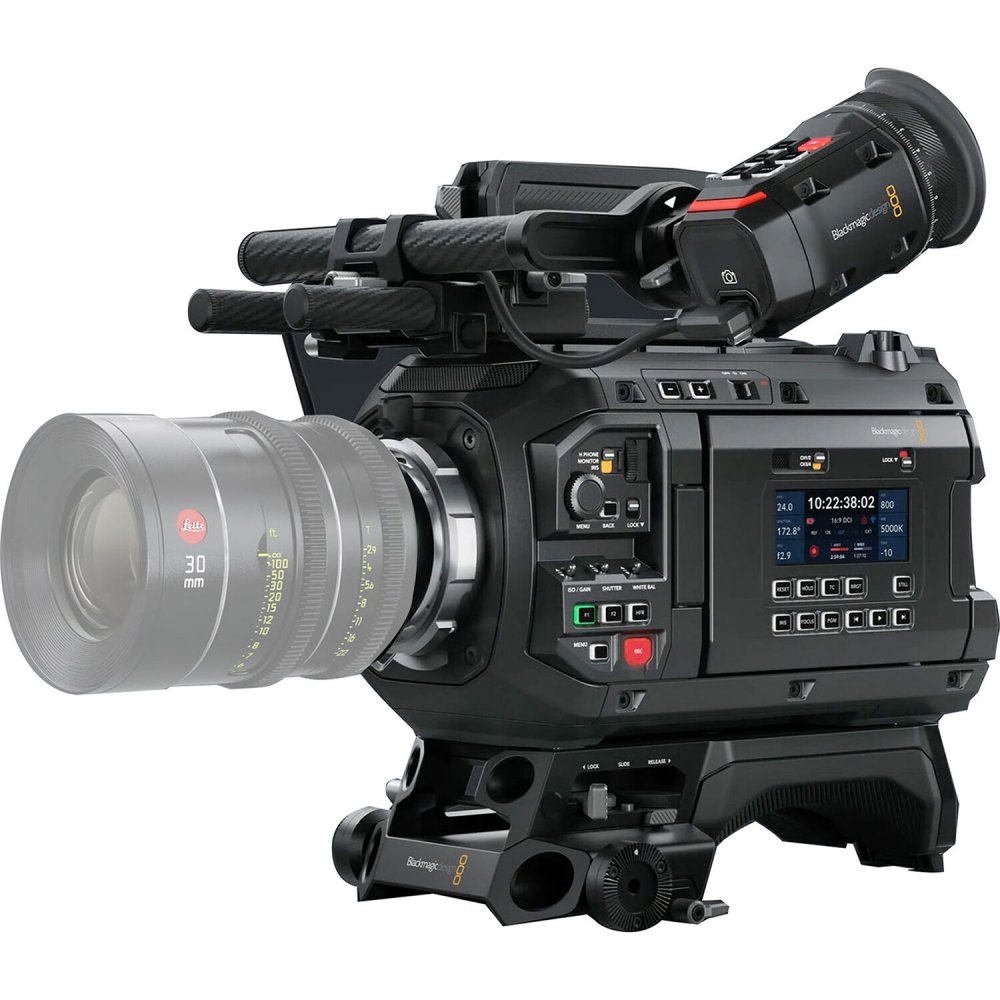

URSA Cine is designed to meet the demands of any high end production. The evenly weighted camera body is built with a robust magnesium alloy chassis and lightweight carbon fiber polycarbonate composite skin to help you move quickly on set. Soft touch backlit buttons make controls easy to see in all conditions. There's a 5? fold out touchscreen for reviewing shots and accessing camera settings, plus a dedicated assist station on the other side of the camera, with 5? LCD and full camera controls! Standard Lemo and Fischer connectors let you control the camera remotely while providing power for lens motors and other accessories. You also get 12G'SDI out, 10G Ethernet, USB-C, XLR audio and more!
Large Format Flexibility
The large format sensor in URSA Cine provides the ultimate in flexibility for aspect ratios, lenses and delivery formats! The full sensor area gives you a stunning 3:2 open gate image which lets you reframe your shots in post production. Or you can use the large sensor area to shoot anamorphic and deliver in a range of aspect ratios with 1.3, 1.5, 1.6, 1.66, 1.8 and 2x de-squeeze factors. Plus, you can shoot in 4K, 8K or 12K using the entire sensor without cropping, retaining the full field of view of your lenses. There are even 9K Super 35 4-perf, 3-perf and 2-perf modes for full compatibility with classic cinema lenses. All this lets you create distinctive content in the highest quality!
Interchangeable Lens Mounts
Different projects require different lenses which is why URSA Cine features an interchangeable lens mount. You can quickly switch between PL, LPL, EF and Hasselblad mounts. That means you can work with PL or LPL cinema lenses, EF or large format Hasselblad photographic lenses, making URSA Cine compatible with the widest possible range of professional lenses. Imagine using modern high speed lenses for sharp, precise images on one shoot and then shooting a period drama with vintage photographic lenses next! Plus, each mount has contact pins to read lens metadata for monitoring and for use in post production. With URSA Cine, you have the freedom to choose the lens you need for any kind of work!
High Resolution
Monitoring and Camera Control
URSA Cine lets crews work faster on set with multiple monitoring options! The fold out monitor has a large 5? HDR touchscreen on one side and an external color status LCD on the other. You can even rotate the screen and fold it back into the camera! On the right side of the camera, there's a dedicated assist station with a second 5? HDR touchscreen which allows crew to work around the camera without needing external monitors. Plus, with a 1500 nit display and removable sunshade, it's always visible, even in bright sunlight. On screen overlays show status and record parameters, histogram, frame guides and more. There's even a dedicated focus puller's mode to help you get perfect focus!
Rugged Industry
Standard Connections
The wide range of industry standard connections on URSA Cine make it perfect for high end cinema production. The 7 pin Lemo and 3 pin Fischer connectors at the front provide record start/stop and 24V power so are ideal for on board accessories such as focus motors. Camera power is provided by a standard 24V 8 pin Lemo connection, plus there's an additional 2 pin Lemo 12V connection at the rear for lower voltage accessories. All this means you can power accessories straight from the camera without messy external cabling! There are also two independent 12G-SDI outputs for monitoring on 2 different monitors with different overlays, plus 10G Ethernet for Blackmagic Cloud media syncing!
Blackmagic RAW Fueled Image Capture
Blackmagic RAW is a revolutionary format designed to capture and preserve the quality of the sensor data from your camera. Blackmagic RAW files store camera metadata, lens data, white balance, digital slate information and custom LUTs to ensure consistency of image on set and through post production. Constant quality options lock the quality level, allowing compression to adapt, matching the detail of the scene. Constant bitrate encoding options are designed to give you the best possible images with predictable and consistent file size. URSA Cine records to the included Blackmagic Media Module 8TB, allowing you to capture over 4 hours of Blackmagic RAW in 12K or a massive 20 hours in 4K!
Generation 5 Color Science
Blackmagic Generation 5 Color Science features a new film curve designed to make full use of the massive amount of color data from the new URSA Cine sensor. This delivers even better color response for more pleasing skin tones, and better rendering of highly saturated colors such as neon signs and car tail lights in high contrast scenes. Generation 5 Color Science informs complex Blackmagic RAW image processing, with color and dynamic range data from the sensor preserved via metadata for use in post production. Compatible with all previously shot Blackmagic RAW files, Generation 5 Color Science lets you take advantage of the new film curve even with your existing work!
Features
Large format 36x24mm RGBW sensorDynamic range: 16 stopsInterchangeable PL, LPL, EF, Hasselblad lens mounts12K resolution capture at up to 100 fpsHigh-speed 10G Ethernet connectivityBuilt-in 8TB media module for 12K/4K recordingDual 5" HDR touchscreens for monitoring and controlSupports Blackmagic RAW with generation 5 color scienceIntegrated optical low pass and IR filtersSupports Blackmagic Cloud for live media syncingIncludes EVF
Specifications
Sensor:
Large format RGBW 36x24mm sensor
12K resolution (12,288 x 6480)
16 stops of dynamic range
Lens Mount:
Interchangeable mounts (PL, LPL, EF, Hasselblad)
Media & Storage:
8TB Blackmagic Media Module included
Dual CFexpress option
Frame Rates:
12K at 100fps
8K at up to 224fps
Connectivity:
10G Ethernet, 12G-SDI, USB-C, XLR Audio
Other Features:
Built-in ND filters (2, 4, 6 stops)
WiFi, SRT streaming capability
