Blackmagic Design Ultimatte Smart Remote 4
UPC/EAN #9338716004410
MPN #ULTMSMTREM4
Remote control for up to 8 different Ultimatte 12 units at the same time with 10.1 inch touchscreen for navigating menus and controls, and hard buttons

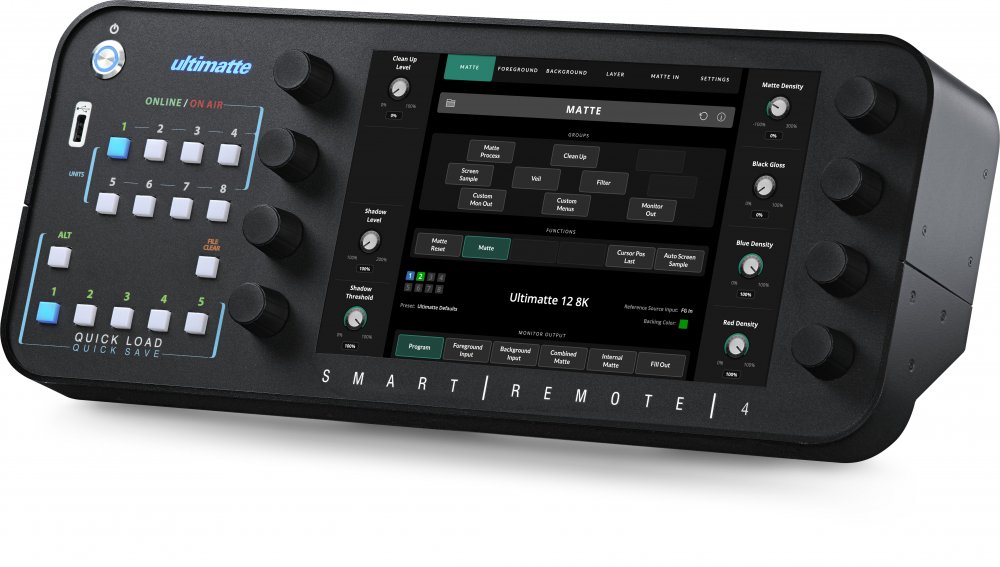

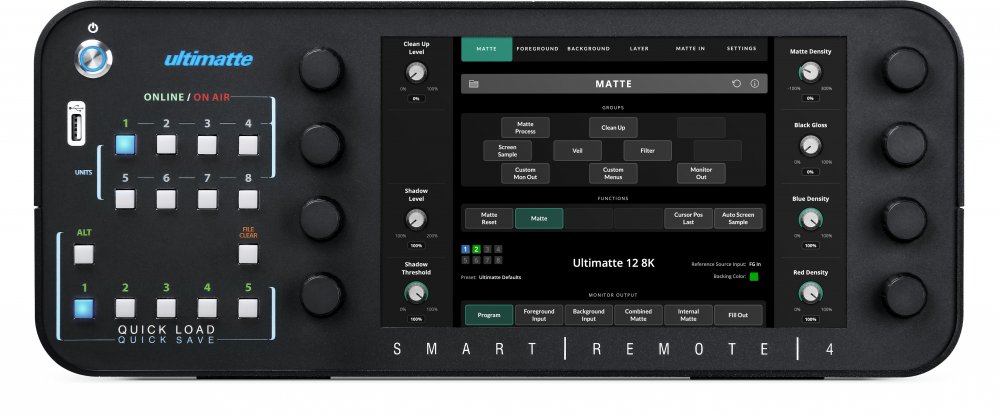

The Ultimatte Smart Remote 4 is a touchscreen remote that connects via Ethernet to control up to eight Ultimatte 12 units. Combined with the monitor cascade, this means you can view up to eight Ultimatte 12 units without adding a video router. Smart Remote 4 also features physical buttons and knobs for finer control of the Ultimatte 12 parameters. There are also buttons for quickly loading and saving presets, and a touchscreen that gives you full control over every Ultimatte parameter. Plus the front panel of the Ultimatte rack unit also has buttons to allow recall of custom presets! You can also create custom control solutions with the easy to use text based Ultimatte control protocol.
Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!
Features
Control up to 8 different Ultimatte 12 units at the same time via Ethernet10.1 inch 1280 x 800 colour display panelIntegrated capacitive touchscreen with onscreen controls for settings and navigating menus8 x rotary knobs for adjusting parameters4 x menus for building your own menu with your most used controls

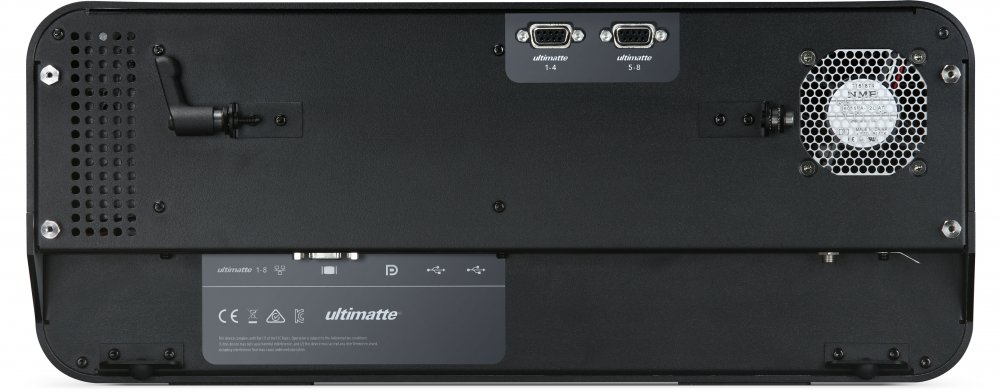

Specifications
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for software updates.
SVGA and Display Port Outputs
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for online and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving presets.
Quick Load/Save Buttons
5 x buttons for loading presets.
File Clear Button
1 x button for Auto Key.
Alt + File Clear
Alt button plus file clear button for Auto Key using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
