Blackmagic Design Ultimatte 12 HD
UPC/EAN #9338716007619
MPN #ULTMKEY12/B/HD
Advanced real time compositing processor with high performance 3G-SDI design
The all new Ultimatte 12 is more than the world's best keyer, it's an advanced real time compositing processor designed for the next generation of broadcast graphics. Ultimatte 12 features entirely new algorithms and color science that deliver true photorealistic composites. You get incredible edge handling, greater color separation, amazing color fidelity and better spill suppression than ever before, even in dark shadow areas or through transparent objects such as windows! Ultimatte 12 is available in 4 amazing models, with HD, Ultra HD and even native 8K support! Imagine presenting the weather, sports, news and entertainment in a cinematic quality environment, all composited in real time.
Add an Ultimatte 12 to Each Camera!
When you're working live with multiple cameras shooting from different angles, it's common for the green screens to suffer from variations. Plus the keyers built into live production switchers often have to be shared between cameras, which complicates keying because each camera sees the green screen a little differently. The new Ultimatte 12 eliminates these problems because you get incredible technology at an affordable price, allowing each camera to have a separate Ultimatte. That means each Ultimatte can be tuned to a specific camera's view! With a dedicated Ultimatte on each camera, your compositions can go well beyond what's possible with set design, so you can create whole new worlds!
Generate Live Virtual Environments for Broadcast!
Whether you're working in broadcast news, sports, film production, or magazine style entertainment programming, Ultimatte 12 has the quality for incredibly life like composites that place your talent into any scene! Plus the new Ultimatte 12 models include built in frame stores so you don't need live video sources for all inputs. You can also use Ultimatte 12 to layer computer generated augmented reality foreground objects into a scene, complete with realistic transparency that your talent can walk behind! Ultimatte 12 is also perfect for on set pre visualization in film production because it lets actors and directors watch the scene while they're shooting.
Ultimatte 12 HD is an advanced real time compositing processor designed for keying live action video with next generation broadcast graphics, virtual sets and more. Ultimatte 12 HD features new algorithms and color science, incredible edge handling and color separation, amazing color fidelity, and better spill suppression than ever before. The high performance 3G-SDI design gives you the power to work in HD with sub pixel processing for an amazing image.
Specifications

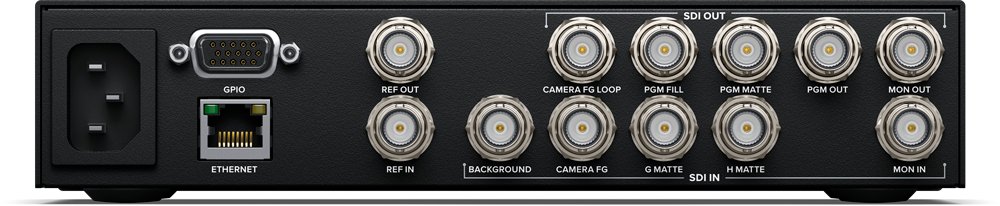

Connections
SDI Video Inputs: 5
SDI Video Outputs: 4
SDI Video Loop Outputs: 1
reclocked SD or HD Camera FG.
SDI Rates: 270Mb, 1.5G, 3G.
Video Input Re-Sync: On all inputs.
Reference Connections:
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
GPIO: DE15
Ethernet: Up to 1Gb/s for device control and loading stills into Media Pool.
Computer Interface: 1 x USB-C 3.0 for device configuration and software updates.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709, REC 2020.
Multiple Rate Support
Auto detection of SD and HD.
Composite Sources
Foreground
1 x 3G-SDI In with Loop Out
Background
1 x 3G-SDI In
Still from Media Pool
Background Matte
Internal Window
Still from Media Pool
Garbage Matte
1 x 3G-SDI In
Internal Window
Still from Media Pool
Holdout Matte
1 x 3G-SDI In
Internal Window
Still from Media Pool
Layer
Still from Media Pool
Layer Matte
Internal Window
Still from Media Pool
Composite Outputs
Fill
1 x 3G-SDI
Matte
1 x 3G-SDI
Program
1 x 3G-SDI
Monitor
Monitor In
1 x 3G-SDI
for monitor cascade
Monitor Out
1 x 3G-SDI
Media Pool
Background Still Image Formats
TGA, TIFF, BMP, PNG, JPG.
Background with Alpha Still Image Formats
TGA, TIFF, BMP.
Layer Image Still Image Formats
TGA, TIFF, BMP, PNG, JPG.
Layer with Alpha Still Image Formats
TGA, TIFF, BMP.
Garbage Matte Still Image Formats
TIFF, BMP, PNG, JPG.
Holdout Matte Still Image Formats
TIFF, BMP, PNG, JPG.
Media Pool Memory
6GB non-volatile internal storage.
Displays
Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
Control
Front Panel
2.2 inch color display, 3 preset buttons, 3 menu buttons and spin knob.
Control Connection
Network or direct Ethernet connection to a computer running Ultimatte Software Control or Ultimatte Smart Remote 4.
Software Control
Ultimatte Software Control
supported on Mac? or Windows? computers.
Hardware Control Panel
Ultimatte Smart Remote 4
Software
Software Updates
Using USB'C or Ethernet connection to Mac? or Windows? computers.
Configuration
Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
Operating Systems
Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.
Windows 10, 64-bit.
Windows 11.
Power Requirements
Power Supply
1 x Internal 100-240V AC, 50/60Hz
Power Usage
15W
Accessories
Optional Accessories
Ultimatte Smart Remote 4
Physical Installation
Half rack unit width, 1 rack unit height.
Environmental Specifications
Operating Temperature
0 to 40C (32 to 104F)
Storage Temperature
-20 to 60C (-4 to 140F)
Relative Humidity
0% to 90% non-condensing.
What's Included
Ultimatte 12 HD
Welcome wallet with QR code for software download
