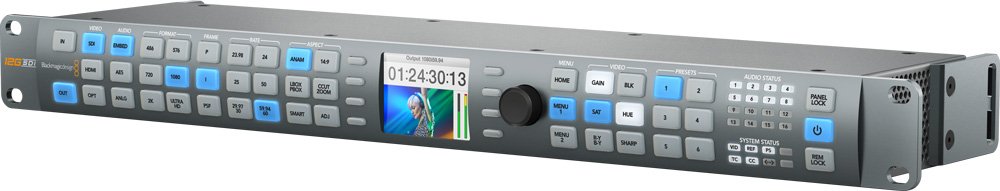

Blackmagic Design Teranex AV
UPC/EAN #9338716004373
MPN #TERANEXEXPAV12GQL
Standards converter with 1,089 up, down, cross and standards conversions for all formats up to 2160p60, HDMI, 12G-SDI, and quad SDI connections
Mandated by broadcasters everywhere, Teranex is the world's most trusted name in standards converters!
Teranex converters are the ultimate SD, HD and Ultra HD standards converters, and give you the quality and speed mandated by broadcasters worldwide. You can choose from models that give you up to a massive 1089 conversions, a wide range of broadcast connections, low latency processing, HDMI loop through and more! You get up, down, cross and standards conversions between virtually all SD, HD and Ultra HD formats and frame rates, including 3:2 cadence removal and insertion! Featuring advanced patented algorithms, Teranex converters give you visually transparent, high quality conversions in full 10'bit quality, complete with audio, closed captions, timecode and more!
Convert Anything to Anything
More real time conversions so you'll be ready for anything!
Whether you're out in the field or in the studio, you never know what kind of video format you're going to get or which video format you're going to have to provide. Teranex converters give you so many realtime conversions that you'll be ready for anything at anytime! Convert incoming feeds from overseas, use them in front of older broadcast decks to ensure they always receive the correct signal, or carry them in broadcast trucks so you'll be ready to work with anything that comes your way! With Teranex converters you can even convert SD to HD or Ultra HD in real time and then display it on massive outdoor LEDs or digital signs at live concerts or sporting events!
1089 Conversions
More SD, HD and Ultra HD up, down and standards conversions!
Teranex Express and Teranex AV can perform 1089 different conversions between SD, HD, and Ultra HD in real time with visually transparent results that are so good you won't be able to see a difference from the original! The incredible power of Teranex processing includes up and down conversions, cross conversions and standards conversions with cadence detection, removal and insertion, optical quality scaling, and more. Conversions retain timecode, ancillary data including closed captioning, 16 channels of audio with support for remapping and up to 1 second delay, and perfect frame synchronization so your video is immediately ready for editing or broadcast.
Advanced HDMI Processing
Convert HDMI to SDI without additional hardware!
With Teranex AV you also get HDMI input, loop through and outputs for the ultimate in flexibility at live events! That means you can do HDMI to SDI conversions without needing external adapters or conversion equipment! Regardless of your input format, you can loop out via HDMI to send the signal to a big screen projector while simultaneously converting and sending the signal to downstream equipment likes decks and monitors. You can even take the audio from AES, analog and RCA HiFi inputs and embed it into both HDMI and SDI during the conversion process!
Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex's patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!
Features
1,089 up, down, cross and standards conversions for all formats up to 2160p60Low latency12G-SDI and quad SDI connectionsConsumer HiFi, XLR audioHDMI in, loop and outputsTeranex's patented algorithms and legendary image quality
Specifications
Connections
SDI Video Inputs
1x BNC (IN A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (IN B) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
SDI Video Input L oops
1x BNC (IN A Loop) - Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
1x BNC (IN B Loop) - Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
SDI Video Outputs
1x BNC (OUT A) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.
1x BNC (OUT B) - 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.
Quad SDI Video Outputs
4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.
HDMI Video Inputs
1x HDMI 2.0 type A connector. YUV or RGB, auto switching.
HDMI Video Loop Inputs
1x HDMI 2.0 type A connector. Active Input loop.
HDMI Video Outputs
1x HDMI 2.0 type A connector. YUV or RGB, user selectable.
SDI Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Inputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
HDMI Audio Outputs
8 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection (optional)
1x SMPTE optical fiber SFP socket.
Optical Fiber Video Inputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Video Outputs
1x 10bit SD, HD, 3G HD, 2K, Ultra HD auto switching.
Optical Fiber Audio Inputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Outputs
16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Inputs
2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA - stereo unbalanced analog audio on RCA connectors for consumer equipment.
AES/EBU Digital Audio Inputs
2x XLR - 2 pairs (4 channels) professional 110? balanced digital audio (XLRs are shared with analog inputs)
Dolby Support Built In
Dolby AC-3 pass through in all conversions. Dolby E pass through except during video frame rate conversions.
Timecode Inputs
Support for VITC/ATC. No support for LTC.
Timecode Outputs
Support for VITC/ATC. No support for LTC.
Multi Rate Support
SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input
1x BNC - Black Burst in SD or Tri-level sync in HD.
Reference Output
1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface
1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.
Processor Interface
Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
1.5G-SDI HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
3G-SDI HD Video Standards
1080p50, 1080p59.94, 1080p60 levels A and B
2K Video Standards
2K DCI 23.98p, 2K DCI 24p
2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support
VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling
Television standard sample rate of 48kHz and 24-bit HD, 20'bit SD.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
SDI Video Standards
525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.
HDMI Color Precision
4:2:2 10'bit
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
What's Included:
Teranex AV
Welcome wallet with QR code for software download
2 x Bumper guards with 4x M4 screws
Write a review about the Blackmagic Design Teranex AV
View more products from
Blackmagic Design
