Blackmagic Design SmartView 4K 2
UPC/EAN #9338716006292
MPN #HDL-SMTV4K12G2
Full resolution Ultra HD broadcast monitor with 12G-SDI, 3D LUT support, H/V delay, blue only, and adjustable frame guides
SmartView 4K is the world's first full resolution rack mount Ultra HD broadcast monitor with 12G-SDI for native display of up to 2160p60. You get a professional broadcast monitor that supports the latest Ultra HD resolutions, plus automatically switches to SD and HD-SDI formats using high quality Teranex processing for a clean and professional display. The machined metal design includes a built in control panel for using features such as the built in 3D LUTs, H/V delay, blue only, zoom, focus peaking, customizable frame markers and more, either from the front panel or via external Ethernet! SmartView 4K supports VESA mounting so you can install on articulated monitor arms or rack mounting.
Professional monitoring
Broadcast quality SD, HD and Ultra HD monitoring!
SmartView 4K is an incredibly high quality monitor that's versatile enough to be used from the largest broadcast facility, mobile live production or on set for feature film production! SmartView 4K works with all SD, HD and Ultra HD video formats and includes both universal AC power as well as 12V DC power inputs so you can use it with a battery or plug it into standard AC mains power. The 6 rack unit sized design and VESA compatibility means it can be installed in racks, outside broadcast vehicles or even mounted on walls and on articulated arms! SmartView 4K is the perfect professional monitor for any broadcast facility, mobile broadcast truck, or even on location fly away kits!
Elegant Design
Machined metal design that's built to last!

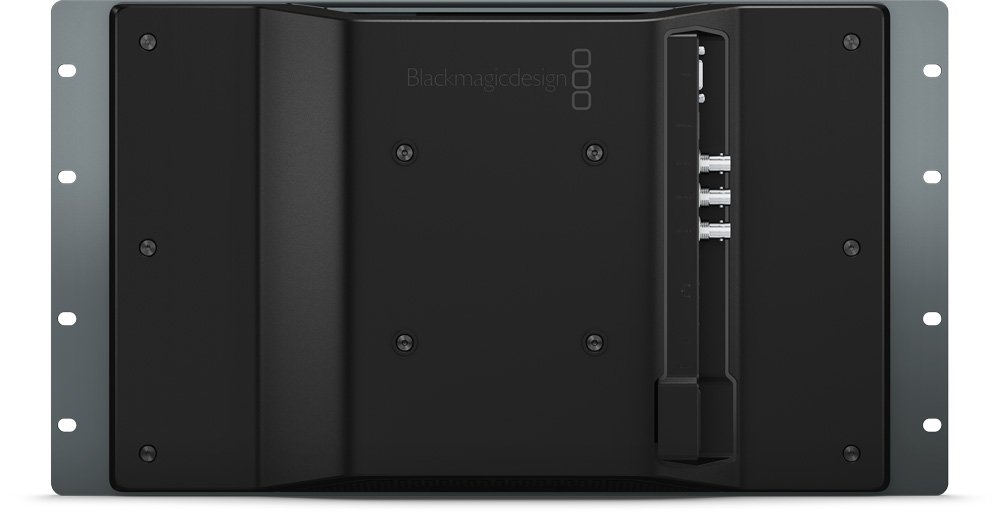

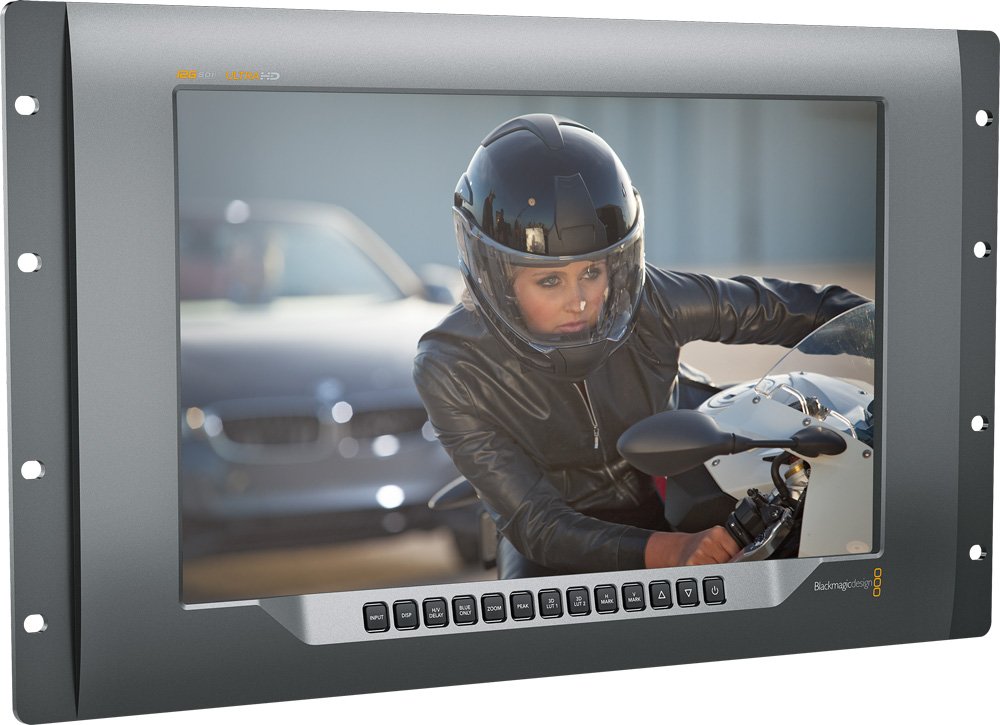

SmartView 4K has a stunning machined metal front panel and a sleek rack mount design with backlit buttons for easy access to all controls! It fits perfectly into standard 19" racks and also has VESA mount points on the back. The professional broadcast connections are side mounted, which makes SmartView 4K thinner so it can be installed in tight locations. Standard 12G-SDI BNC connectors mean the cables won't fall out from vibrations when used in a broadcast truck. With both DC and AC power you get the flexibility of both portable or studio use. When you want to align more than a single monitor or you need remote setup, SmartView 4K can also be controlled via Ethernet.
Extremely High Resolution
Full resolution allows you to see every pixel in an Ultra HD image!
Now you can install the perfect future proof monitoring solution because SmartView 4K will handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources. The SDI inputs automatically detect the input video standard and re-clock instantly. The full resolution Ultra HD monitor allows you to see every single pixel in a 3,840 x 2,160 resolution SDI input, even when running at a faster 60p frame rate! The fast frame rate support is perfect for fast motion such as sports, plus you get a totally future proof design!
Specifications
Connections
SDI Video Input
2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output.
Please click here for a summary of recommended cables to use with Blackmagic 12G'SDI products.
Optical Video Input
SFP Optical Fiber connector cage.
SDI Video Output
Automatically switches to input selection.
Multi Rate Support
Auto detection of 4K, 2K, HD or standard definition inputs.
Updates and Configuration
USB
Ethernet
Gigabit ethernet with loop through.
Tally
9-pin D connector
Standards
SD Format Support
525i59.94 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Format Support
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
SDI Color Space
REC 601, REC 709
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video Sampling
4:2:2 and 4:4:4
What's Included
SmartView 4K
Welcome wallet with QR code for software download
