Blackmagic Design Smart Videohub CleanSwitch 12x12
UPC/EAN #9338716003437
MPN #VHUBSMTCS6G1212
Compact 6G-SDI router with built in re-synchronizers on all inputs, support for 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats, and Ethernet control
Compact 6G-SDI router with built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standard, and can be used as 12 re-synchronizers for automatic re-timing of SDI feeds. Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formats. Supports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standard. Includes front panel button and spin knob routing, elegant machined metal front panel with LCD for routing display and video monitoring and remote Ethernet control.

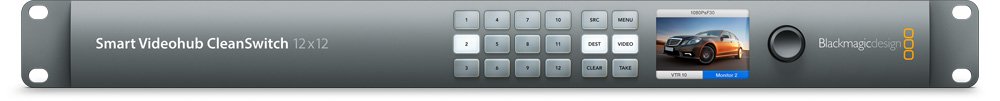

Elegantly Designed Front Panel
The built in front control panel lets you route video, so you get the perfect solution for live production racks that don't have the space for extra hardware panels. The front panel is similar to a Videohub Master Control Pro and it features a spin knob for browsing, direct entry buttons for speed and an LCD for displaying labels. However because the panel is built into the router, you can also see live video on the LCD! The LCD also has menus so it lets you change router settings.
Features Full SDI Re'Clocking
Videohub includes built in SDI re-clocking on every SDI input. SDI re-clocking regenerates the video signal for maximum video quality. This is extremely important because longer video cables degrade the signal. Expensive premium "digital" cables can help a little, but still cannot eliminate signal integrity loss due to cable lengths getting longer. With SDI re-clocking all of the SDI devices in your studio receive a regenerated signal with improved jitter performance. That means longer cable lengths, and no drop outs in your video.
Get Router Control on Mac, Windows and iPad
If you need external router control that's affordable, then Videohub Software Control is perfect because it can be downloaded free! Videohub Software Control is available for both Mac and Windows, so you can run it on the computers you're already using for creative work. The software features large buttons that are easy to press. Each button can be customized to a router input, a router output, and has an icon assigned to help you identify it visually. The big buttons are great for use on a touchscreen PC, where the software becomes a large screen XY control panel! You can even download a version of the software for the Apple iPad!
Features
Built in re-synchronizers on all inputs allows clean switching between all video sources of the same video standardSupports 12 inputs and 12 outputs in virtually all SD, HD and Ultra HD video formatsSupports multiple formats on the same router at the same time and will clean switch between multiple formats that match the reference frame rate when the switching is between the same video standardIncludes front panel button and spin knob routingLCD for routing display and video monitoringRemote Ethernet control
Specifications

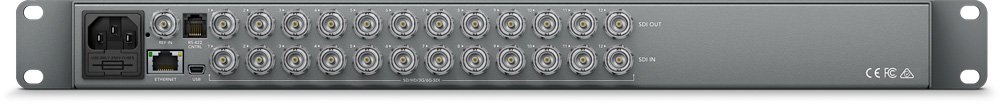

Connections
SDI Video Inputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Outputs
12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Rates
270Mb, 1.5G, 3G, 6G.
Video Input Re-Sync
On all 12 inputs for clean switch.
SDI Reclocking
On all SDI outputs.
Reference Input
Tri-Sync or Black Burst.
Control Panel Connection
Ethernet.
Serial Control Connection
RJ-6 RS-422.
Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
Updates
USB
Front Panel Router Control
12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Router Configuration
Via front panel LCD or RJ45 Ethernet.
RS-422 Router Control
1 x input for controlling router crosspoint switching.
What's Included:
Smart Videohub CleanSwitch 12x12
Welcome wallet with QR code for software download
