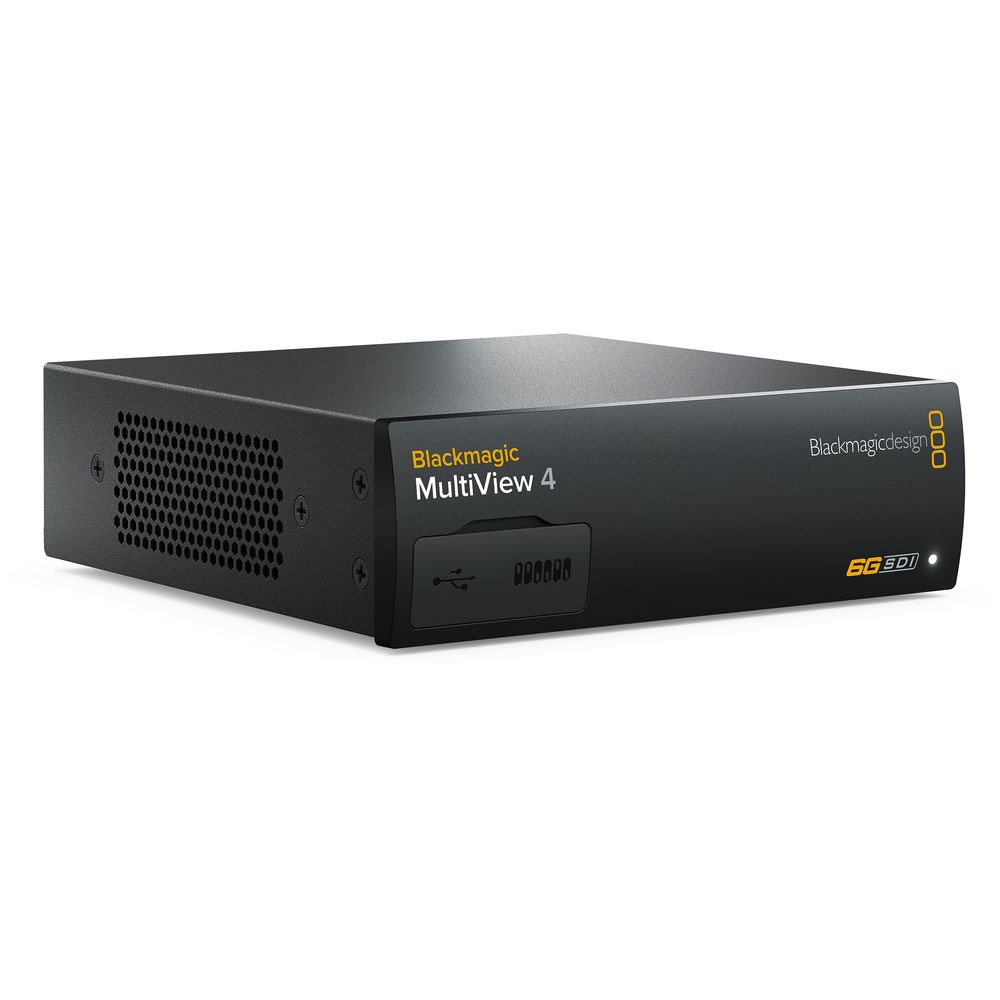

Blackmagic Design MultiView 4
UPC/EAN #9338716003888
MPN #HDL-MULTIP6G/04
Multi-view monitoring box with 4 6G-SDI inputs, 6G-SDI/HDMI outputs, loopback, Ethernet control, and USB
Now you can monitor multiple SDI sources on an HD or Ultra HD display or TV!
Blackmagic MultiViews are the world?s first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re'synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!

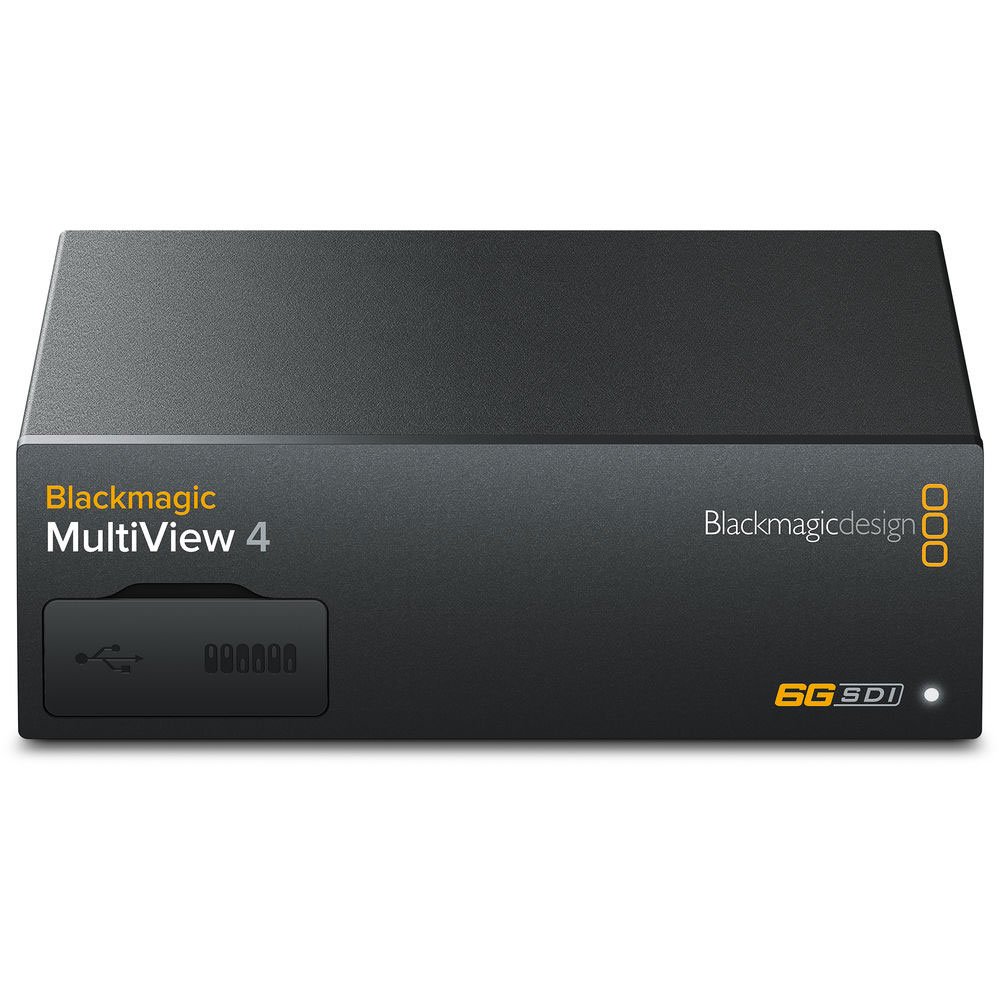

MultiView 4
The easiest SD, HD and Ultra HD multi view you'll ever use!
Blackmagic MultiView 4 has four independent 6G'SDI inputs that work with all SD, HD and Ultra HD formats up to 2160p30. The included Ethernet remote control software lets you turn on audio meters, select audio to output, and create custom labels. MultiView 4 displays your sources in a standard 2x2 grid. You can also add a Teranex Mini Smart Panel for full front panel control and rack mount it using the optional Teranex Mini Rack Shelf!
Studio or Live Use!
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don?t have room for multiple monitors. With Blackmagic MultiViews you don?t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!
Independent Monitoring
Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re'synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one!
High Resolution Monitoring
All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!
Advanced Monitoring Tools
Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.
Multi Rate SDI Connections
Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment. The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.
Flexible Design!
The tough metal mini converter style design of MultiView 4 HD makes it perfect for use on the road or in tough broadcast environments. Simply plug in your sources and start monitoring! The MultiView 4 works with HD or Ultra HD and features a Teranex Mini style design which means you can use it rack mounted or on a desktop. You can add an optional front panel or use Ethernet for more control options. MultiView 16 is designed for larger setups in which you need to view more sources on the same screen. You get router style front panel controls, a spin knob and LCD screen that make it fast to adjust settings, add overlays, and quickly route any source to any view on the grid!
Multi MultiViews
lackmagic MultiView 4 handles 4 sources in an incredibly compact size, however if you have more sources, you can combine multiple MultiViews together to create customized displays! Simply daisy chain two together by connecting the output of one MultiView 4 to one of the inputs on another. That means you can now monitor seven sources at once, all on the same display! There?s no limit to how many units you can combine together to create your own customized display!
Optional Front Panel Controls
Blackmagic MultiView 4 works with the optional Teranex Mini Smart Panel so you can add front panel controls to your MultiView 4! Installation is as simple as swapping the front panel and, once installed, it?s even easier to set up and adjust settings on the fly! The Smart Panel features dedicated buttons, a built in LCD screen and a spin knob so you can turn on custom labels, audio meters, borders, tally and more! You can even adjust settings such as the IP address and output video format right from the front panel!
Teranex Mini Size
MultiView 4 is the same size as Blackmagic Design?s Teranex Mini range of 12G-SDI converters. This means you can use the Teranex Mini Rack Shelf for rack mounting the MultiView 4 and even combine multiple MultiView 4 models on the same rack shelf, or combine with a mix of Teranex Mini converters and MultiViews. The choice is yours! If you are in critical broadcast environments where you need to be able to change settings at any time then you can also add the Teranex Mini Smart Panel. This gives you full access to all MultiView 4 settings in easy to use graphical menus that are simpler and faster to use than the switches on the default panel.
Features
Built-In Multi-Voltage Power Supply1 RU Height Machined Aluminum ChassisEthernet for Remote ControlStandard 2x2 ConfigurationIndependent Inputs Allow Mixing FormatsSupports SD, HD, UHD 4K, DCI 4K1x SDI & 1x HDMI MultiView Outputs4x 6G-SDI Inputs with Loop OutputsAccepts 48 VDC PoE+
Specifications
Connections

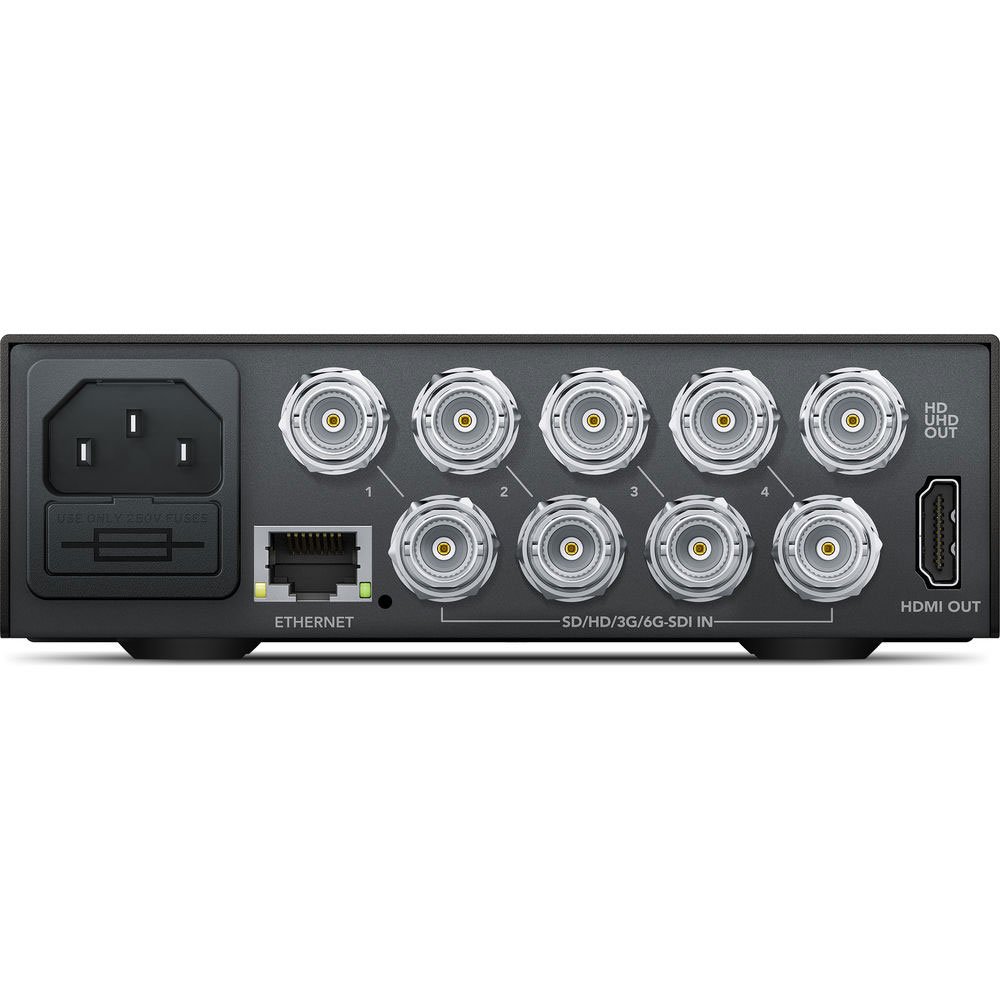

SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G'SDI.SDI Video Outputs: 4 loop, 1 HD/Ultra HD.SDI Rates: 270Mb, 1.5G, 3G, 6G.SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G'SDIHDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G'SDI video.Reference Input: NoneMulti Rate Support: Auto detection of SD, HD or 6G'SDI. Simultaneous viewing of 4K, HD and SD video.Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet.Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PALHD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i602K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsFUltra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p304K Video Standards: 4K DCI 24pSDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU'R BT.656 and ITU'R BT.601.Audio Meters: Each view, VU standard.Source Routing: NoneSDI Video Sampling: 4:2:2SDI Audio Sampling: Television standard sample rate of 48kHz and 24'bit.SDI Color Precision: 10-bit 4:2:2SDI Color Space: YUVSDI Auto Switching: Automatically selects between SD'SDI, HD'SDI, and 6G'SDI on each input so that each input can be running a different television standard.SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel: None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.External Control Panel: None
Display
Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.
Software
Software Control: MultiView software included free for Windows? and Mac?.Internal Software Upgrade: Via included updater application.
Power Requirements
Power Supply: IEC power cable required, 100 ' 240V AC input.Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on.Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)Power Consumption: 16 Watts
Environmental Specifications
Operating temperature: 0° to 40° C (32° to 104° F)Storage temperature: -20° to 45° C (-4° to 113° F)Relative Humidity: 0% to 90% non-condensing
What's Included
Blackmagic MultiView 4Welcome wallet with QR code for software download
