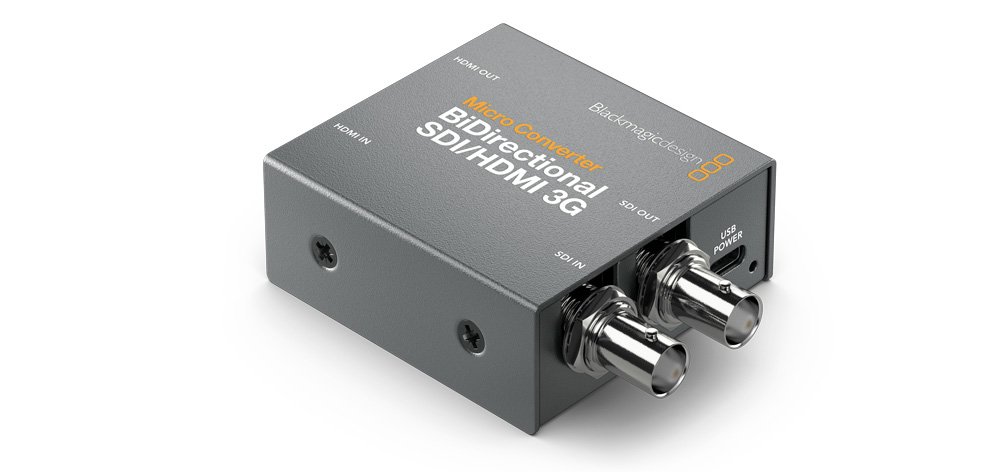

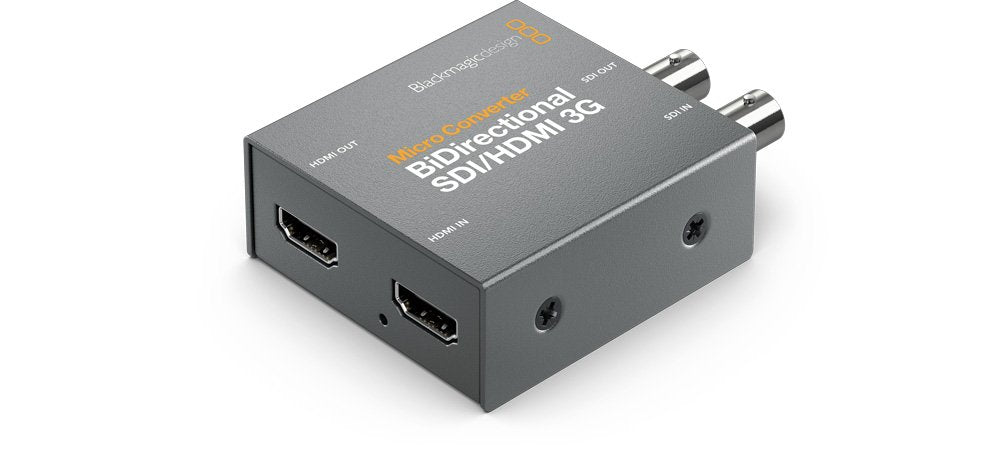

Blackmagic Design Micro Converter BiDirect SDI/HDMI 3G wPSU
UPC/EAN #9338716006995
MPN #CONVBDC/SDI/HDMI03G/P
Miniaturized broadcast bidirectional video converter for SDI to HDMI and HDMI to SDI compatible with SD and HD video formats
The world's smallest USB powered broadcast converters!
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.
Pocket sized broadcast quality converters!
Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them to turn any computer display, television or video projector into a high quality color calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending HDMI long distances using SDI.
Precision engineered broadcast grade converters!
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.
Get the world's smallest bidirectional broadcast quality converter! Convert SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers!
Features
Compatible with SD and HD video formatsPower supply includedAll metal durable design
Specifications
Connections
SDI Video Inputs
1 x SD, HD or 3G-SDI.
SDI Video Outputs
Automatically matches the HDMI video input.
HDMI Video Inputs
HDMI Type A in.
HDMI Outputs
HDMI Type A out.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
USB Type'C.
Reclocking
Yes
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
