4K disk recorder with 12G-SDI, HDMI connections, H.264 for SD and HD, H.265 for Ultra HD, and 10G Ethernet

Professional broadcast decks that record and playback using SD cards and SSD media!
HyperDeck Studio lets you record broadcast quality video files directly onto SD cards and SSD media! The new redesigned HyperDeck Studios feature modern design with more codecs and quieter cooling. All models now support recording to H.264, Apple ProRes or DNxHD files with either PCM or AAC audio. Plus the 4K model adds support for H.265 files! When you've finished recording, media can be mounted on any computer to access the files using your favorite video software. For ISO recording, there's even built in timecode and reference generators for syncing multiple units! All of these powerful features make HyperDeck Studio perfect for broadcast, live production or multi screen digital signage!

Elegantly Designed Professional Broadcast Deck

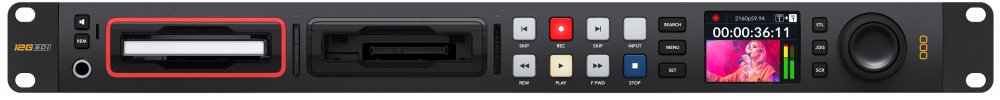

The new HyperDeck Studio recorders have been totally redesigned with dozens of new features! The advanced models have new broadcast style front panel controls and more connections on the rear panel. The LCD screen supports both light and dark modes, plus the transport control buttons are stronger with a firm professional feel. The Pro models feature a machined metal search dial with increased mass and a soft rubber surface that feels nice to the touch. Plus the search dial features an active clutch, just like a traditional broadcast deck! With dual media slots, you can change cards without interrupting recording! The advanced models even include a front headphone connection and speaker!

4 Great HyperDeck Models!
There are 4 different models of HyperDeck Studio, perfect for all types of work! The 3G-SDI based HD Mini model records and plays H.264, ProRes or DNxHD files onto SD cards, UHS-II cards or external USB disks in SD and HD formats up to 1080p60. The larger HD Plus model adds better transport controls, front panel headphone and speaker, 6G-SDI with fill and key out, SDI monitoring and records H.264 up to 1080p60 or ProRes and DNxHD up to 2160p30. The full rack HD Pro model is the same as the HD Plus model but adds 2 SSD slots and a machined metal search dial with clutch. The incredibly powerful 4K Pro model records H.264, H.265, ProRes or DNx in SD, HD and Ultra HD in standards up to 2160p60!

For extreme power, the HyperDeck Studio 4K Pro has all the features of the HD models, combined with incredible processing for working in Ultra HD. This model's SDI has been upgraded to full 12G-SDI with a loop 12G-SDI output. The two SDI outputs are both 12G-SDI so you can play ProRes 4444 files for true Ultra HD fill and key out. The HDMI connections and the ProRes and DNx file formats all switch between SD, HD and Ultra HD television standards. Like the other models, H.264 is included for SD and HD, but then switches to H.265 when recording in Ultra HD. Even the networking has been upgraded to 10G Ethernet for incredible speed! You also get 2 redundant AC power supplies!
  • 12G-SDI I/O with a loop 12G-SDI output
  • HDMI connections
  • H.264 for SD and HD
  • H.265 for Ultra HD
  • 10G Ethernet
  • 2 redundant AC power supplies
  • SDI Video Inputs

    SDI Video Outputs

    SDI Monitor Outputs

    SDI Rates
    270Mb, 1.5G, 3G, 6G, 12G.

    HDMI 2.0 Video Inputs

    HDMI 2.0 Video Outputs

    Built in Speaker

    Audio Output
    1 x 6.35 mm headphone jack.

    2.2 inch LCD.

    Timecode Connections
    1 x XLR In, 1 x XLR Out.

    Reference Connections
  • 1 x BNC In, 1 x BNC Out
  • Tri-Sync or Black Burst

  • SDI Audio Inputs
    16 channels embedded audio.

    SDI Audio Outputs
    16 channels embedded audio.

    HDMI Audio Inputs
    8 channels embedded audio.

    HDMI Audio Outputs
    8 channels embedded audio.

    Remote Control
    1 x RS-422 In, 1 x RS-422 Out.

    Recorder Configuration
    Via user interface or Blackmagic HyperDeck Ethernet Protocol.


    Computer Interface
    1 x USB Type-C 3.1 Gen 2 (up to 10Gb/s) for external drive recording, webcam out, software configuration and updates.
