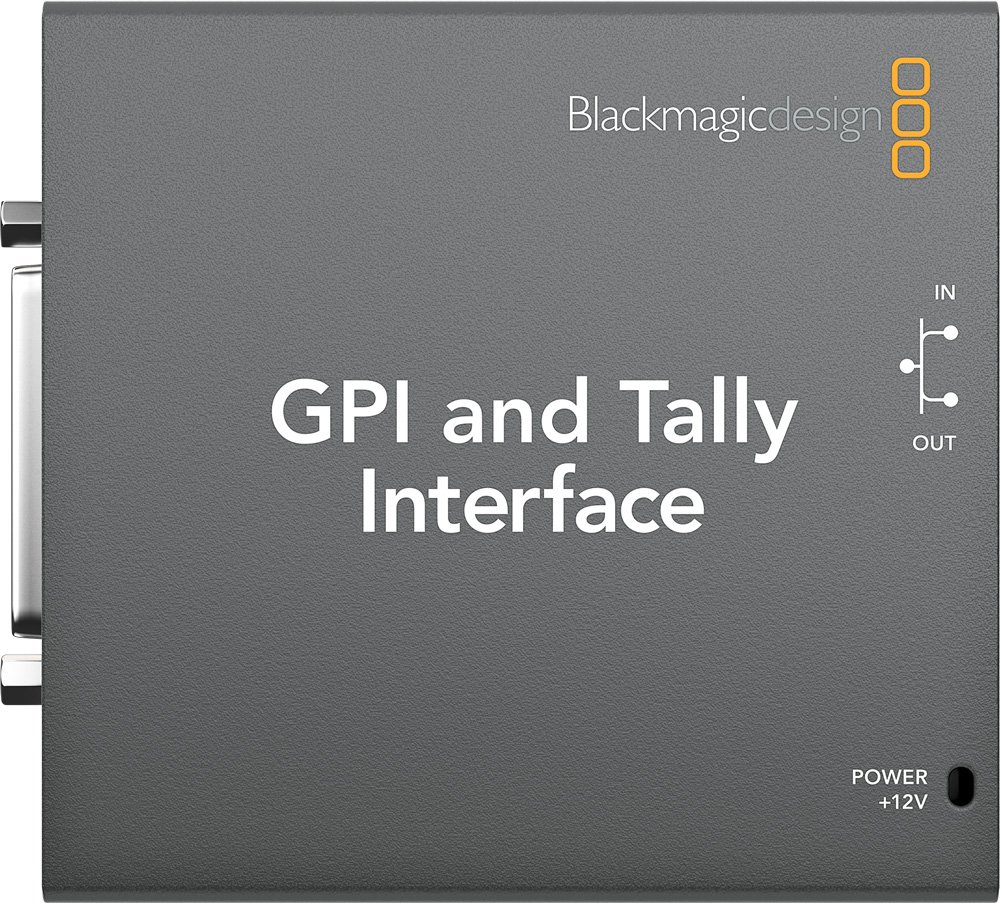

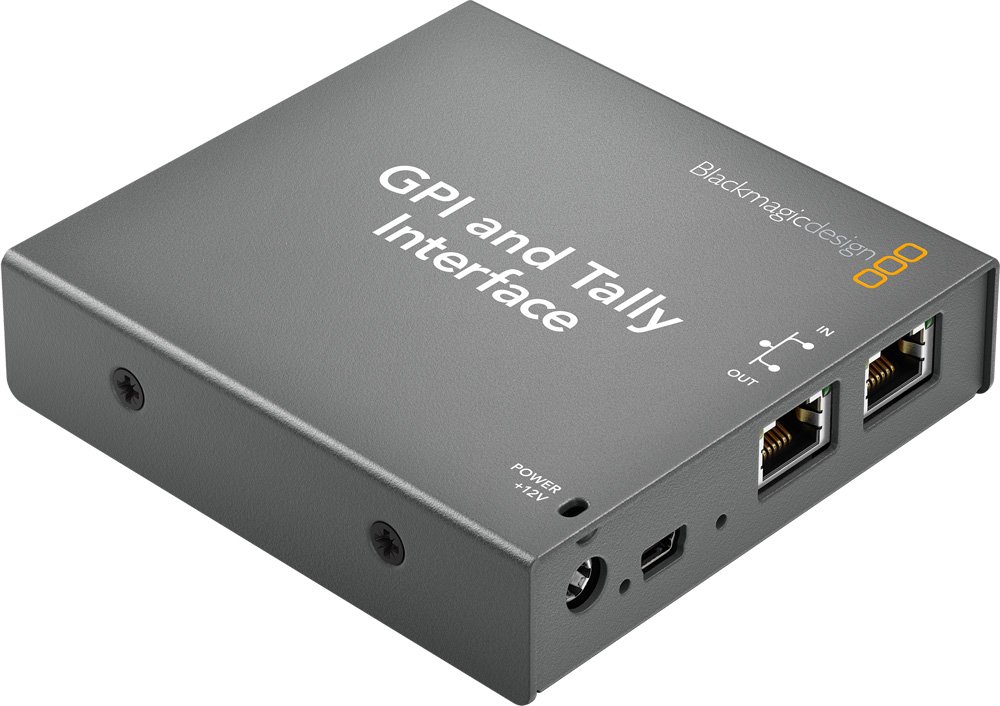

Blackmagic Design GPI and Tally Interface
UPC/EAN #9338716001327
MPN #SWTALGPI8
GPI and Tally interface for ATEM switchers and Videohub routers with 8 contact closure inputs and outputs
Add tally to your ATEM switcher with Blackmagic Design's GPI and Tally Interface! With 8 contact closure tally outputs, you can send a tally signal to your cameras, replay machines and monitors so everyone knows which camera is 'on-air'! If you need more tally outputs, simply connect multiple GPI and Tally Interfaces together because it connects via Ethernet to your ATEM production switcher.
Specifications
Connections
Contact Closure

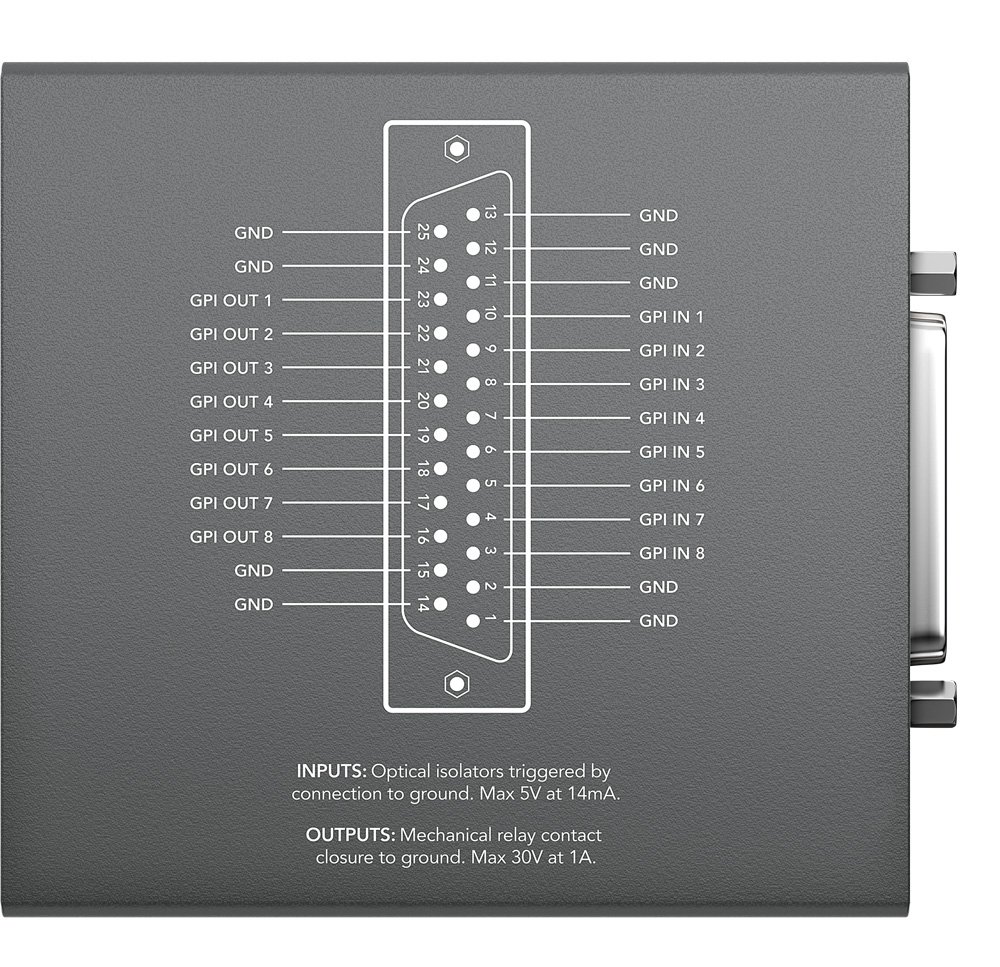

25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
Computer Interface
1 x USB 2.0 high speed interface for configuration and firmware updates.
Inputs
Optical isolators triggered by connection to ground. Max 5V at 14mA.
Outputs
Mechanical relay contact closure to ground. Max 30V at 1A.
Ethernet
10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
What's Included:
GPI and Tally Interface
Software CD
Power Supply
