Blackmagic Design ATEM SDI
4-input live switcher with standards converted 3G-SDI inputs,USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, and DVE for picture in picture
Introducing ultra portable live production with advanced broadcast features
ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!
A New Generation of Ultra Portable Live Production!
ATEM SDI gives you the portable design of ATEM Mini, but its SDI connections means you can connect advanced broadcast quality cameras and recorders. This opens up a whole new world of ultra portable live production. The incredibly portable design means you can fit a whole broadcast quality live production system in a small bag or even a backpack! You can use multiple cameras on location and live stream direct to YouTube, or create a broadcast quality link back to a studio with ATEM Streaming Bridge. Unlike single camera remote shoots, ATEM SDI lets you connect multiple cameras so you can create interesting remote interviews with multiple camera angles.
Self Contained Broadcast Quality Switcher

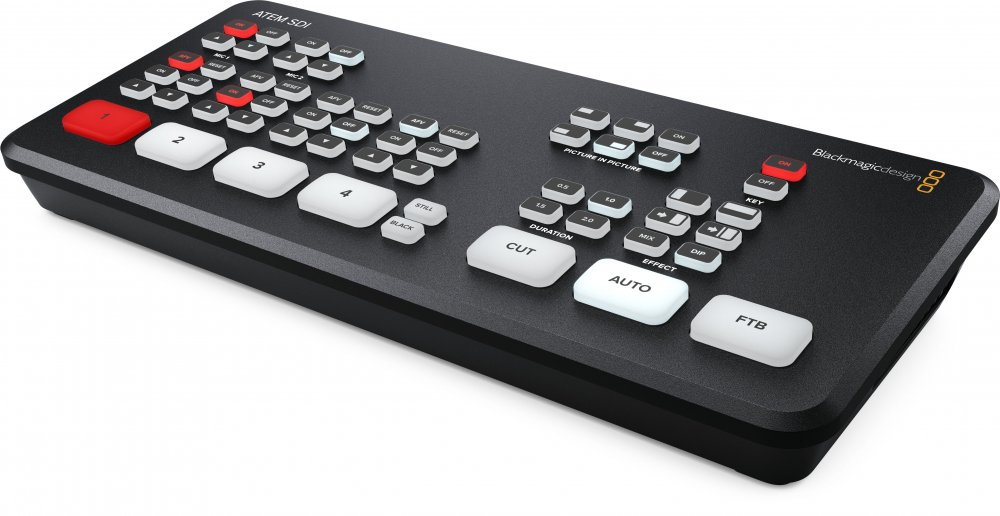

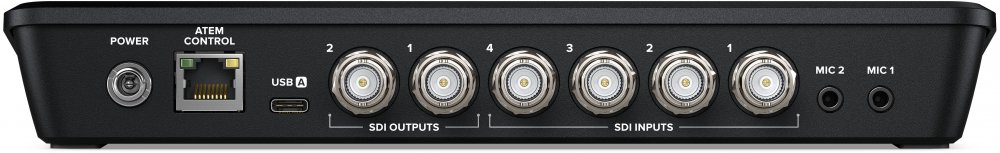

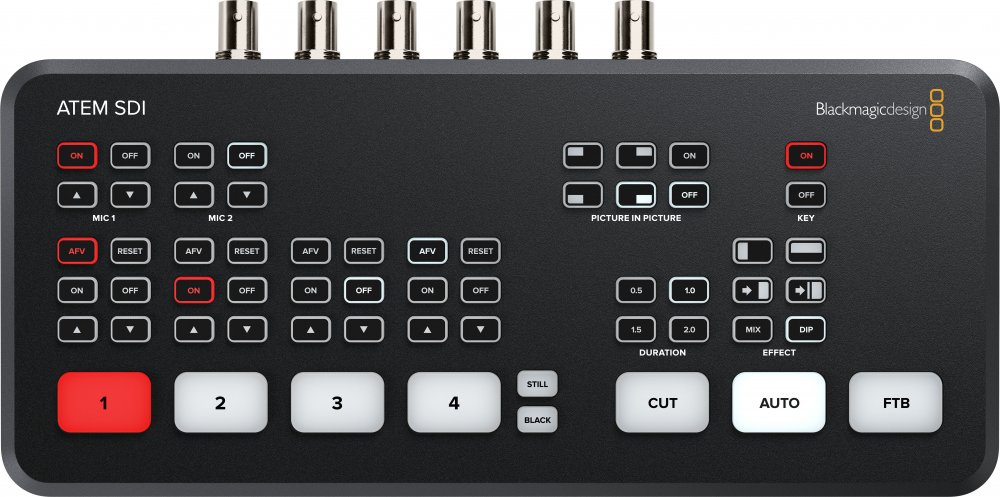

ATEM SDI?s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it?s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! The ATEM SDI Pro and Extreme models have buttons for recording and streaming control, as well as output selection buttons that let you change the video output between program, direct camera feeds and the multiview. On the rear panel there are SDI connections for cameras, extra microphone inputs, USB for webcam plus multiple SDI "aux" outputs for program video.
4 standards converted SDI inputsUSB webcam2 SDI outputsFairlight audio mixer with EQ and dynamicsDVE for picture in pictureTransition effectsGreen screen chroma key20 stills media pool for titles and free ATEM Software Control
Total Video Inputs
Total Aux Outputs
Total Audio Inputs
2 x 3.5mm stereo mini jack
Total Audio Outputs
None, embedded audio only
SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable
2 channel embedded audio
Video Input Re-Sync
On all 4 SDI inputs
Frame Rate and Format Converters
On all 4 SDI inputs
SDI Program Outputs
Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connection
1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection
