Blackmagic Design ATEM SDI Pro ISO
UPC/EAN #9338716007954
MPN #SWATEMMXEPBPRISO
4-input live switcher with standards converted 3G-SDI inputs, built in streaming and recording to 5 video streams in real time, and Fairlight audio mixer with EQ and dynamics
Introducing ultra portable live production with advanced broadcast features
ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!
A New Generation of Ultra Portable Live Production!
ATEM SDI gives you the portable design of ATEM Mini, but its SDI connections means you can connect advanced broadcast quality cameras and recorders. This opens up a whole new world of ultra portable live production. The incredibly portable design means you can fit a whole broadcast quality live production system in a small bag or even a backpack! You can use multiple cameras on location and live stream direct to YouTube, or create a broadcast quality link back to a studio with ATEM Streaming Bridge. Unlike single camera remote shoots, ATEM SDI lets you connect multiple cameras so you can create interesting remote interviews with multiple camera angles.
Self Contained Broadcast Quality Switcher

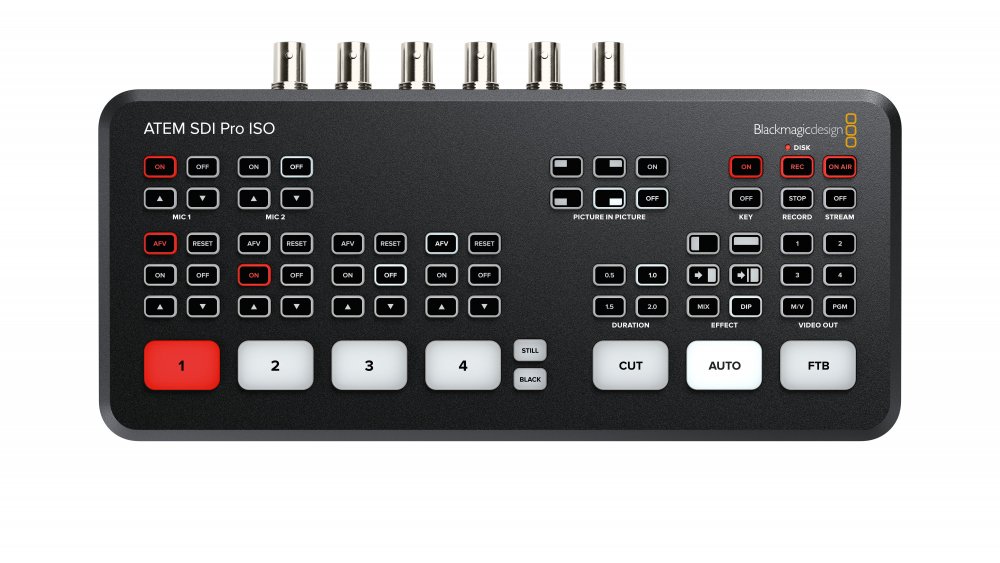

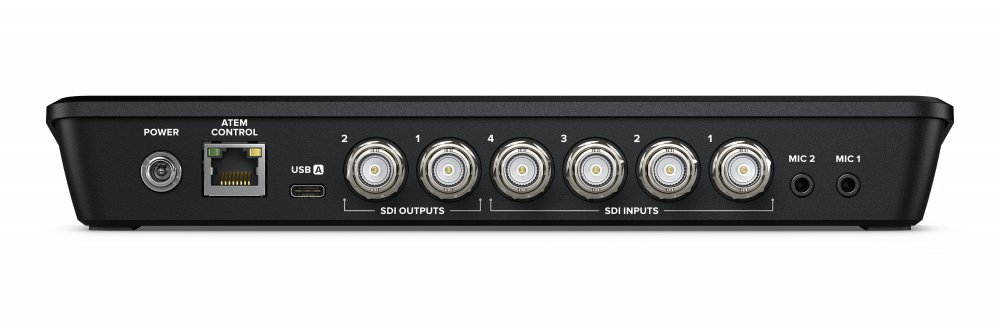

ATEM SDI's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! The ATEM SDI Pro and Extreme models have buttons for recording and streaming control, as well as output selection buttons that let you change the video output between program, direct camera feeds and the multiview. On the rear panel there are SDI connections for cameras, extra microphone inputs, USB for webcam plus multiple SDI "aux" outputs for program video.
Features
4-Channel Live Stream 3G-SDI SwitcherRecord Button, Channel Preview Multiview3G-SDI Output, Ethernet ATEM Control2-Channel Digital Audio Mixer per SourceDVE Transition, Chroma/Luma KeyersProgram and 4 x Input ISO Recording
Specifications
Connections
Total Video Inputs: 4Total Outputs: 3Total Aux Outputs: 2Total Audio Inputs: 2 x 3.5mm stereo mini jackTotal Audio Outputs: None, embedded audio onlyTimecode Connection: NoneSDI Video Inputs: 4 x 3G-SDI, 10-bit HD switchable, 2 channel embedded audioVideo Input Re-Sync: On all 4 SDI inputsFrame Rate and Format Converters: On all 4 SDI inputsSDI Program Outputs: 2Ethernet: Ethernet supports 10/100/1000 BaseT software control, software updates and direct or network panel connectionComputer Interface: 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection
Standards
HD Video Input Standards: 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Ultra HD Video Standards: NoneVideo Sampling: 4:2:2 YUVColor Precision: 10-bitColor Space: Rec 709Colorspace Conversion: Hardware based real time
Product Specifics
Upstream Keyers: 1Downstream Keyers: 1Advanced Chroma Keyers: 1Linear/Luma Keyers: 2Transition Keyer: DVE onlyTotal Number of Layers: 5Pattern Generators: 1Color Generators: 2DVE With Borders and Drop Shadow: 1Interface: Minimum monitor resolution of 1366 x 768
Audio
Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channeléLevel and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain controlAnalog Input: Unbalanced stereoAnalog Input Delay: Up to 8 framesInput Impedance: 1.8kMax Input Level: +6dBVMic Plug In Power: Available on both 3.5mm mini jack connections
Media Player
Media Players: 1Channels: Fill and key for each Media PlayerMedia Pool Still Image Capacity: 20 with fill and keyMedia Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF
Control
Control Panel: Built in control panel. Software control panel included. Supports optional hardware panelControl Panel Connection: Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connectionControl Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast PanelControl Panel Included: ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11
Power Requirements
Power Supply: 1 x External 12V power supplyPower Usage: 18W
Environmental Specifications
Operating Temperature: 5 C to 40 C (41 - 104 F)Storage Temperature: -10 to 60 C (14 to 140 F)Relative Humidity: 0% to 90% non-condensing
What's Included
ATEM SDIExternal 12V DC power supply with international socket adapters
