Blackmagic Design ATEM Production Studio 4K
UPC/EAN #9338716001976
MPN #SWATEMPSW04K
Professional switcher with chroma key, transitions, media pool, downstream keyers, audio mixer, multi view, 6G-SDI and HDMI 4K video connections
The World's Most Advanced Live Production switchers!
Create stunning multi camera live production with the world's most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!
Creative features with advanced technology
Take your live production beyond broadcast quality! ATEM live production switchers have all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM live production switcher to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!
Elegant machined metal design in a super compact size!

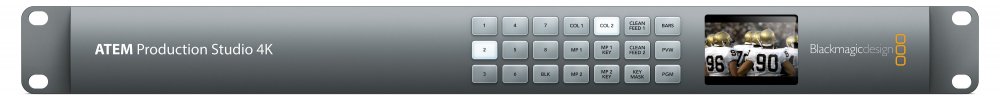

ATEM live production switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies so you can take your switcher anywhere in the world!

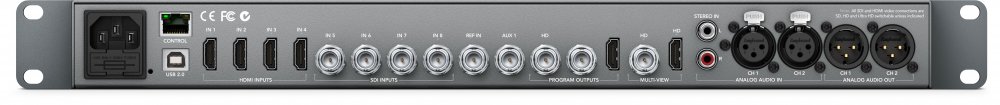

ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.
Features
Chroma keyTransitionsMedia poolDownstream keyersAudio mixerMulti view6G-SDI and HDMI 4K video connections
Specifications
Total Video Inputs
8
Total Video Outputs
6
SDI Rates
270Mb, 1.5G, 3G, 6G.
Total Audio Inputs
2 x XLR. 2 x RCA.
Total Audio Outputs
2 x XLR Program.
Timecode Connections
None
SDI Video Inputs
4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Video Input
4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
SDI Audio Outputs
2 channel embedded into SDI output.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 8 inputs.
SDI Program Outputs
1 x 10-bit SD/HD/Ultra HD 4K switchable.
HDMI Program Outputs
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
Down Converted SDI Program Outputs
1 x 10-bit HD (Ultra HD 4K to HD).
SDI Aux. Output
1
Total Multi Views
1
SDI Multi View Outputs
1
HDMI Multi View Outputs
1
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
