UPC/EAN #9338716006872     MPN #SWATEMMINIBPRISO

$715.00

Financing available
Free shipping in Canada. Conditions

4-input live switcher with 2D DVE, audio mixer with EQ and dynamics, and built in hardware streaming engine for YouTube Live, Facebook, Twitch and more



Introducing low cost, multi camera, live production with advanced broadcast features.

ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Zoom, Teams or Skype! Simply connect ATEM Mini and you can switch live up to 8 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! ATEM Mini has a built in hardware streaming engine for live streaming via ethernet, or stream via the USB which also works like a webcam. ATEM Mini even has secret broadcast features for high end work!

Faster Video Production plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. ATEM Mini models feature a built in hardware streaming engine, which works with any streaming software so you can directly stream via ethernet to popular social media platforms! With up to 8 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more!

Self Contained Broadcast Quality Switcher

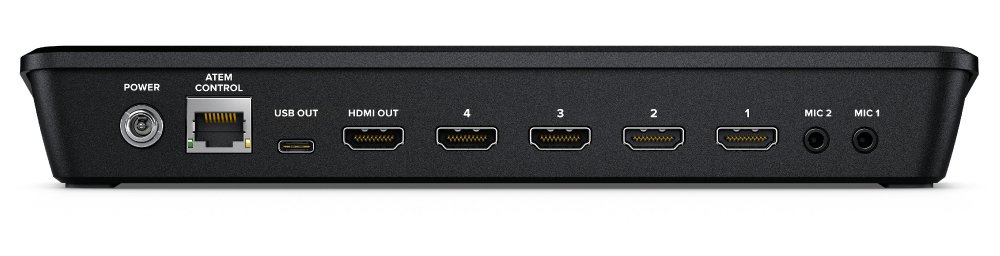

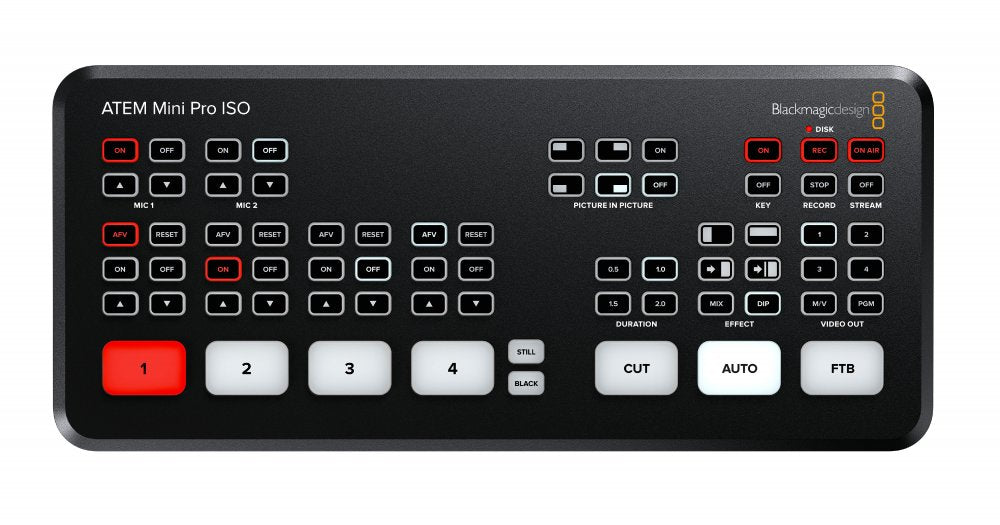

ATEM Mini's compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it's possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing! You also get buttons for record and streaming control, as well as output selection buttons that let you change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers or even gaming consoles, extra microphone inputs, USB for webcam out plus an HDMI "aux" output for program video.

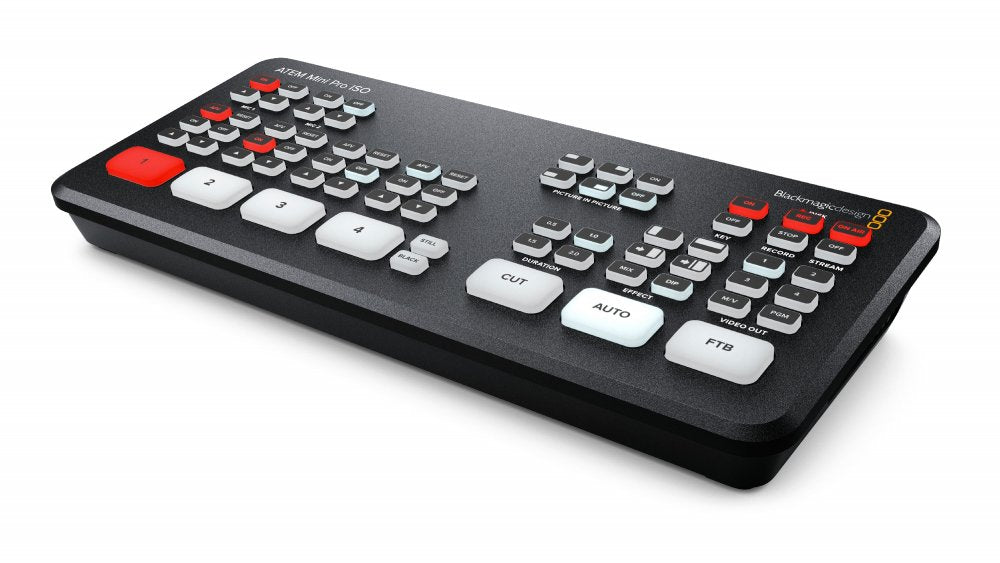

ATEM Mini Pro ISO

This model has the features of ATEM Mini Pro plus 5 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.
  • Program and 4 x Input ISO Recording
  • HDMI Output, Ethernet ATEM Control
  • Media Player, Computer Input Support
  • Live Tally, Stream and Record Status
  • 4-Channel Live Stream HDMI Switcher
  • DVE Transition, Chroma/Luma Keyers
  • 2-Channel Digital Audio Mixer per Source
  • Connections
  • Total Video Inputs: 4
  • Total Outputs: 2
  • Total Aux Outputs: 1
  • Total Audio Inputs: 2 x 3.5mm stereo mini jack
  • Total Audio Outputs: None, embedded audio only.
  • Timecode Connection: None
  • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable, 2 channel embedded audio
  • Video Input Re-Sync: On all 4 HDMI inputs
  • Frame Rate and Format Converters: On all 4 HDMI inputs.
  • HDMI Program Outputs: 1
  • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection
  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection

  • Standards
  • HD Video Input Standards: 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD Video Standards: None
  • Video Sampling: 4:2:2 YUV
  • Color Precision: 10-bit
  • Color Space: Rec 709
  • HDMI Input Resolutions from Computers: 1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz
  • Colorspace Conversion: Hardware based real time

  • Product Specifics
  • Upstream Keyers: 1
  • Downstream Keyers: 1
  • Advanced Chroma Keyers: 1
  • Linear/Luma Keyers: 2
  • Transition Keyer: DVE only
  • Total Number of Layers: 5
  • Pattern Generators: 1
  • Color Generators: 2
  • DVE with Borders and Drop Shadow: 1
  • Interface: Minimum monitor resolution of 1366 x 768

  • Audio
  • Audio Mixer: 6 input x 2 channel mixer, Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel, Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control
  • Analog Input: Unbalanced stereo
  • Analog Input Delay: Up to 8 frames
  • Input Impedance: 1.8k
  • Max Input Level: +6dBV
  • Mic Plug In Power: Available on both 3.5mm mini jack connections

  • Streaming
  • Direct Streaming: ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB'C.

  • Recording
  • Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
  • Video Recording: 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio
  • Audio Recording: 6 x 2 channel audio inputs recorded as seperate 24'bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs
  • Switching: Program switching recorded as a DaVinci Resolve project .drp file
  • Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system

  • Multi View Monitoring
  • Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters
  • Multi View Video Standard: HD

  • Media Player
  • Media Players: 1
  • Channels: Fill and key for each Media Player
  • Media Pool Still Image Capacity: 20 with fill and key
  • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF

  • Control
  • Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel
  • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB'C connection. Ethernet or USB'C used for updating the software
  • Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro
  • Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

  • Environmental Specifications
  • Operating Temperature: 5 C to 40 C (41 - 104 F)
  • Storage Temperature: -10 to 60 C (14 to 140 F)
  • Relative Humidity: 0% to 90% non-condensing

  • What's Included
  • ATEM Mini Pro ISO
  • External 12V DC power supply with international socket adapters
