Blackmagic Design ATEM Mini Extreme ISO G2 switcher with 8 HDMI inputs
MPN #SWATEMMINICEXTISOG2
8 HDMI inputs, 3 HDMI outputs, ISO recording, built-in streaming, 10G Ethernet, Thunderbolt for replay, 6 DVEs, 4 chroma keyers, CFexpress and XLR audio.
The ATEM Mini Extreme ISO G2 is Blackmagic Design's most powerful compact HDMI live production switcher to date, purpose-built for professional-grade streaming, content creation, and real-time broadcasting. With 8 standards-converted HDMI inputs, this second-generation model brings robust functionality to live event setups, podcast studios, and mobile broadcasting units. Its expanded broadcast-style control panel includes premium buttons, a manual transition fader, and a dedicated audio mixer control area. Combined with advanced features like multi-view, 3 assignable HDMI outputs, built-in DVE, and ATEM Advanced Chroma Keyers, users can create polished, high-end productions right out of the box.
What really sets the ATEM Mini Extreme ISO G2 apart is its seamless integration into broader post-production workflows. It supports ISO recording of all 8 video inputs, complete with a saved DaVinci Resolve project for immediate editing. With Thunderbolt connectivity, it offers real-time capture, playback, and live replay via DaVinci Resolve, while 10G Ethernet transforms it into a shared network drive for fast access to CFexpress recordings. This model also includes XLR audio inputs, MADI audio input, a 16-window multiviewer, and up to 6 DVEs-making it a versatile switcher that combines live production with the power of post-production editing and effects in a highly portable form factor.
Features
Broadcast Control Panel Design: Features a compact, professional-style panel with high-quality buttons and fader.8 HDMI Inputs: Connect up to 8 sources, each with automatic standards conversion for seamless switching.3 HDMI Outputs: Route independently to monitors, recorders, or projectors for flexible output setups.ISO Recording: Records all 8 inputs as separate video files for post-production and replay.DaVinci Resolve Integration: Saves a full project file for one-click editing of your entire live production.Thunderbolt Connectivity: Supports live capture, playback, network access, and replay with a single cable.CFexpress Recording: Records directly to internal CFexpress memory or external USB drives.10G Ethernet Port: Enables fast media sharing over a network and turns the switcher into shared storage.Built-In Streaming Engine: Stream directly over Ethernet or tether to a phone for mobile streaming.Professional Audio Inputs: Includes XLR combo jacks and MADI input for high-quality multichannel audio.Multi-Layer Visuals: Use up to 6 DVEs and 4 chroma keyers for advanced picture-in-picture and green screen work.Multiview Monitoring: View all sources, program, and streaming status on a single display with 16-window multiview.Media Pool and Graphics: Store up to 200 frames of broadcast-quality animation and still graphics.Compatible With Editing Tools: Works with DaVinci Resolve, Final Cut Pro, Premiere Pro, After Effects, and more.Replay and Live Grading: Use DaVinci Resolve for live-action replay with slow motion and color grading.Expandable Audio Inputs: Add more microphones using the optional ATEM Microphone Converter via MADI.Camera Control Integration: Adjust camera settings directly or enhance with the ATEM Micro Camera Panel.Compact and Portable: Combines switching, control, recording, and replay in one powerful desktop unit.
Specifications
General Specifications
Second generation ATEM Mini live production switcherIntegrated broadcast-style control panelSupports streaming, ISO recording, replay, and editing workflowsDesigned for live streaming, studio production, and portable use
Video Inputs/Outputs

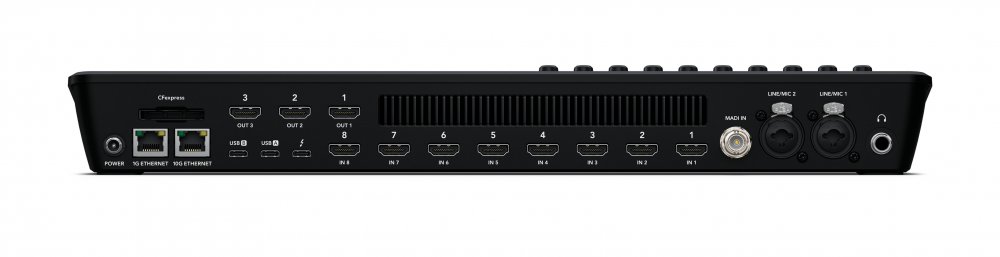

8 x HDMI 2.0 inputs with standards conversion3 x independent HDMI outputs (routable)Built-in USB webcam output for video conferencingThunderbolt port for live video capture, playback, and replay16-way multiview output for camera and status monitoring
Recording and Playback
Records all 8 HDMI inputs as separate ISO video filesProgram recording to internal CFexpress or external USB diskSaves DaVinci Resolve project file for one-click editingReplay support with Thunderbolt and DaVinci Resolve integrationNetwork accessible storage via 10G EthernetSync support with Blackmagic Cloud for collaborative post-production
Chroma Key and Effects
4 x upstream ATEM Advanced Chroma KeyersUp to 6 independent DVEs for picture-in-picture and effects200-frame animation support in media pool
Audio Features
2 x XLR combo audio inputs (XLR and 6.5mm)MADI audio input for up to 32 extra channelsFairlight audio mixer with HDMI status outputHeadphone socket for audio monitoringCompatible with ATEM Microphone Converter for audio input expansion
Camera Control
Built-in camera control for matching multiple camerasCompatible with ATEM Micro Camera Panel for broadcast-style CCU controlJoystick for iris and black level, RGB knobs for color tint adjustment
Connectivity and Networking
Thunderbolt connection with support for fill/key playback, capture/playback, and trickle power10G Ethernet for high-speed media access and file sharingUSB for recording, streaming, or network sharing
Software Compatibility
Supports DaVinci Resolve for replay, editing, and gradingCompatible with Final Cut Pro, Media Composer, Premiere Pro, Fusion, After Effects, and PhotoshopIncludes ATEM Software Control for Mac and Windows
Design and Interface
Combined control panel and switcher for portabilityPremium buttons and manual transition faderAudio mixer control area with live metering
